Component Location Index

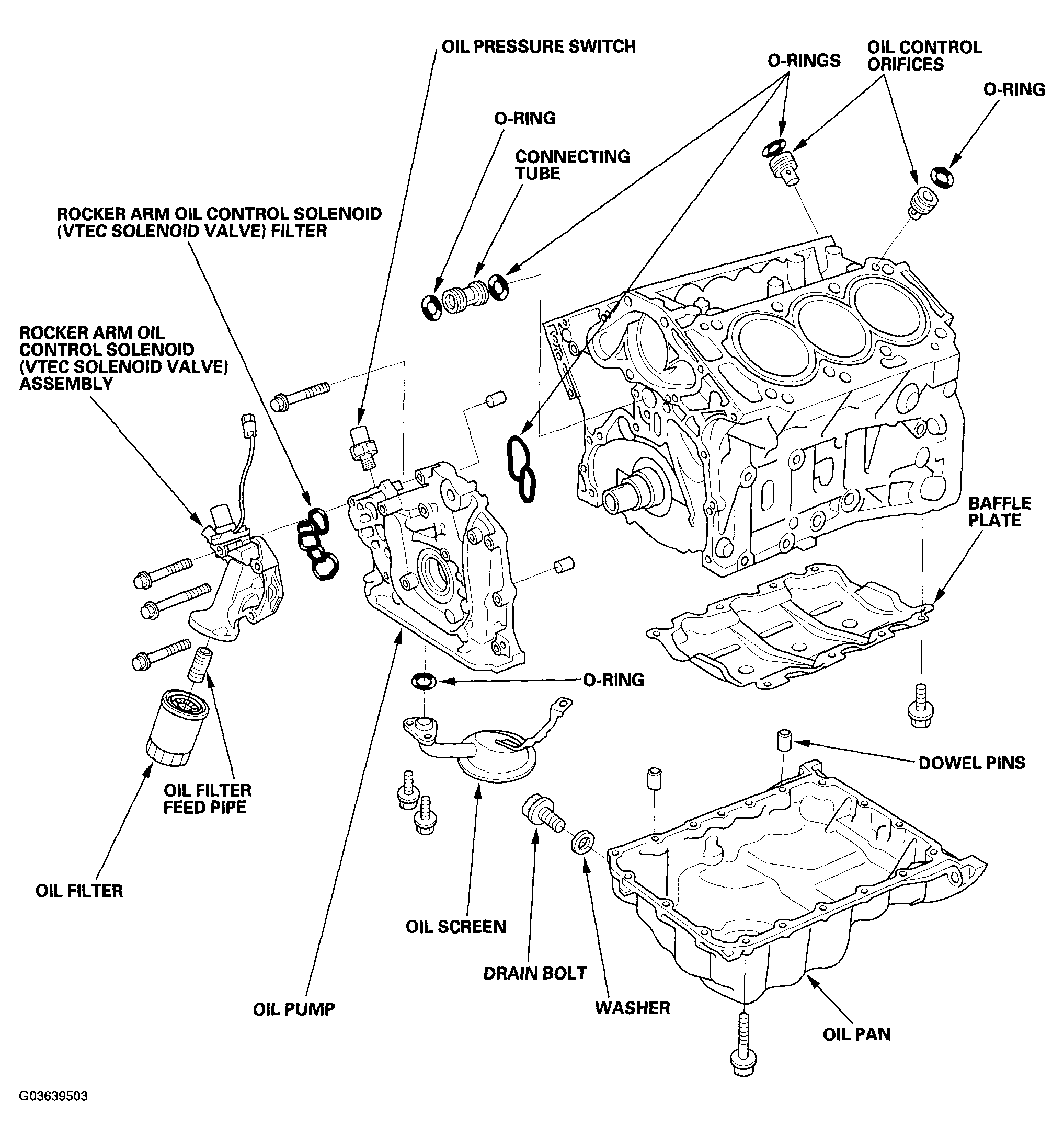

Fig 1: Identifying Engine Lubrication Components
G03639503Courtesy of AMERICAN HONDA MOTOR CO., INC.
