Panoramic Glass Roof Control Unit/Motor Connector End View
Panoramic Glass Roof Control Unit/Motor Connector End View

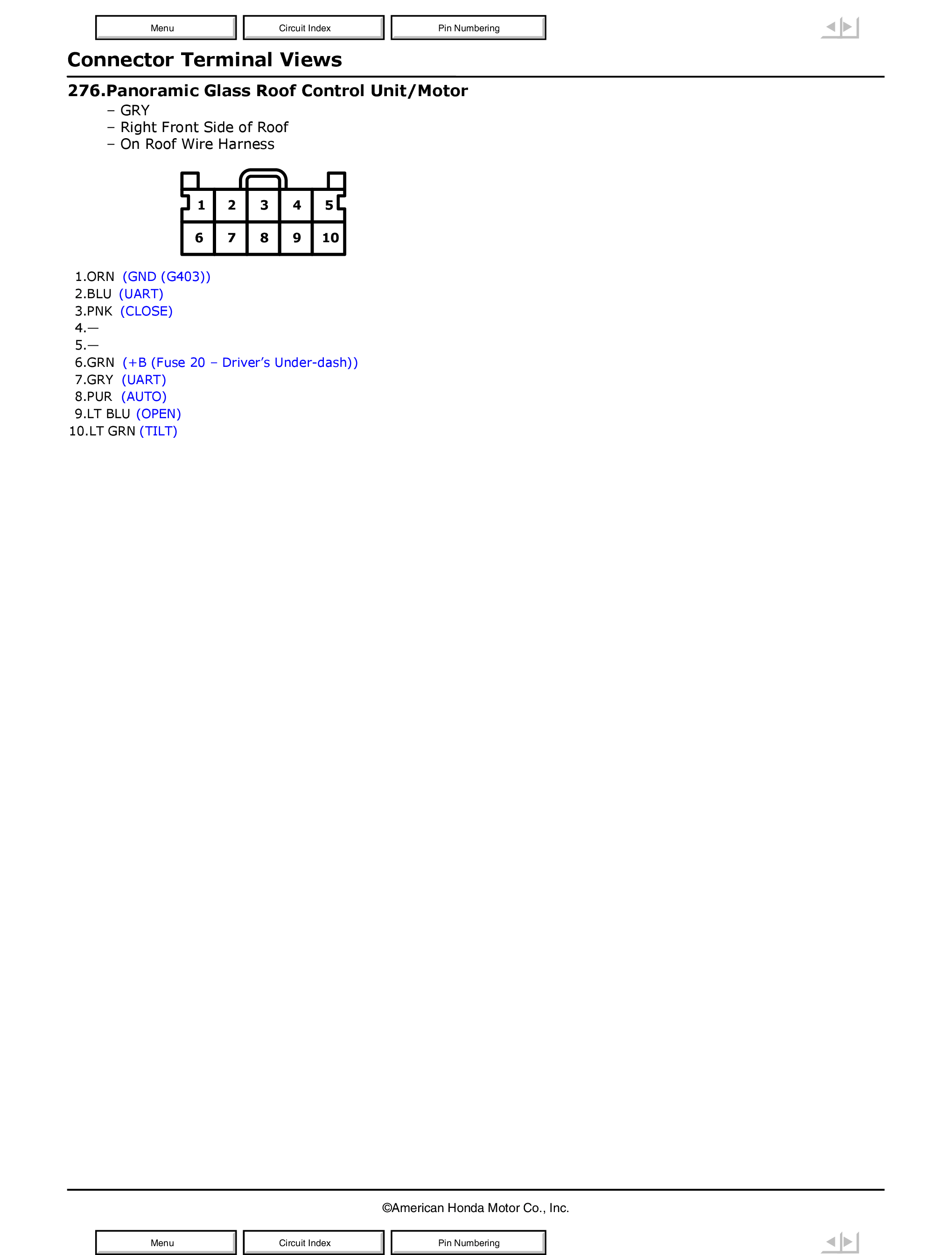

Fig 1: Panoramic Glass Roof Control Unit/Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

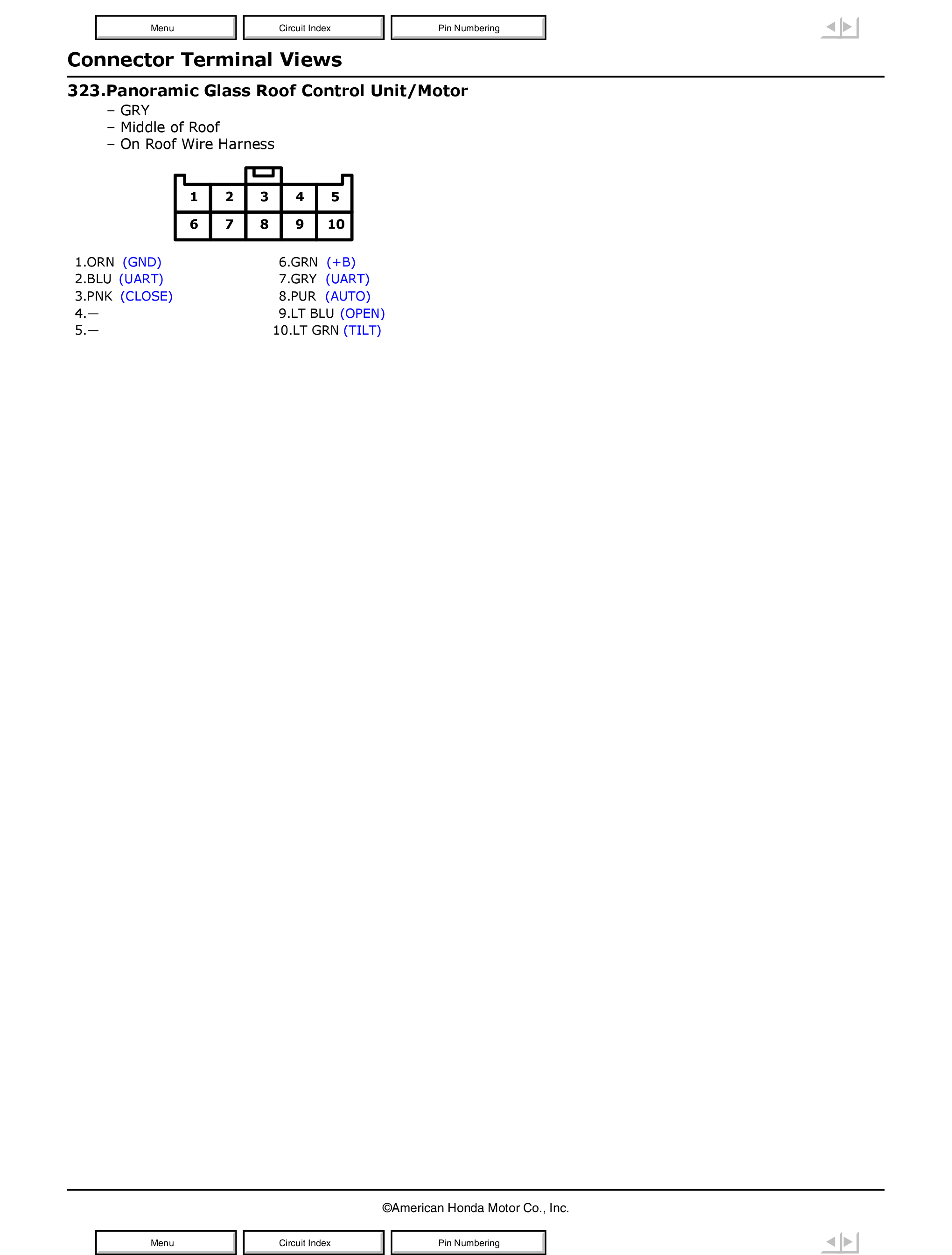

Fig 1: Panoramic Glass Roof Control Unit/Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
