61 21... Removing And Installing/Replacing Battery Cover

Necessary Preliminary Tasks:

• Remove flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Release screw (2).

Remove car jack (3).

Fold back battery cover (1) in direction of arrow.

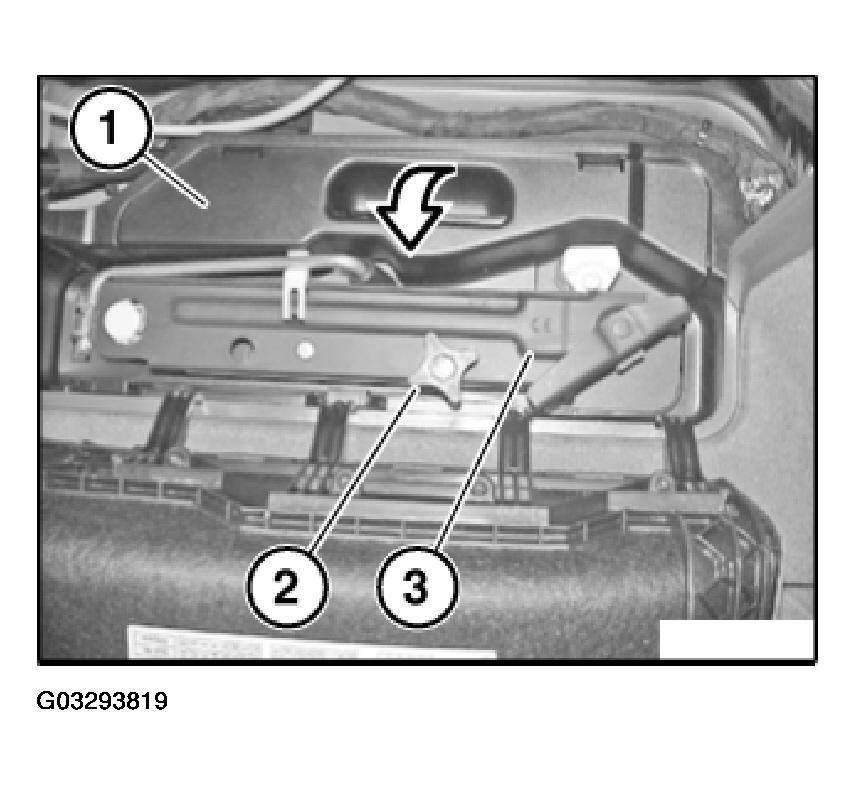

Fig 1: Screw, Car Jack, Battery Cover And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
