Navigation Signal Splitter Replacement
Navigation Signal Splitter Replacement

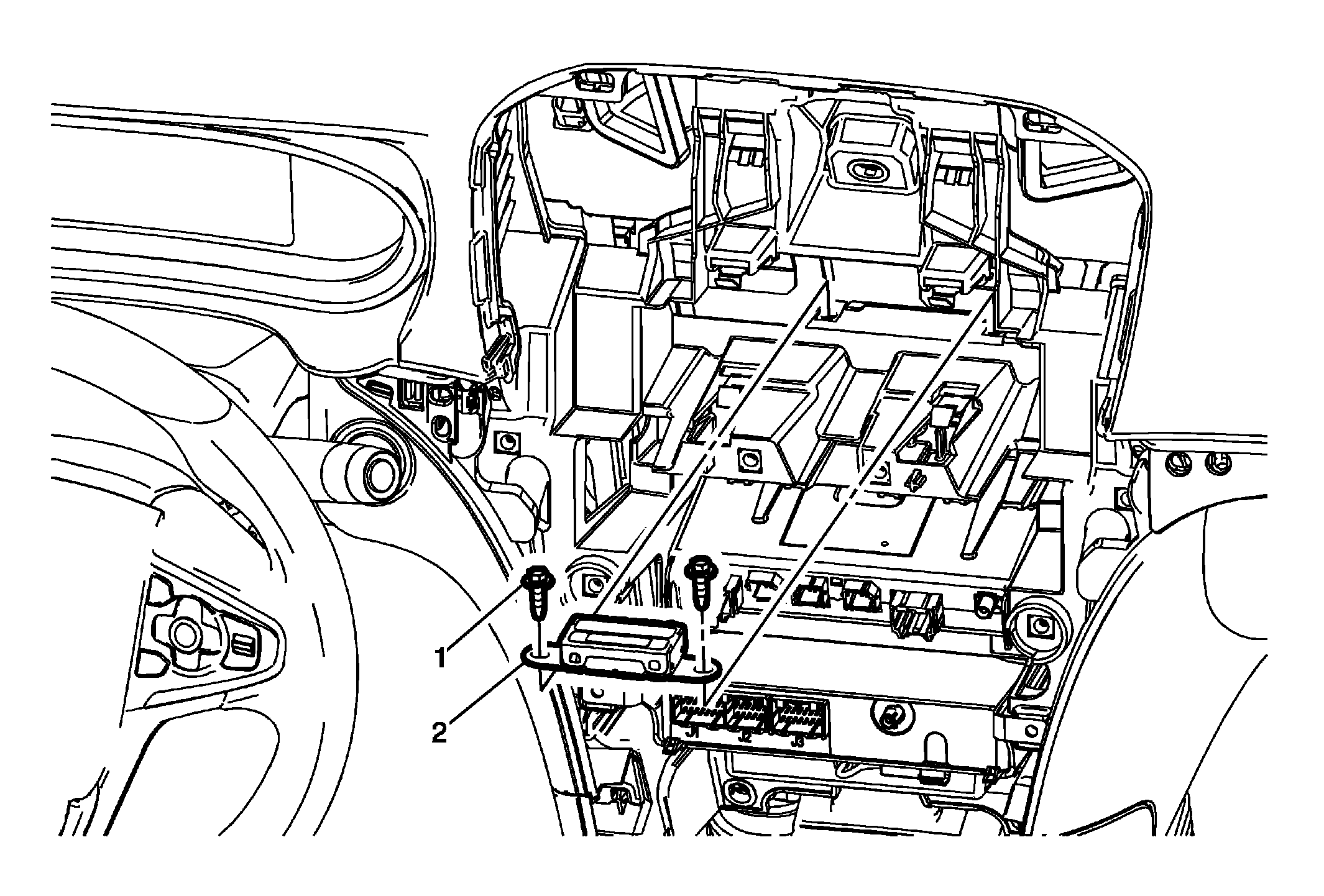

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement . |
|
| 1 | Navigation Signal Splitter Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Navigation Signal Splitter Procedure Disconnect the electrical connections. |
