Engine Block-Bottom View

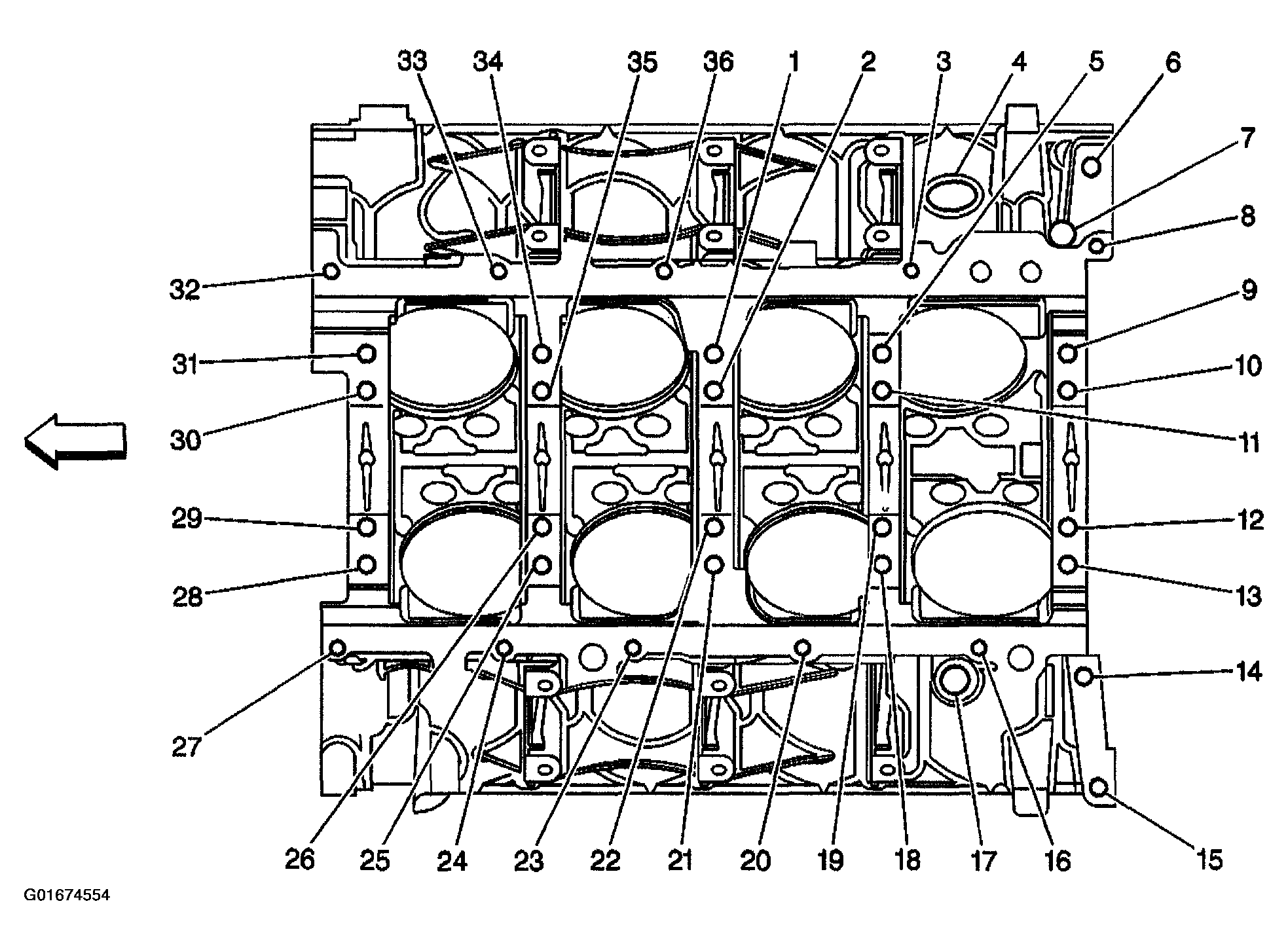

Fig 1: Engine Block - Bottom View
G01674554Courtesy of GENERAL MOTORS CORP.

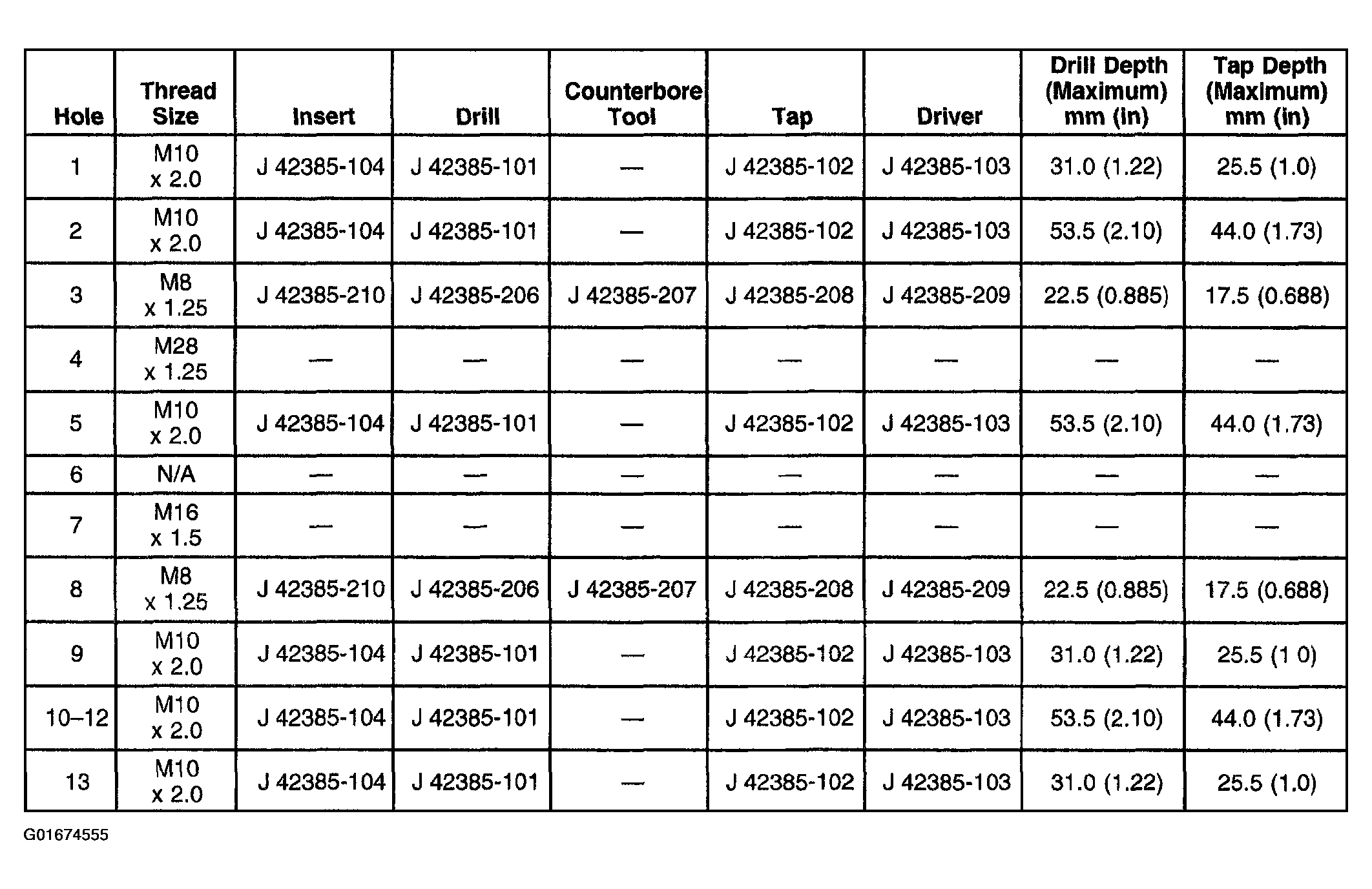

Fig 2: Engine Block - Bottom View Hole Thread Sizes (1 Of 2)
G01674555Courtesy of GENERAL MOTORS CORP.

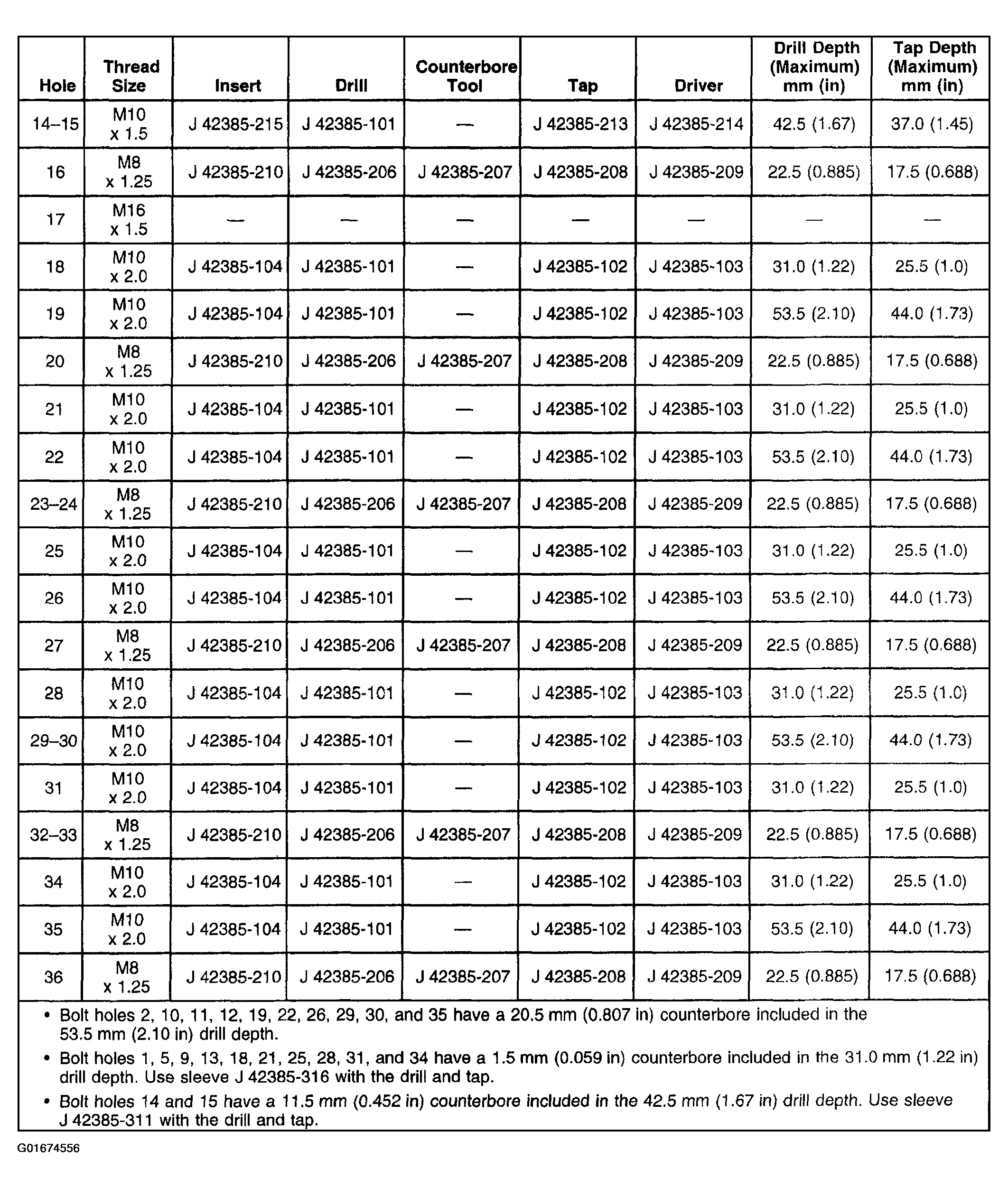

Fig 3: Engine Block - Bottom View Hole Thread Sizes (2 Of 2)
G01674556Courtesy of GENERAL MOTORS CORP.
