Engine Mechanical - 4.8L, 5.3L & 6.0L
›
Thread Repair Specifications
›
Engine Block-Right Side View
Engine Block-Right Side View

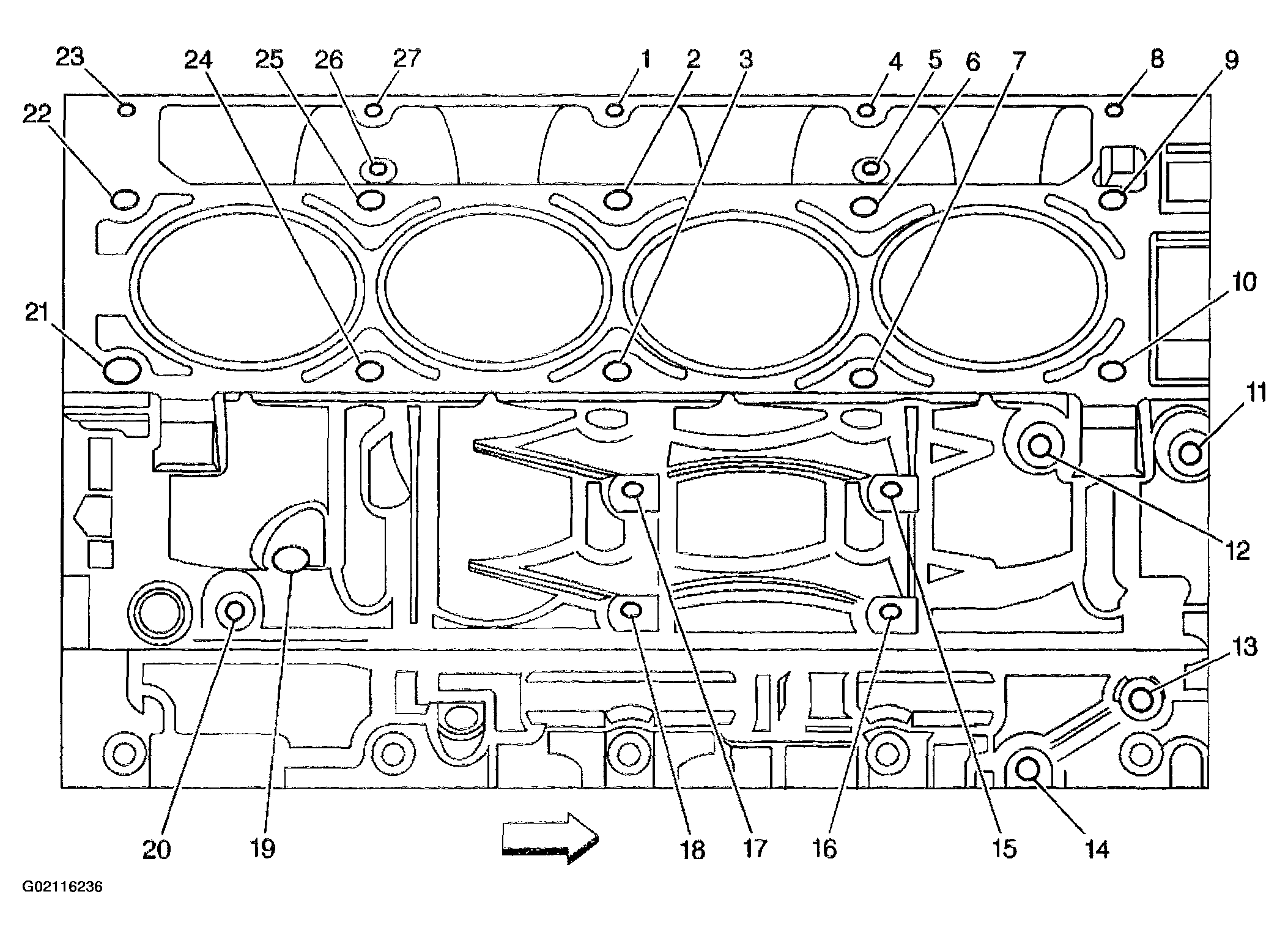

Fig 1: Identifying Engine Block-Right Side View - Thread Repair
Courtesy of GENERAL MOTORS CORP.

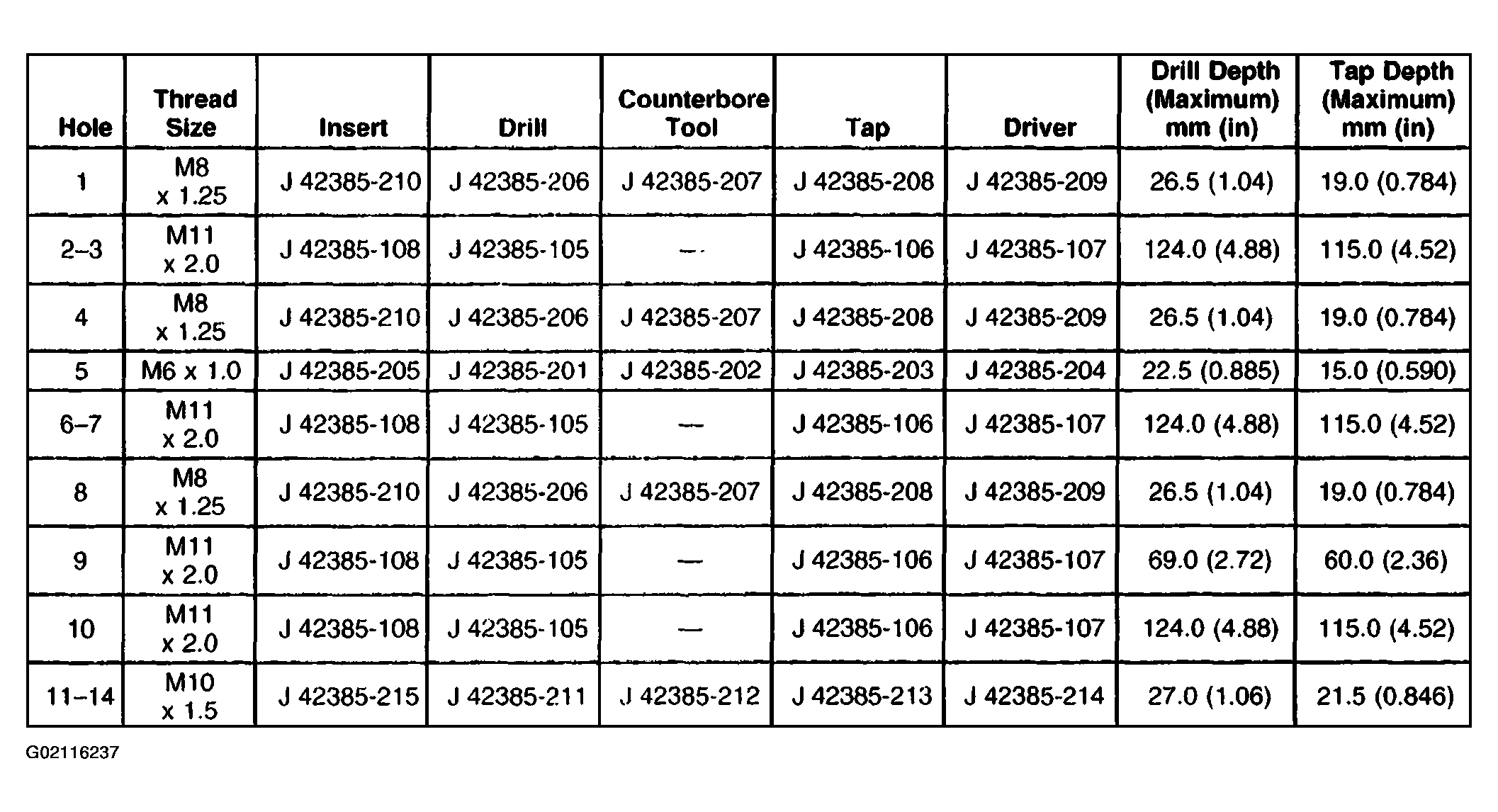

Fig 2: Thread Repair Specifications Index - Engine Block-Right Side (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

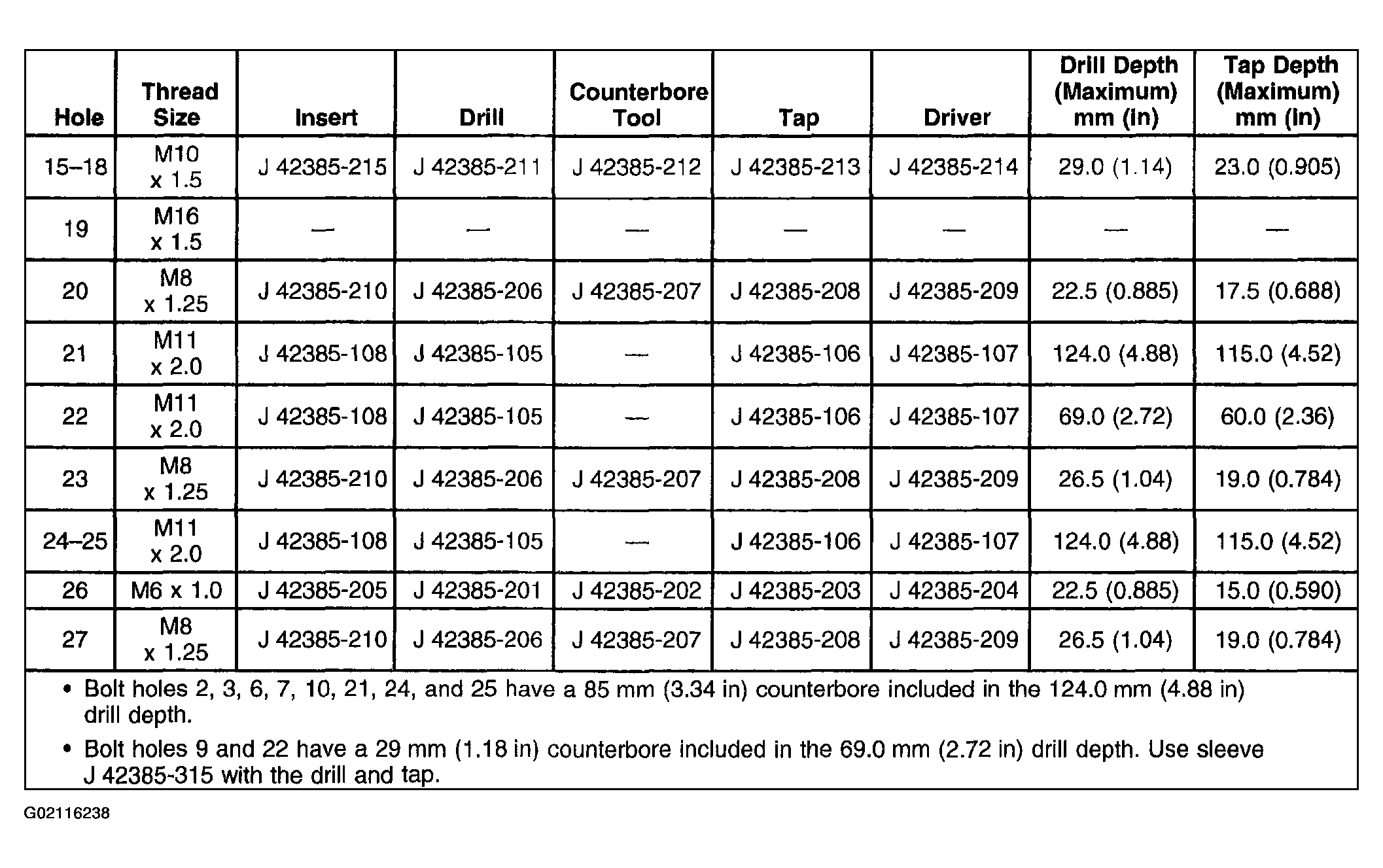

Fig 3: Thread Repair Specifications Index - Engine Block-Right Side (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
