Installation Procedure

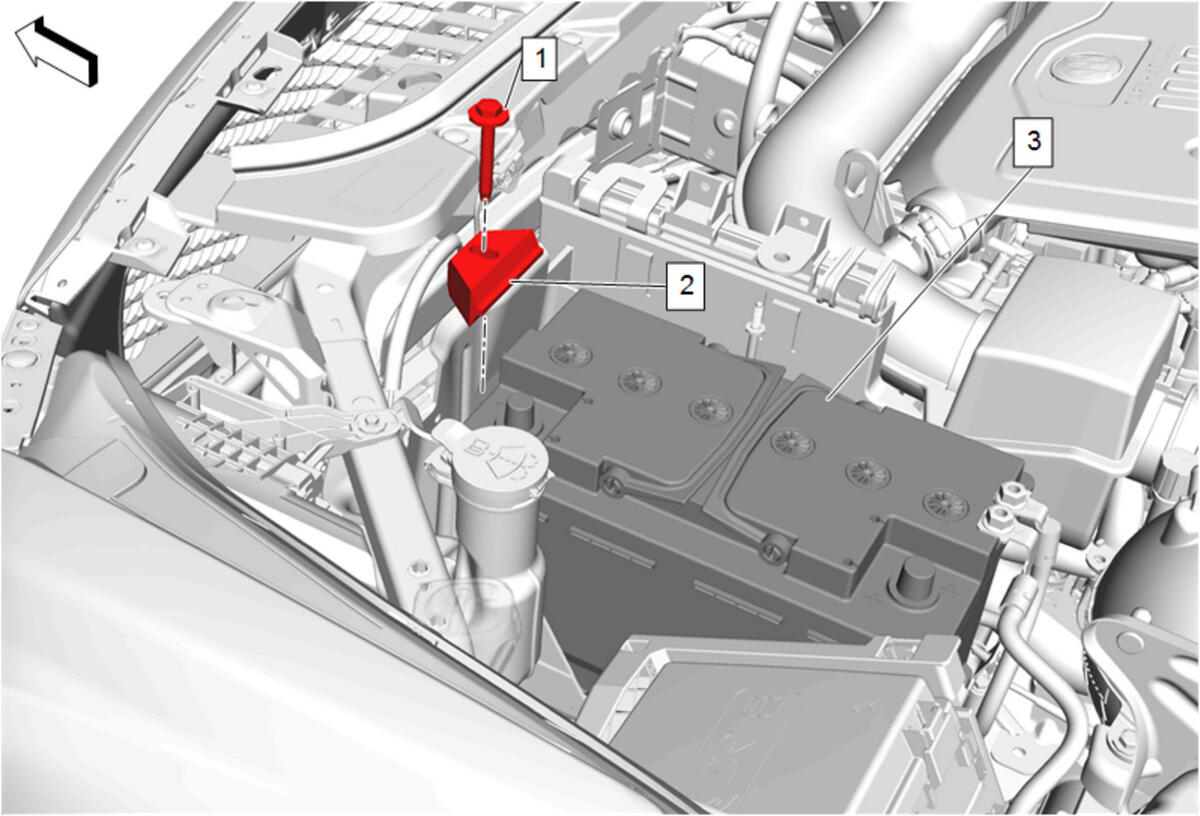

  1. GM5156823Courtesy of GENERAL MOTORS COMPANY

    Battery (3) - Install

  2. Battery Hold Down Retainer (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Battery Hold Down Retainer Bolt (1) - Install and tighten 22 N.m (16 lb ft)

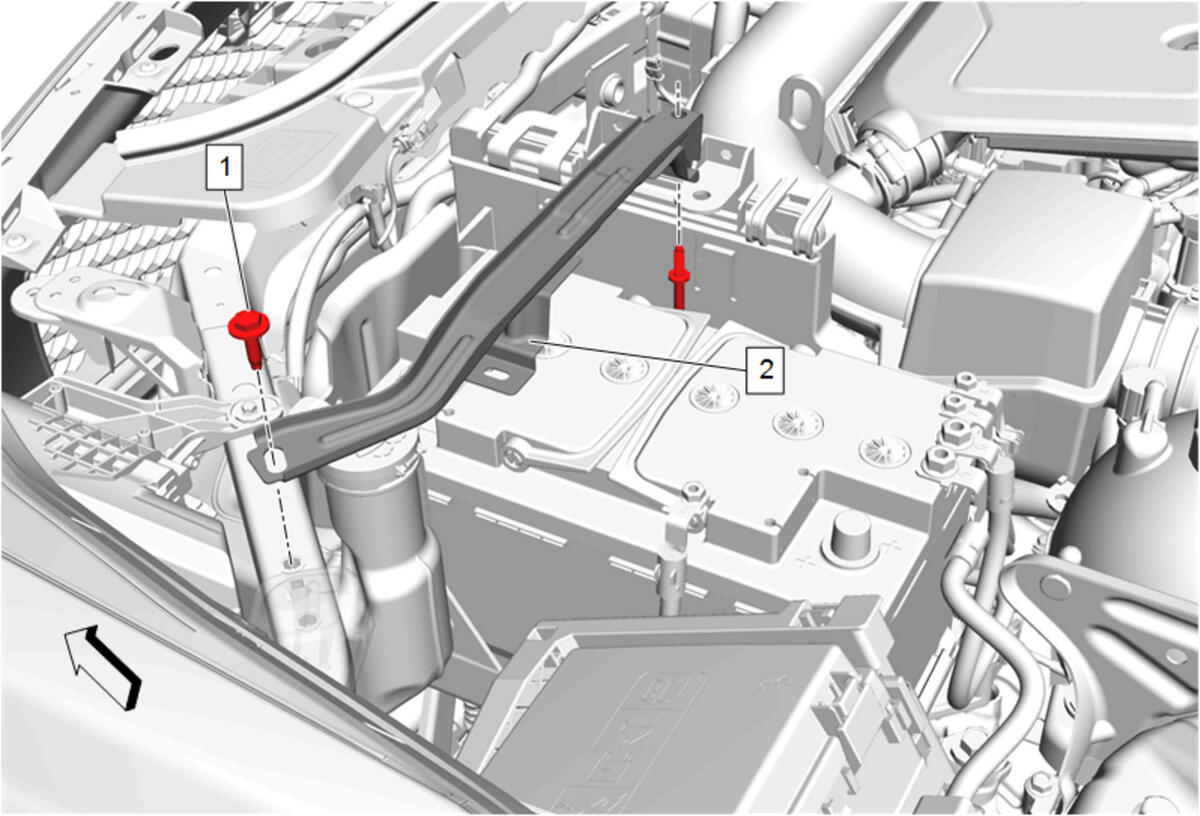

  4. GM5156812Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  5. Battery Hold Down Strap Bolt (1) - Install and tighten 5 N.m (44 lb in)

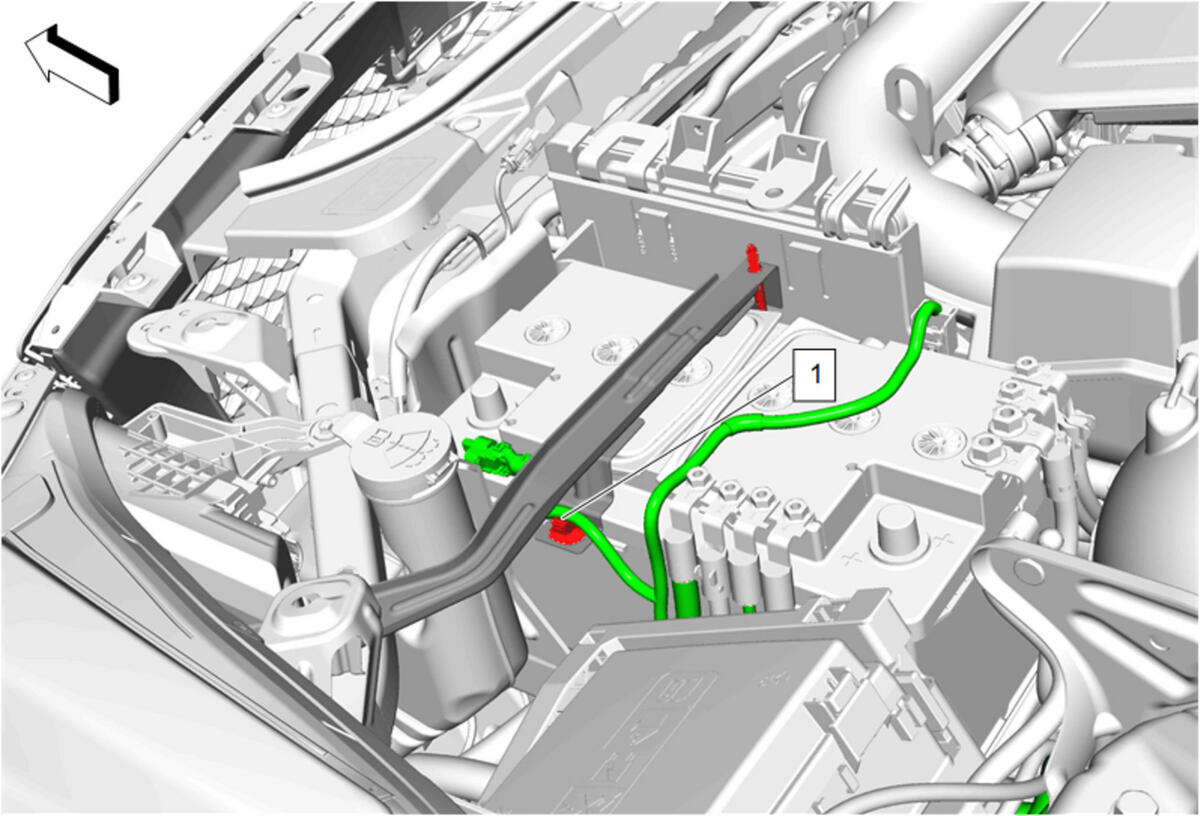

  6. GM5156797Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

  7. Install the engine control module bracket. Engine Control Module Bracket Replacement
  8. GM5156226Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (2) - Install - Battery Distribution Engine Compartment Fuse Block Replacement (LGX) , and Battery Distribution Engine Compartment Fuse Block Replacement (LSY)

  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
