Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

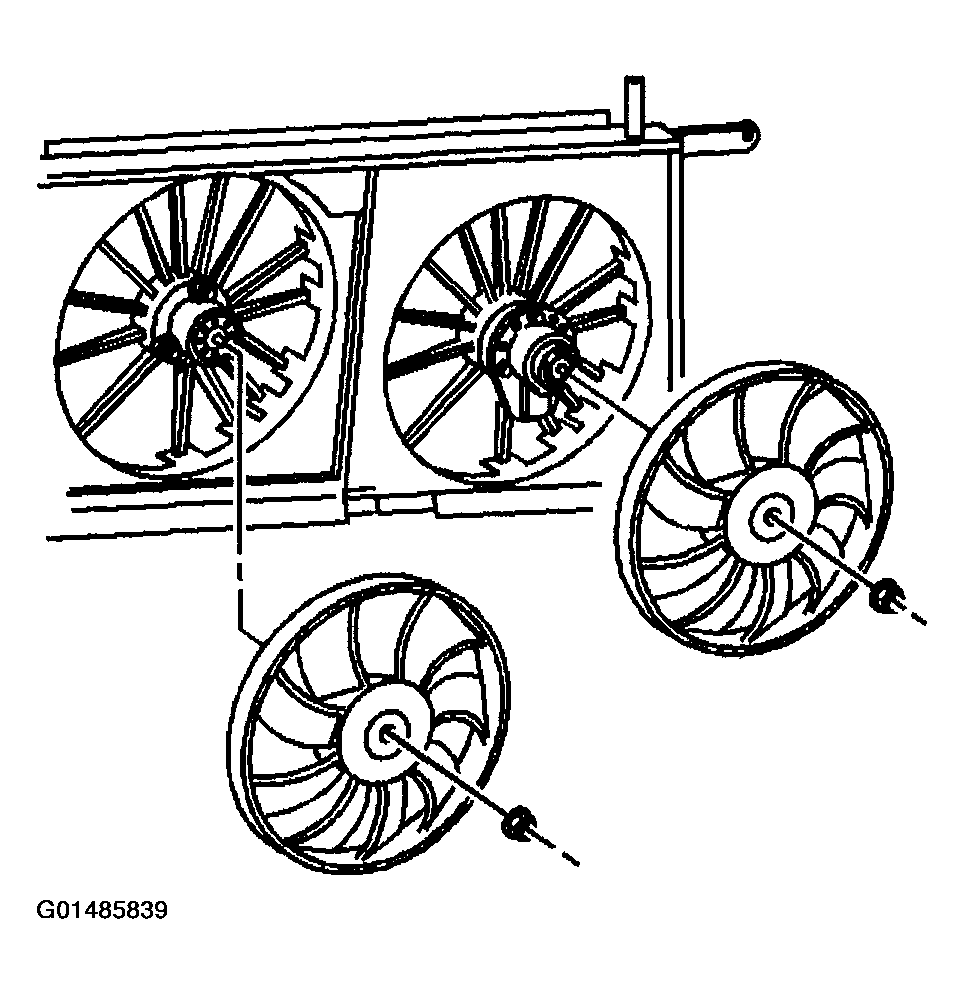

- Install the cooling fan.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Important: Turn the cooling fan nut counterclockwise to tighten.
- Install the cooling fan nut.
Tighten
Tighten the nut to 6 N.m (53 lb in).
- Install the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - ELECTRIC .
