Installation Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

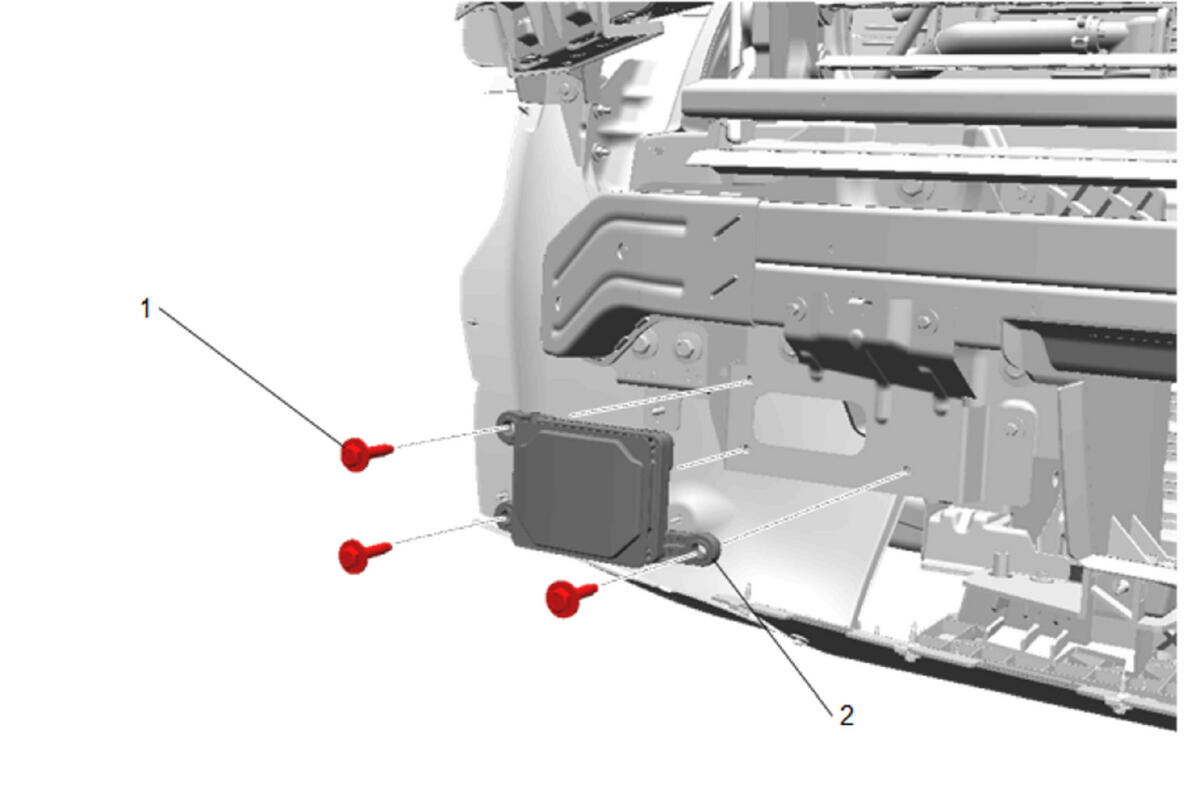

  1. Forward Range Radar Sensor (2) - Install
    GM5587068Courtesy of GENERAL MOTORS COMPANY
  2. CAUTION:

    Refer to Fastener Caution .

  3. Forward Range Radar Sensor Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. Connect the electrical connector.
  5. Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (with RC1) , or Front Bumper Fascia Removal and Installation (with WTX)
    GM5537676Courtesy of GENERAL MOTORS COMPANY
  6. Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
