Electronic Brake Control Systems: Description: Notes

CHANGES, CAUTIONS, CORRECTIONS

TRANSCEIVER INSTALLATION (WITH SURE BRAKE SYSTEM) NOTE:  Sure brake system must be checked for proper operation whenever a citizen's band transceiver or mobile telephone is installed. Installation suggestions: If transmitter is to be installed in trunk, mount it on left side of trunk. Be sure there is a good ground between transmitter and car body. Use only good, low leakage coaxial cable at left side of trunk, as short as possible. Ensure antenna has a good ground. Antenna must not be mounted on right rear fender. Route all cables along left side of vehicle.

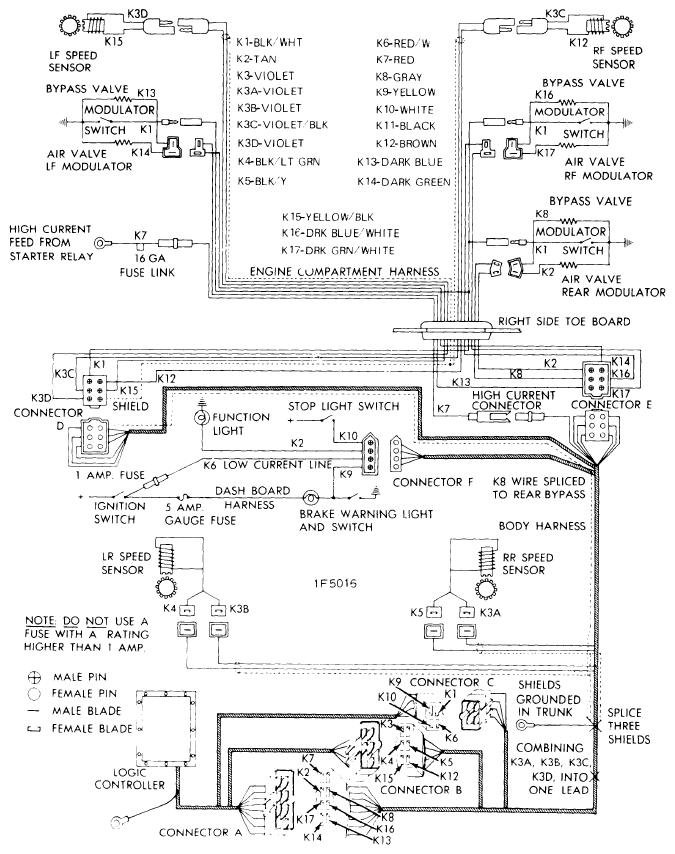

System designed to prevent loss of control during emergency or maximum braking. To avoid lock-up of any  wheel, system is cycled to release and re-apply brakes as required. System consists of three major components:
