Driver Power Seat Horizontal Position Sensor Connector End View
Driver Power Seat Horizontal Position Sensor Connector End View

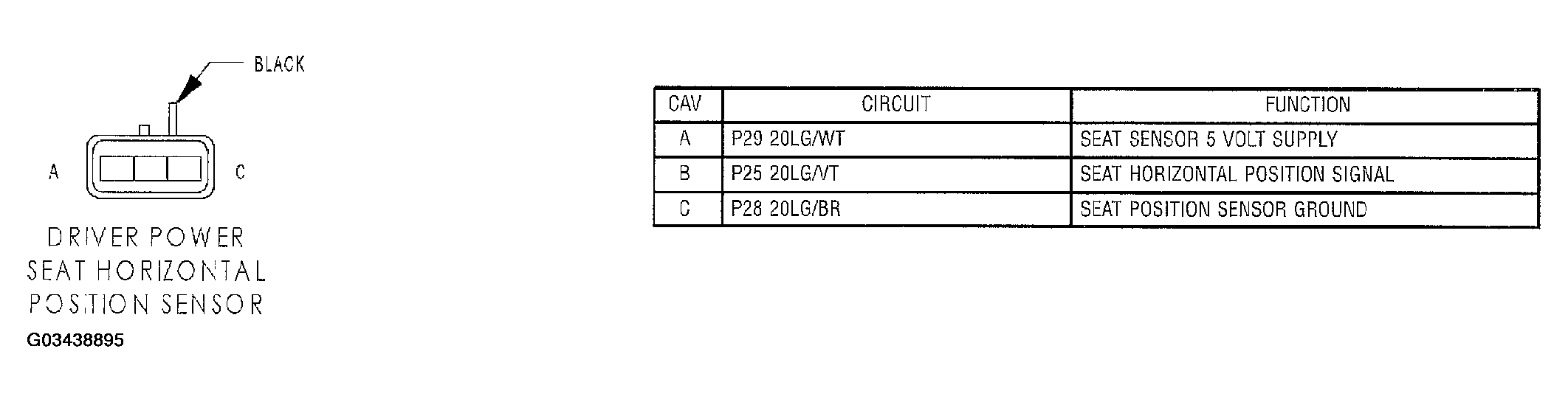

Fig 1: Driver Power Seat Horizontal Position Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
