Rear Auto Temp Control Zone Automatic Temperature Control Switch 3 Connector End View

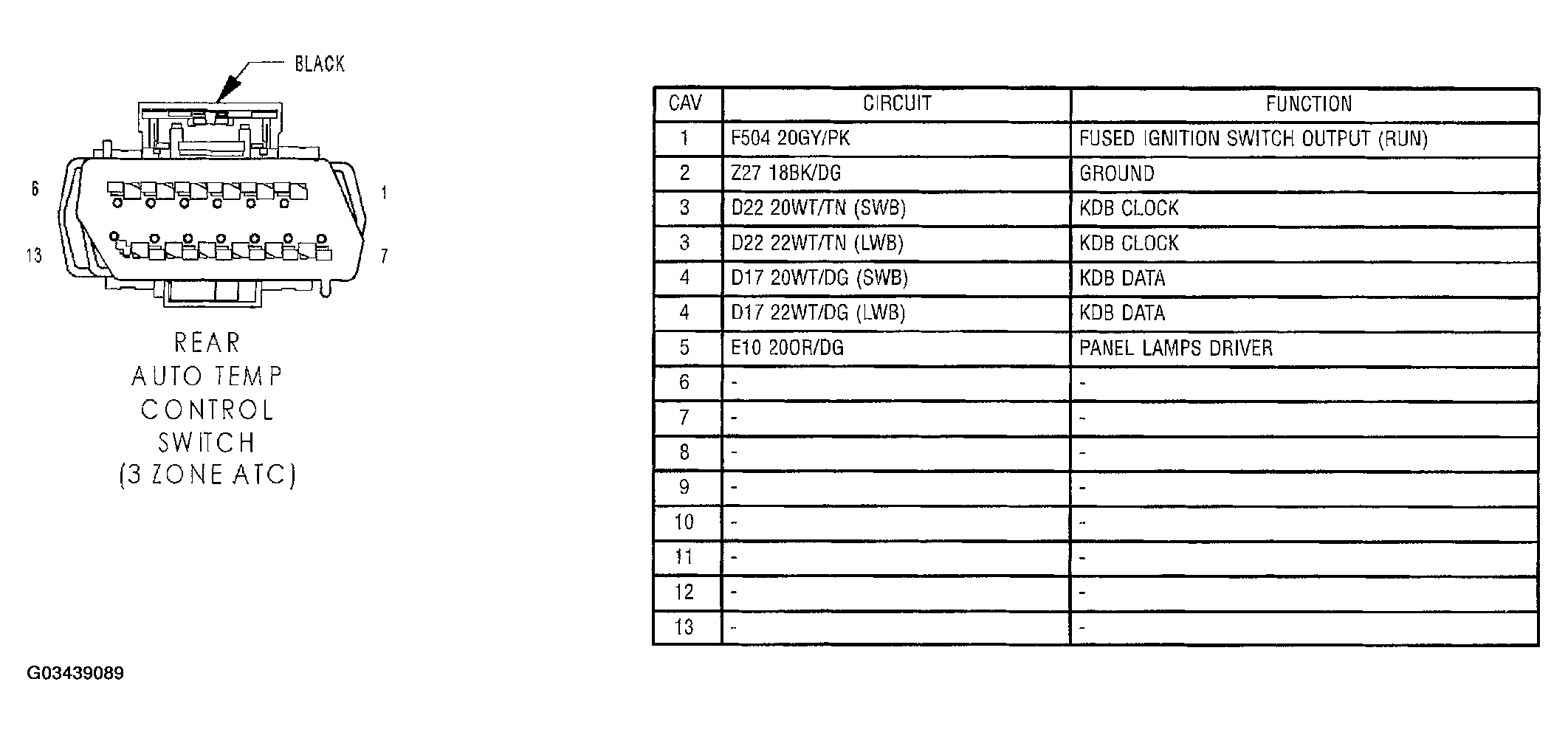

Fig 1: Rear Auto Temp Control Zone Automatic Temperature Control Switch 3 Connector End View
G03439089Courtesy of DAIMLERCHRYSLER CORP.
