Door Module-Driver C3 - Black 20 Way Connector End View

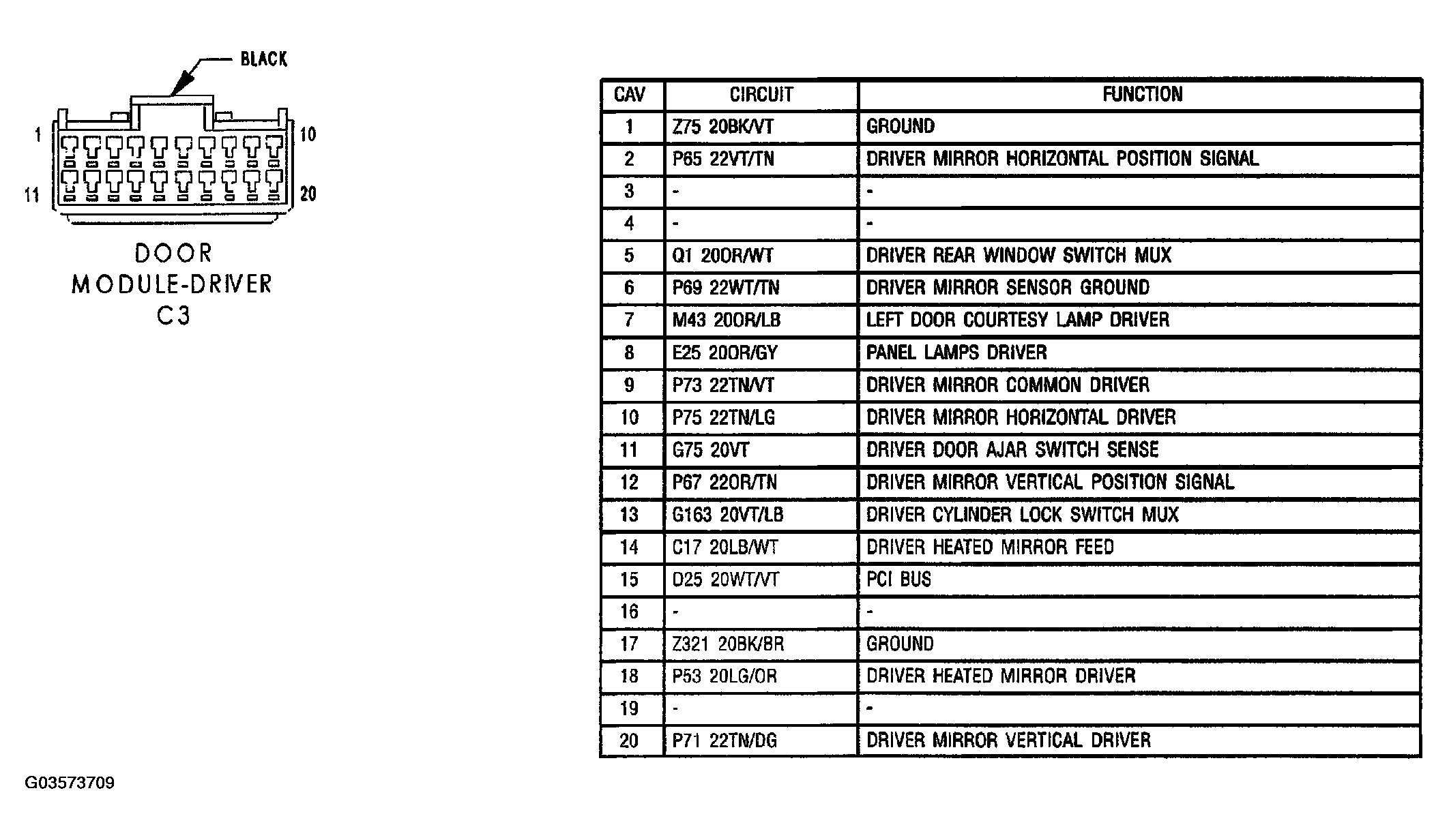

Fig 1: Driver Door Module Connector End View (C3)
G03573709Courtesy of DAIMLERCHRYSLER CORP.
