Assembly-Exhaust Gas RECIRCULATION Valve: Removal: 2.7L

Fig 1: EGR SYSTEM

Courtesy of DAIMLERCHRYSLER CORP.

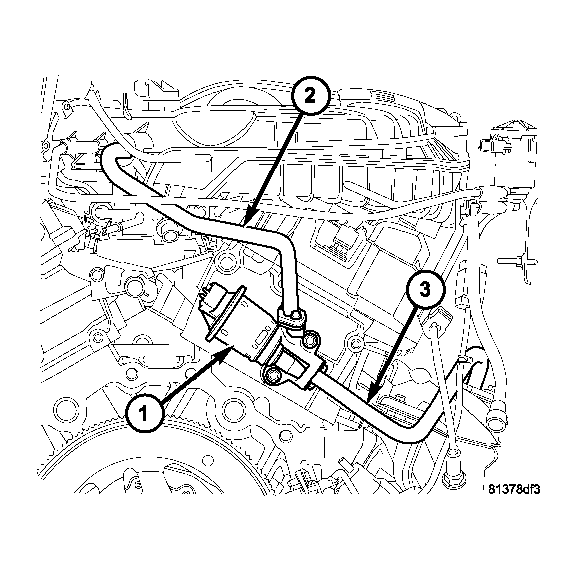

1. EGR system components and location. Upper tube (2), EGR valve (1), and Lower tube (3).
2. Disconnect negative battery cable.
   Fig 2: PURGE SOLENOID INSTALLED

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove purge solenoid from bracket.
   Fig 3: PURGE SOLENOID BRACKET

   Courtesy of DAIMLERCHRYSLER CORP.
4. Relocate the purge solenoid.
5. Unlock and disconnect the electrical connector from EGR valve.
   Fig 4: EGR VALVE

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the bolts from the EGR tube to exhaust manifold.
7. Remove the lower tube bolts to EGR valve and remove tube(3).
8. Remove upper tube bolts to EGR valve (2).
9. Remove the EGR valve mounting bolts (1).
10. Remove valve from vehicle.
11. Clean mounting surface.
