IAT Sensor, TP Sensor And IAC Motor Location (2.0L)
IAT Sensor, TP Sensor And IAC Motor Location (2.0L)

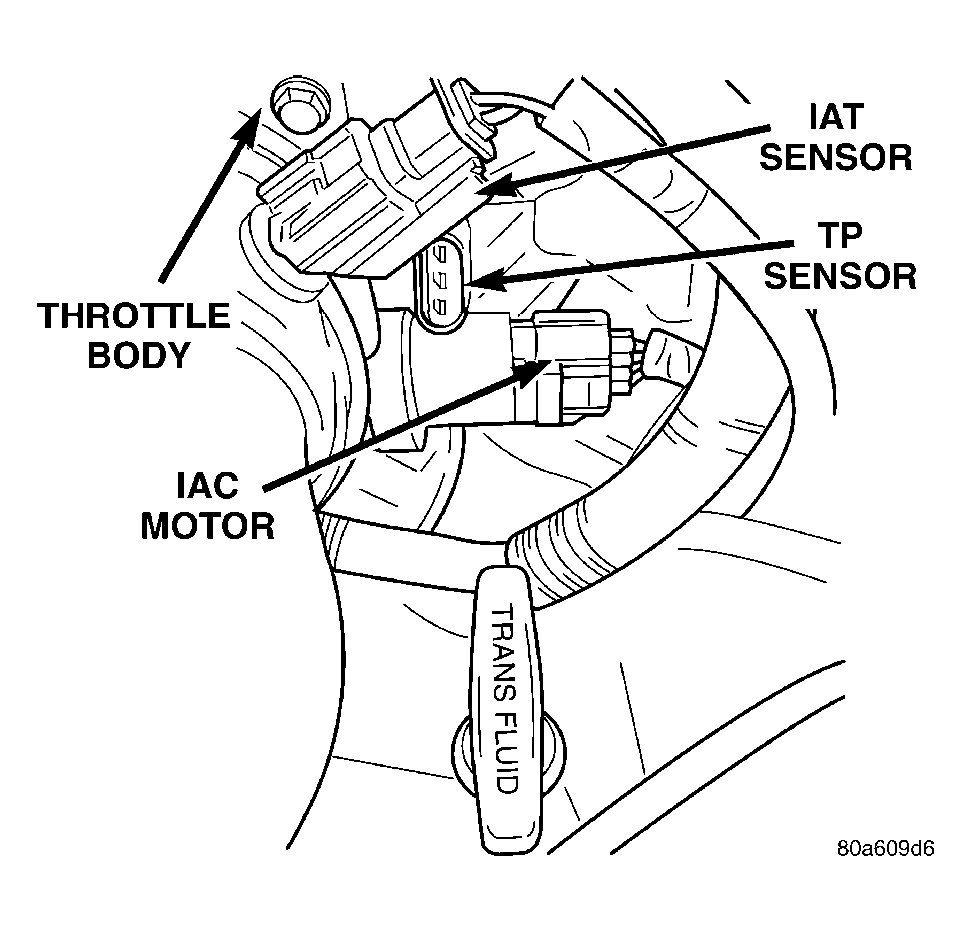

Fig 1: Identifying IAT Sensor, TP Sensor And IAC Motor (2.0L)
