Sensor-Engine Coolant Temperature: Installation: Installation-3.5L

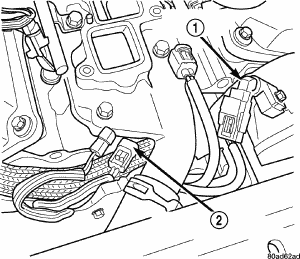

Fig 1: Identifying Engine Coolant Temperature Sensor - 3.5L
GC0058758Courtesy of CHRYSLER LLC
1 - CAMSHAFT POSITION SENSOR
2 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Install engine coolant temperature sensor (2). Tighten sensor to 28 N.m (20 ft. lbs.) torque.
  2. Attach electrical connector to sensor.
  3. Connect negative battery cable.
