Dodge and Ram
›
2004
›
Caravan SE, 2.4 B
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Integrated Power Module C3 - 20 Way
Integrated Power Module C3 - 20 Way

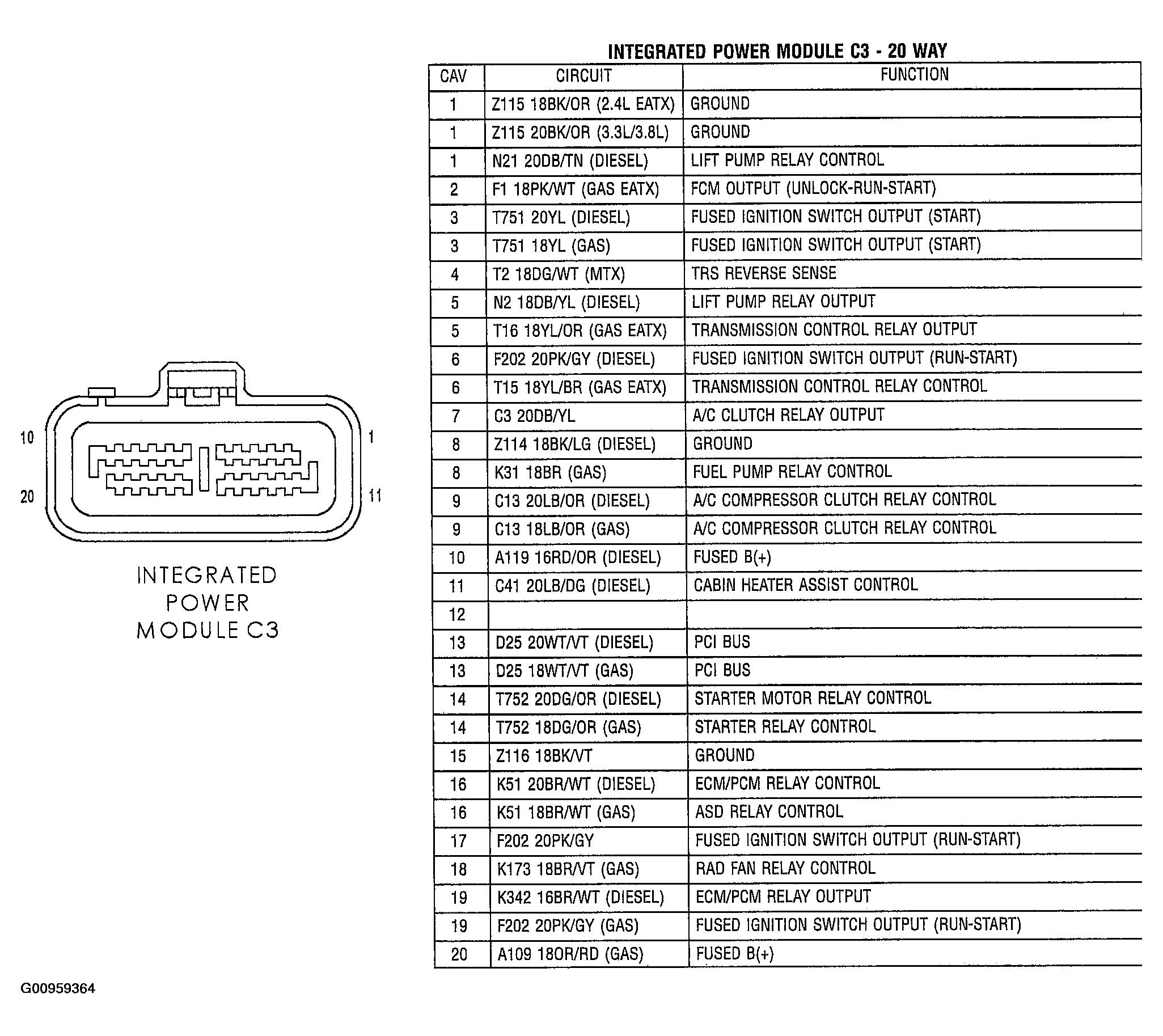

Fig 1: Identifying Integrated Power Module C3 - 20 Way Connector Pinouts And Functional Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
