P1004-Short Runner Valve Control Performance: Notes

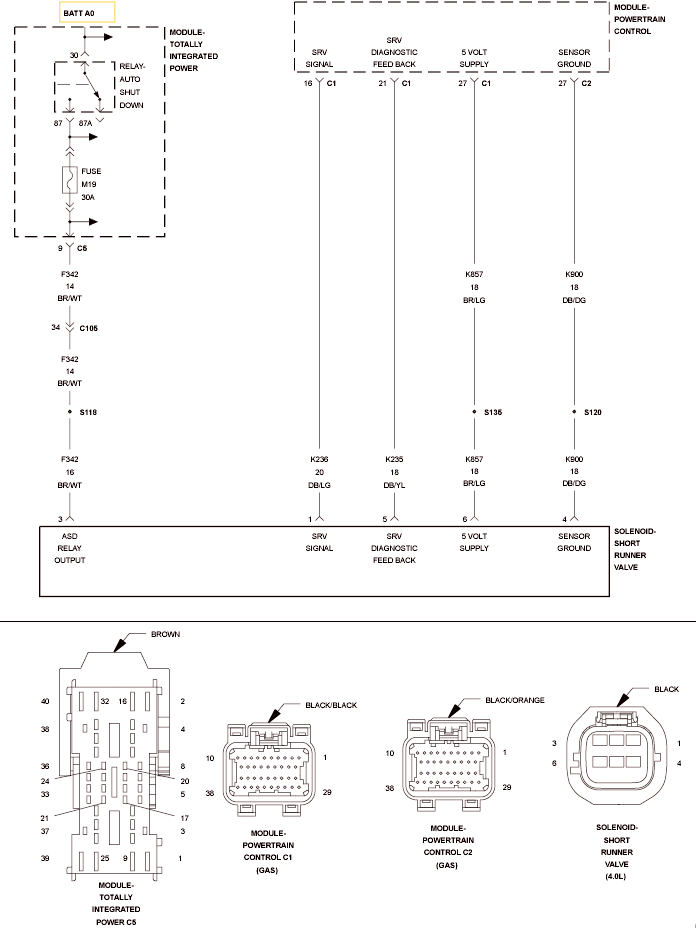

Fig 1: Short Runner Valve Solenoid Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
