Wiring Diagrams

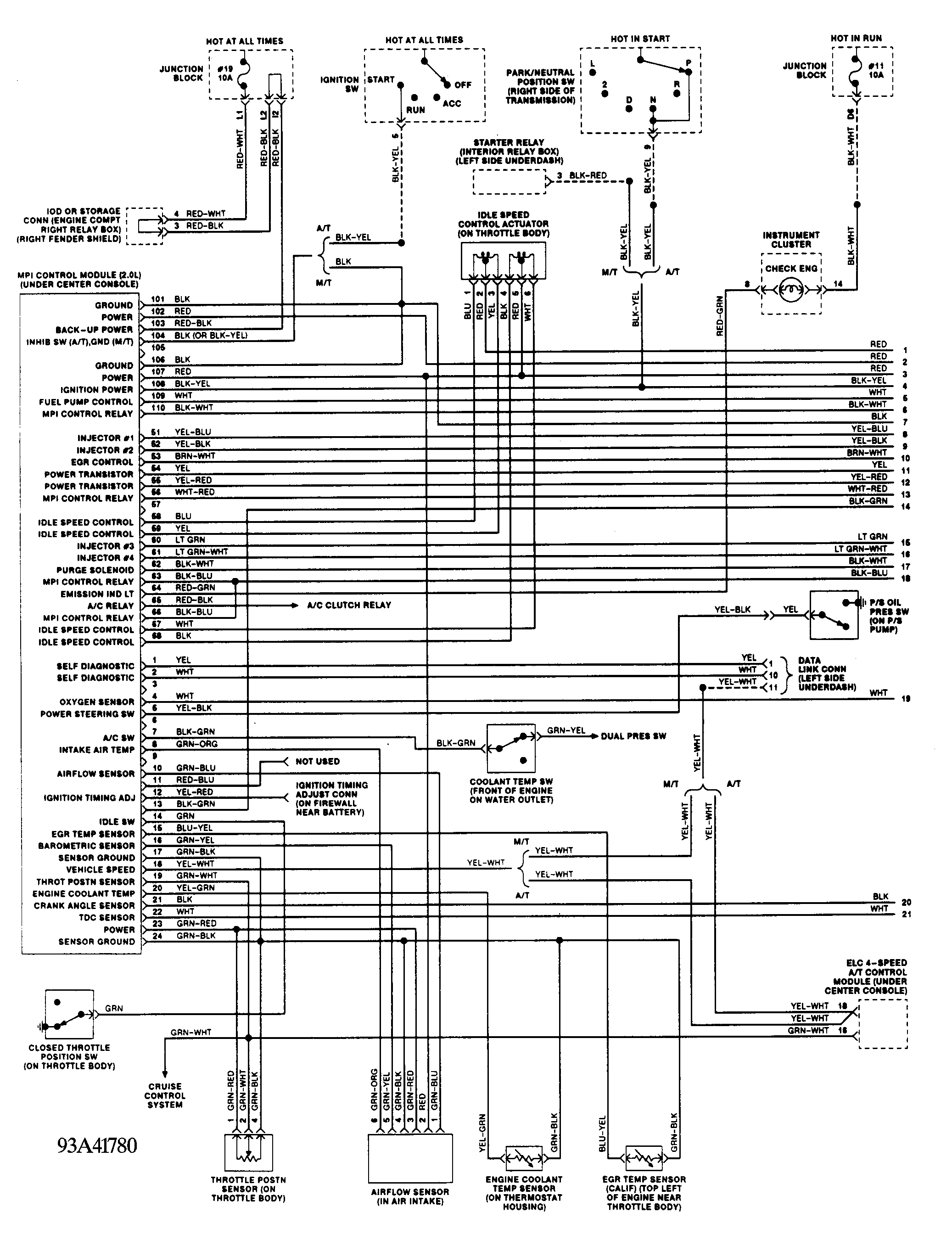

Fig 1: ECU Wiring Diagram - 1 Of 2 (2.0L PFI)

G93A41780

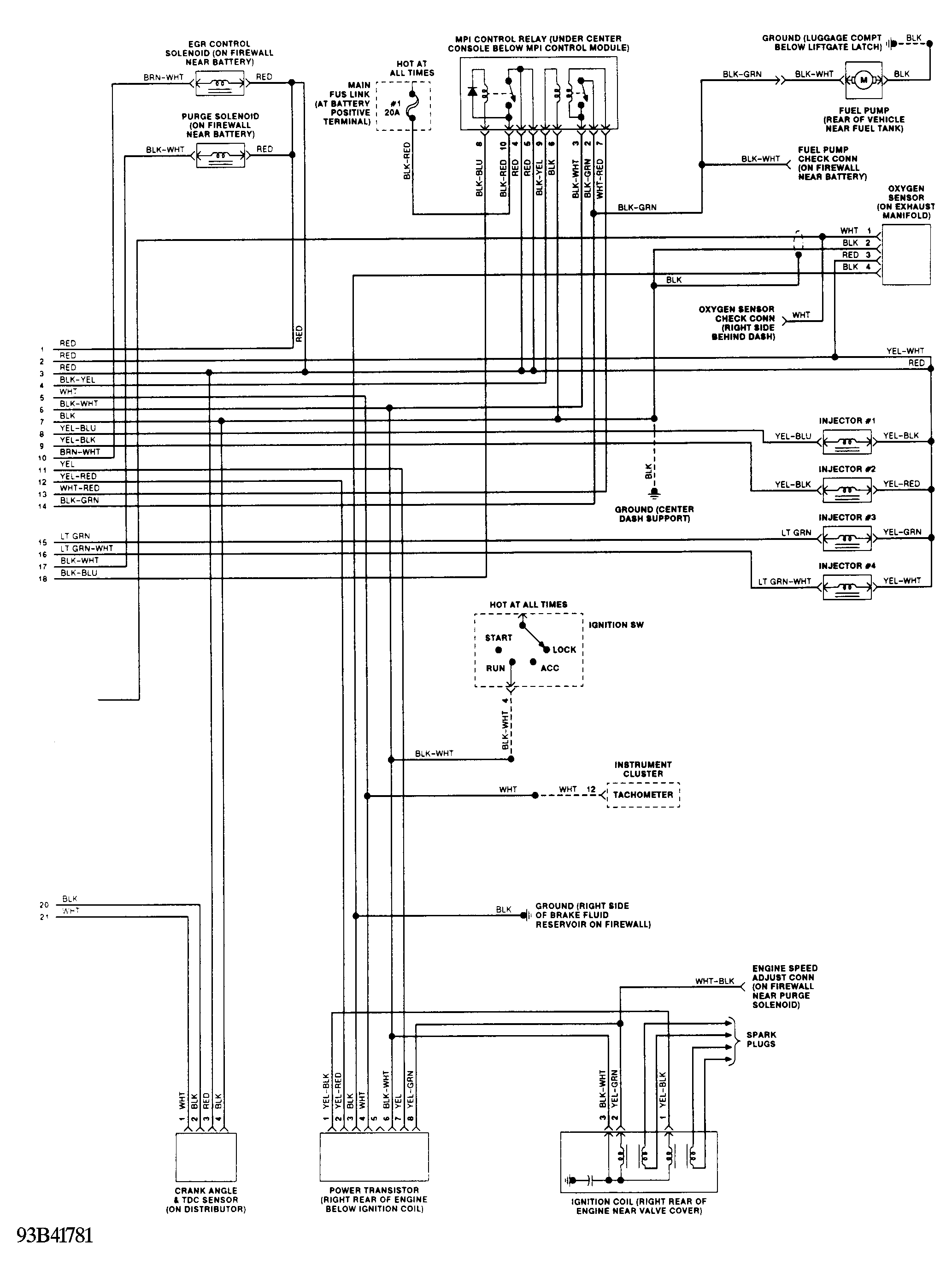

Fig 2: ECU Wiring Diagram - 2 Of 2 (2.0L PFI)

G93B41781

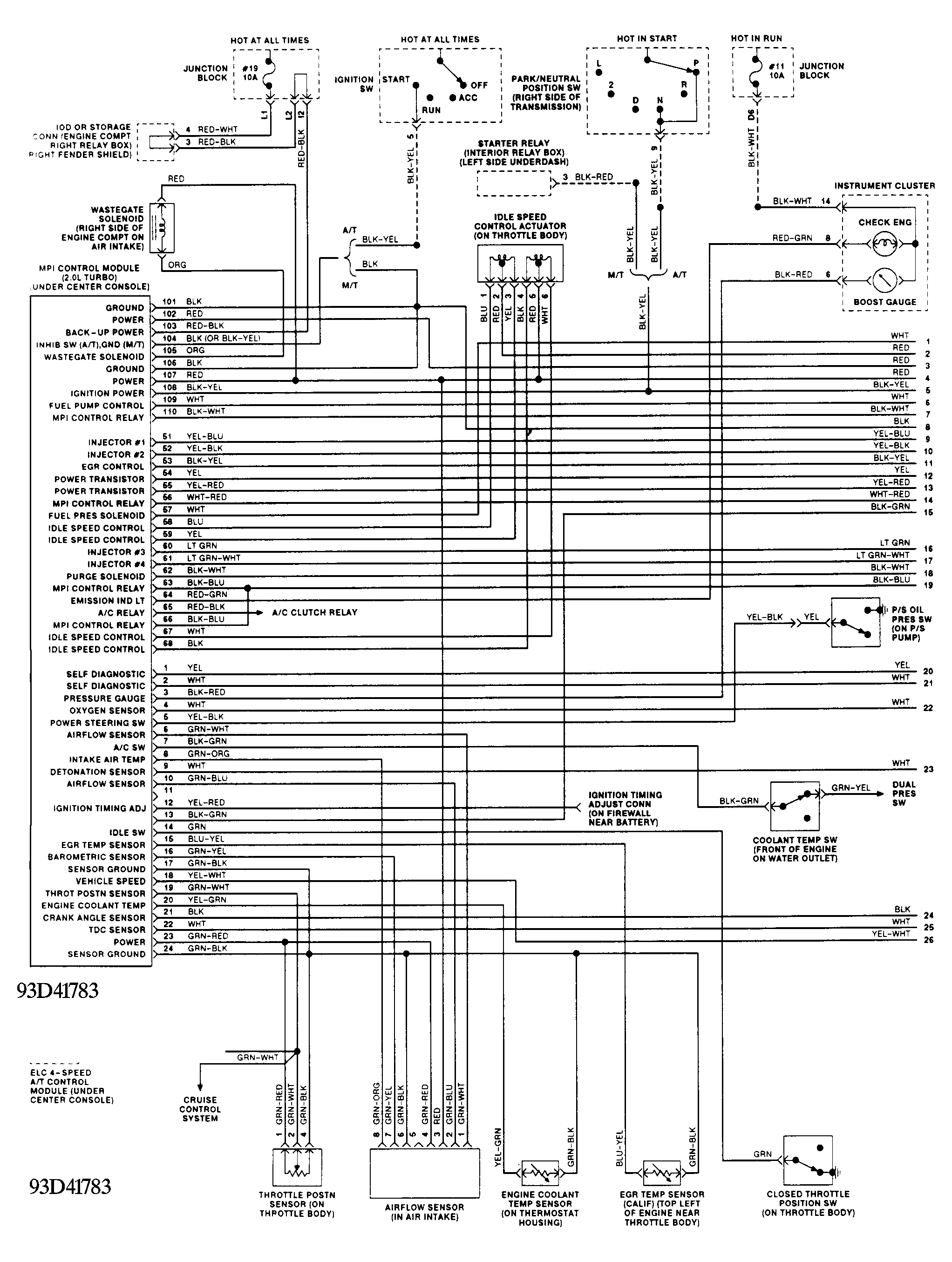

Fig 3: ECU Wiring Diagram - 1 Of 2 (2.0L Turbo)

G93D41783

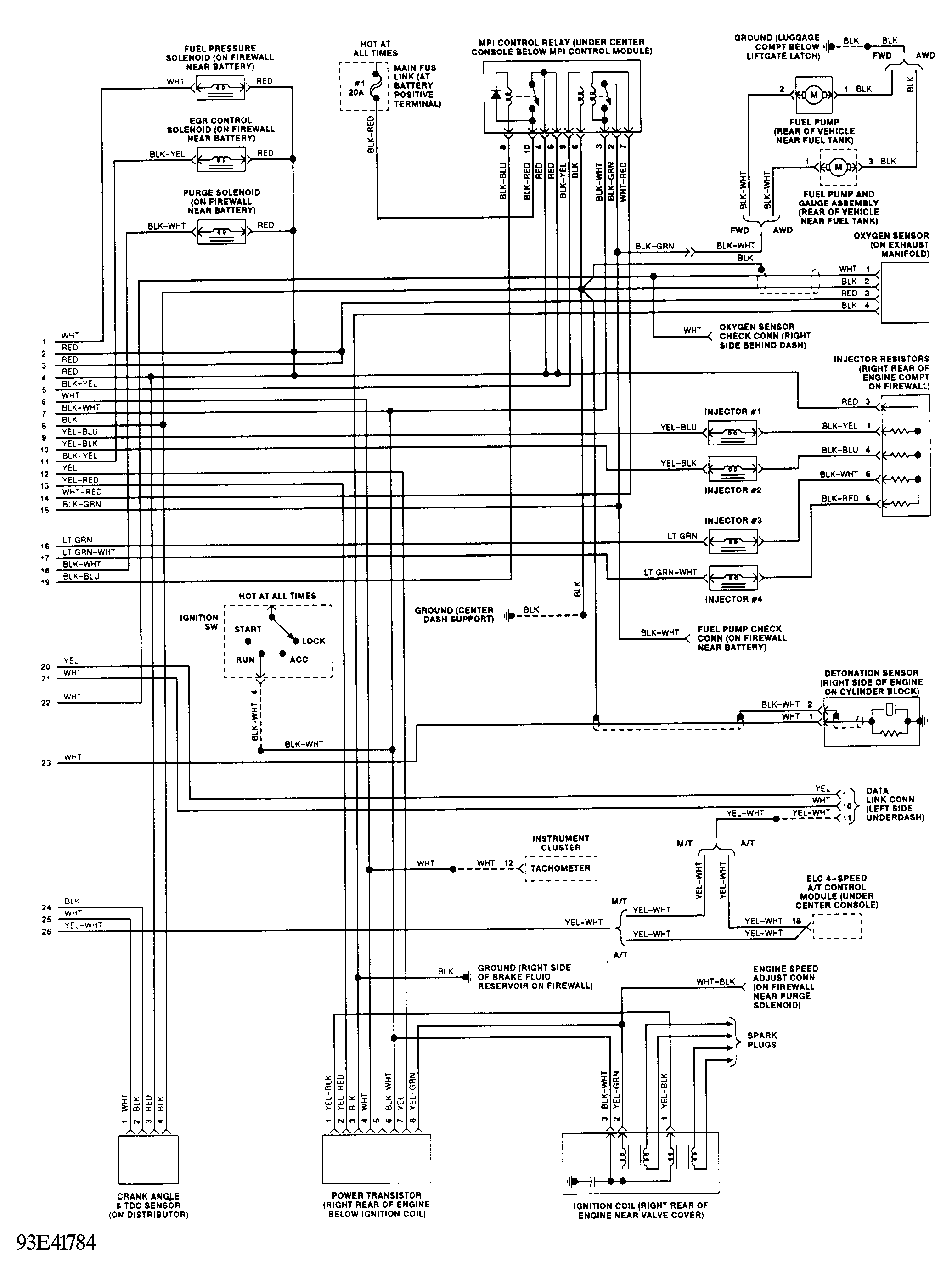

Fig 4: ECU Wiring Diagram - 2 Of 2 (2.0L Turbo)

G93E41784
