In-Vehicle Repair: Flexplate: Installation
WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

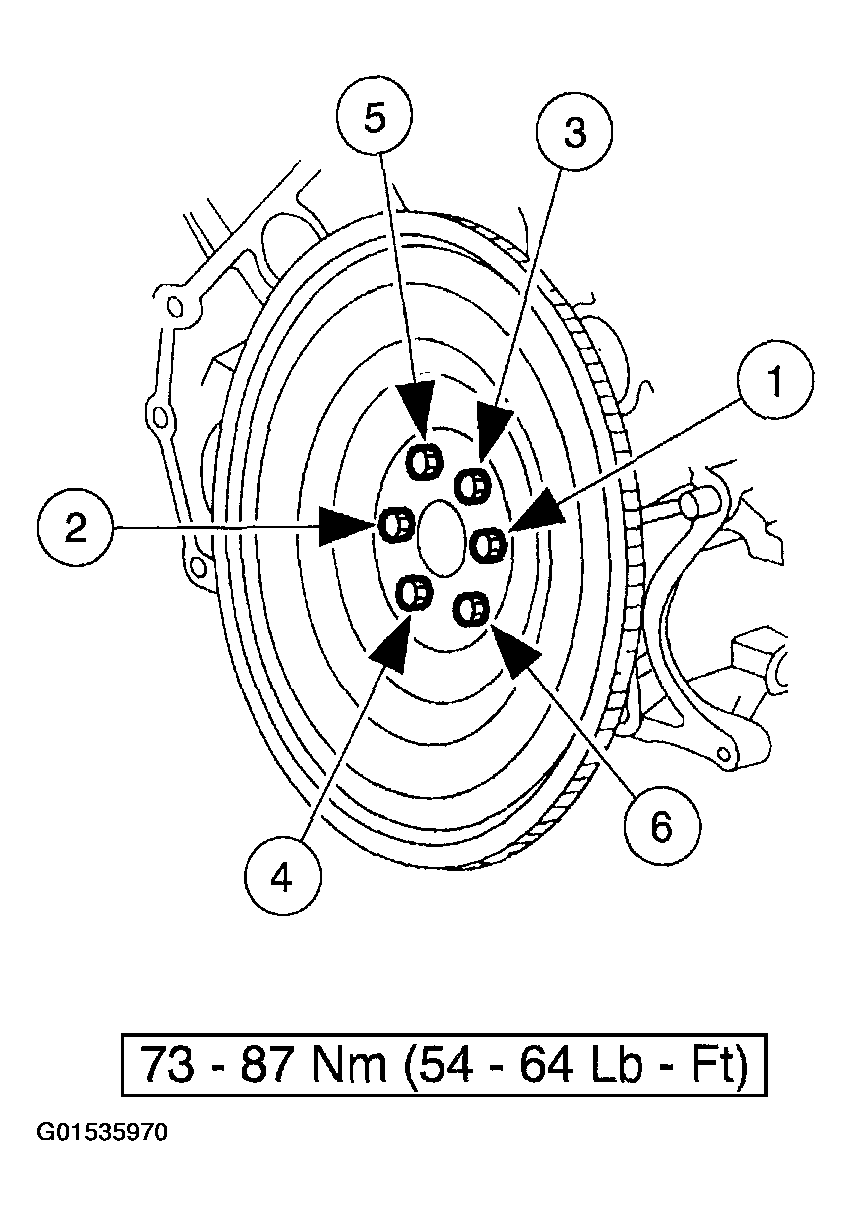

- Position the flexplate (6375) on the crankshaft (6303) and install the bolts. Tighten the bolts in the sequence shown.
- Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 or AUTOMATIC TRANSAXLE/TRANSMISSION-4R70W .
