Removal & Installation: Module: Removal

Lower the panel.

Fig 1: Lower Underdash Panel
Courtesy of FORD MOTOR CO.
Remove the lamp from the panel and disconnect the wiring.

Fig 2: Identifying Lamp From Panel & Disconnecting Wiring
Courtesy of FORD MOTOR CO.

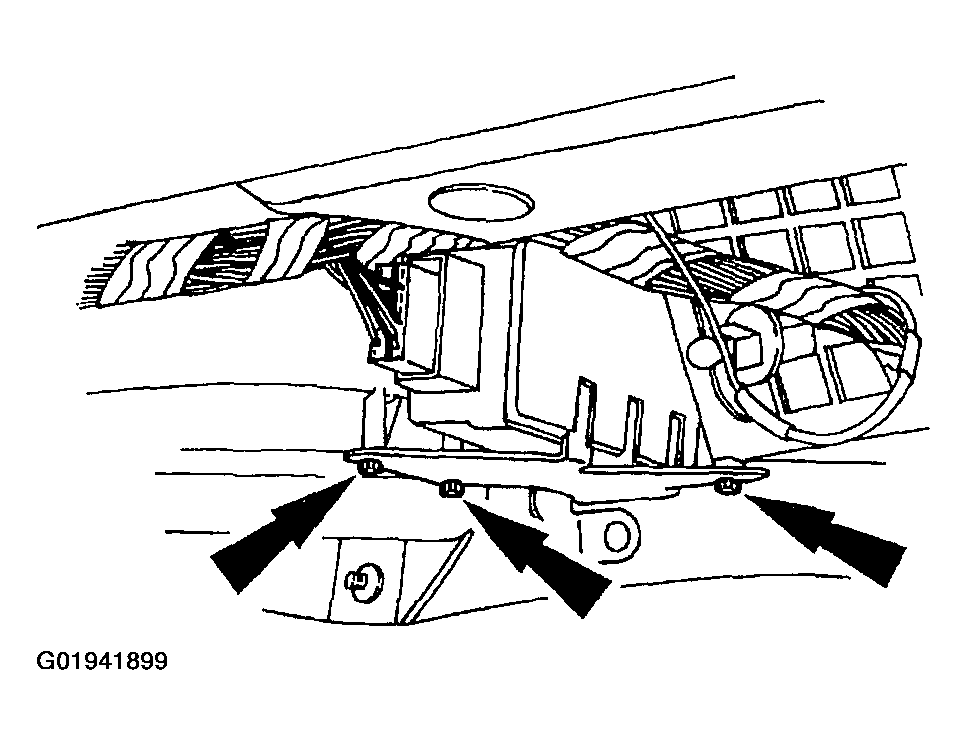

Remove the screws.

Fig 3: Removing Retaining Screws
Courtesy of FORD MOTOR CO.

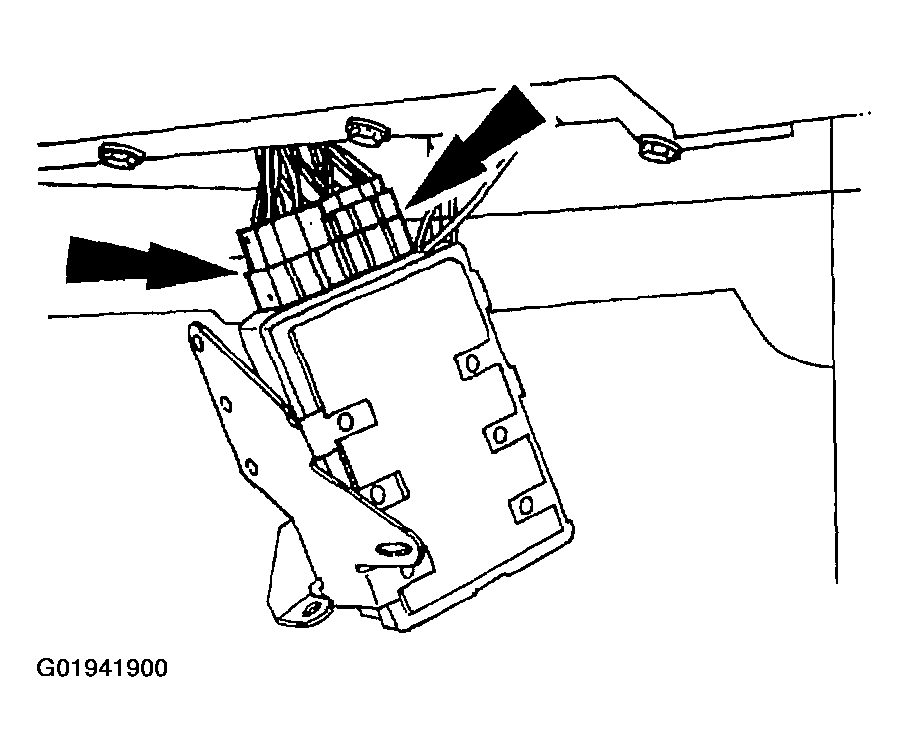

Disconnect the wiring and remove the control module.

Fig 4: Identifying Control Module Electrical Connector
Courtesy of FORD MOTOR CO.
