Cylinder Head: Assembly

    NOTE: Use the seal protector provided with the replacement kit to prevent damage to the valve stem seals.

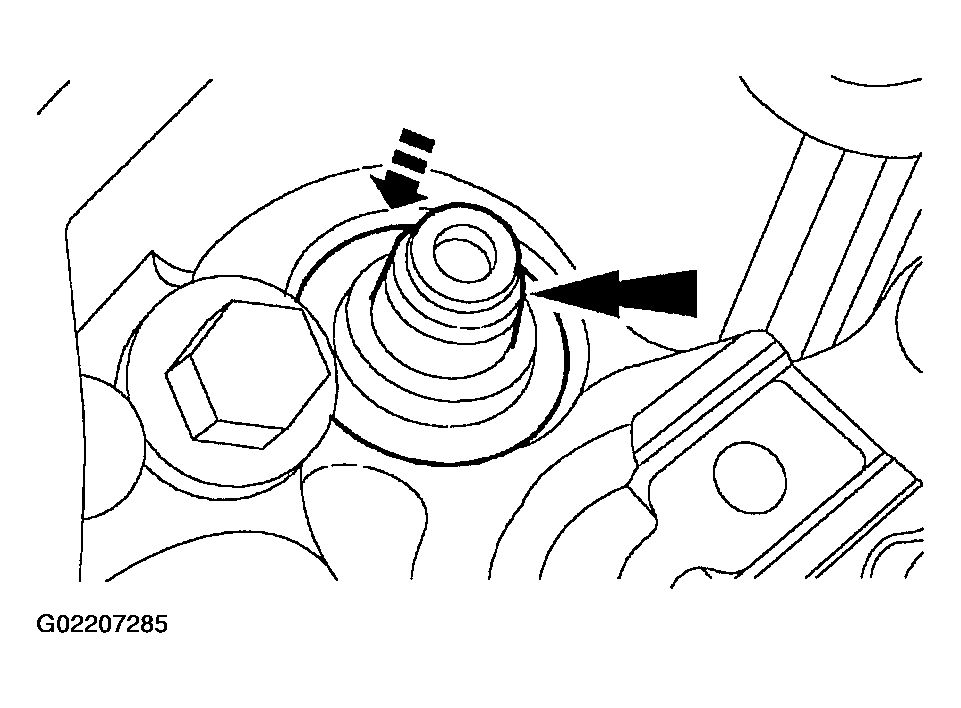

    Fig 1: Installing Valve Stem Seals
    G02207285Courtesy of FORD MOTOR CO.
  1. Install the valve stem seals.
    2. NOTE: If installing the original valves, make sure the valves are installed in the position from which they were removed. Coat the valve stems with clean engine oil.

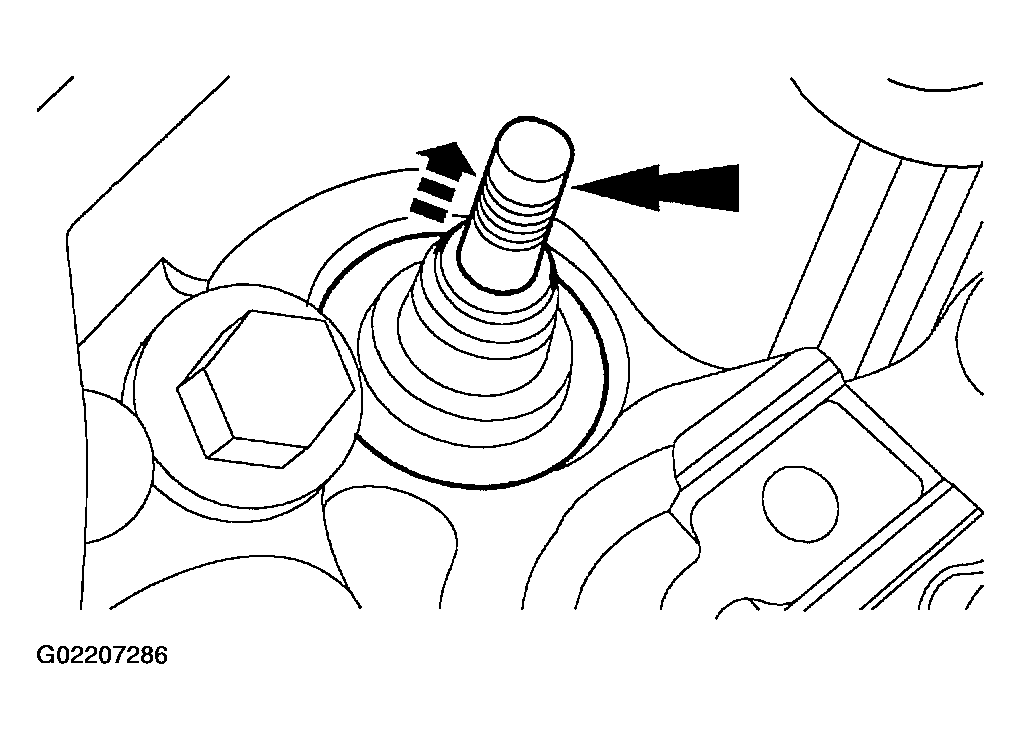

    Fig 2: Installing Valves
    G02207286Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
