Removal and Installation

  1. Remove the ignition coil. For additional information, IGNITION COIL-ON-PLUG .
    2. NOTE: Remove any foreign material from the spark plug wells with compressed air before removing the spark plugs.

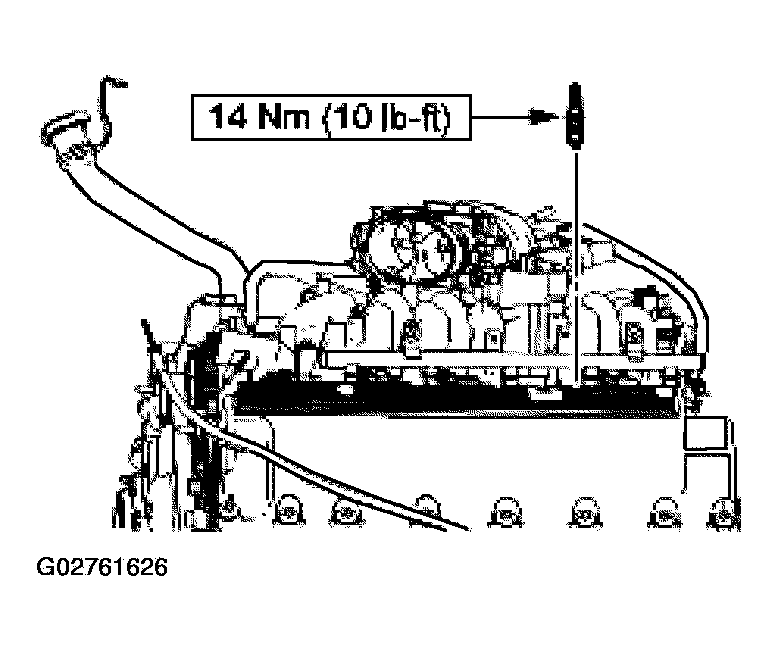

    Fig 1: Removing Spark Plugs
    G02761626Courtesy of FORD MOTOR CO.
  2. Remove the spark plugs.
  3. Inspect the spark plugs. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
  4. To install, reverse the removal procedure.
Fig 2: Installing Spark Plugs
G02761627Courtesy of FORD MOTOR CO.
