Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

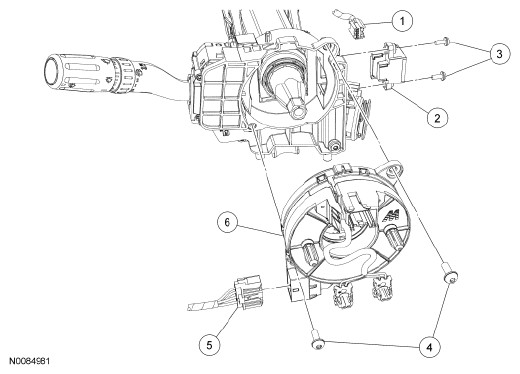

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Steering wheel rotation sensor electrical connector (part of 14401) |
| 2 | 3F818 | Steering wheel rotation sensor |
| 3 | - | Steering wheel rotation sensor screws (2 required) (part of 3F818) |
| 4 | - | Clockspring screws (2 required) (part of 14A644) |
| 5 | - | Clockspring electrical connector (part of 14401) |
| 6 | 14A644 | Clockspring |
