Generator Pulley: Notes

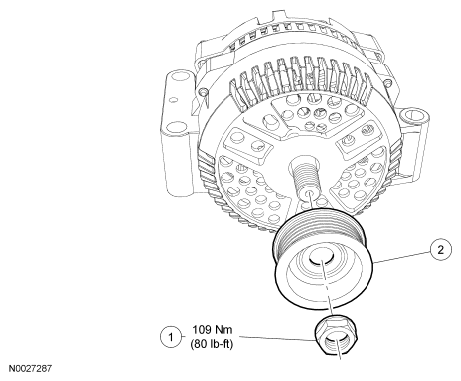

Fig 1: Generator Pulley Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Generator pulley nut (part of 10346)
2	10344	Generator pulley
