Section 3224 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

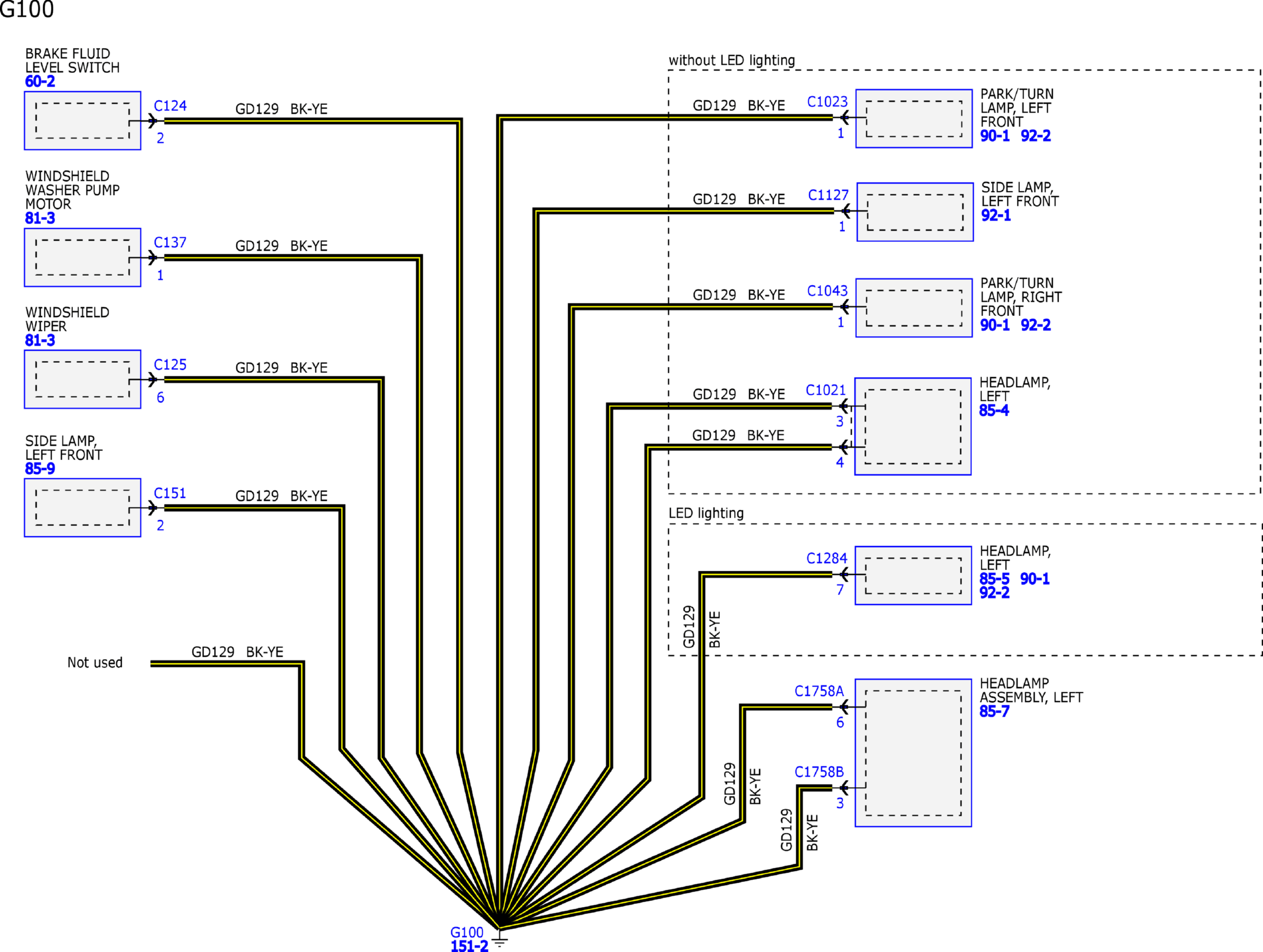

GFDW74947Courtesy of FORD MOTOR COMPANY

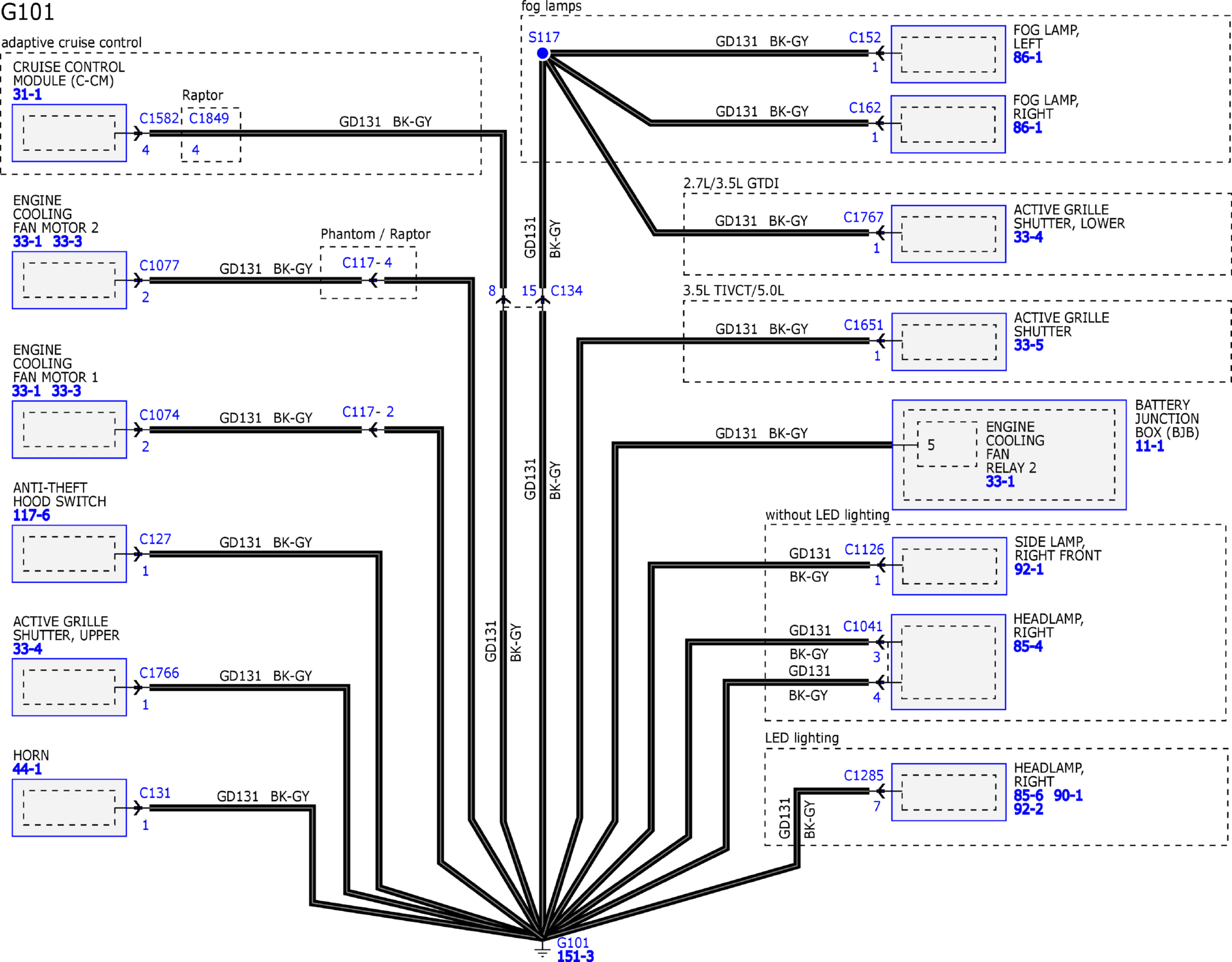

GFDW74948Courtesy of FORD MOTOR COMPANY

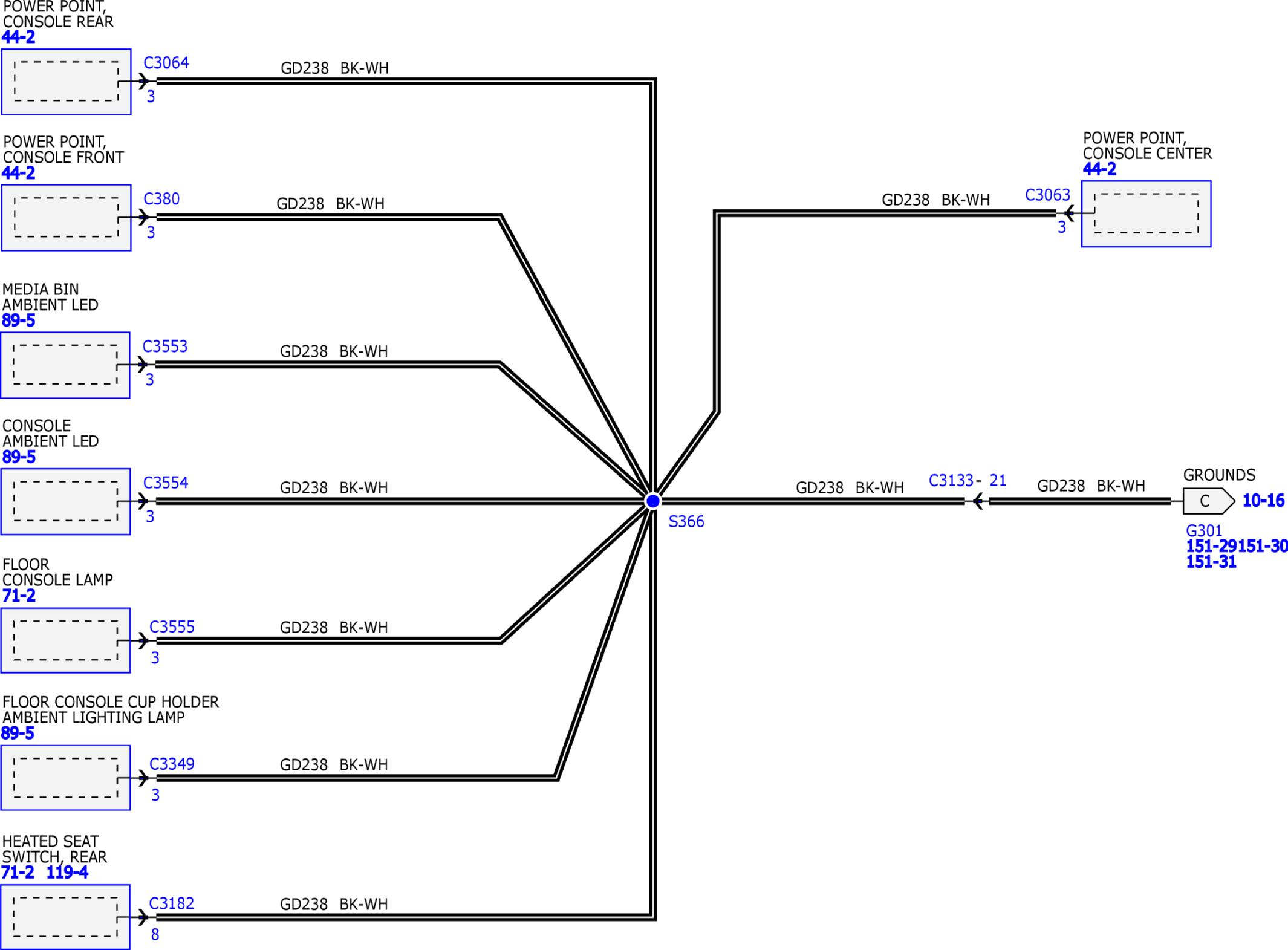

GFDW74949Courtesy of FORD MOTOR COMPANY

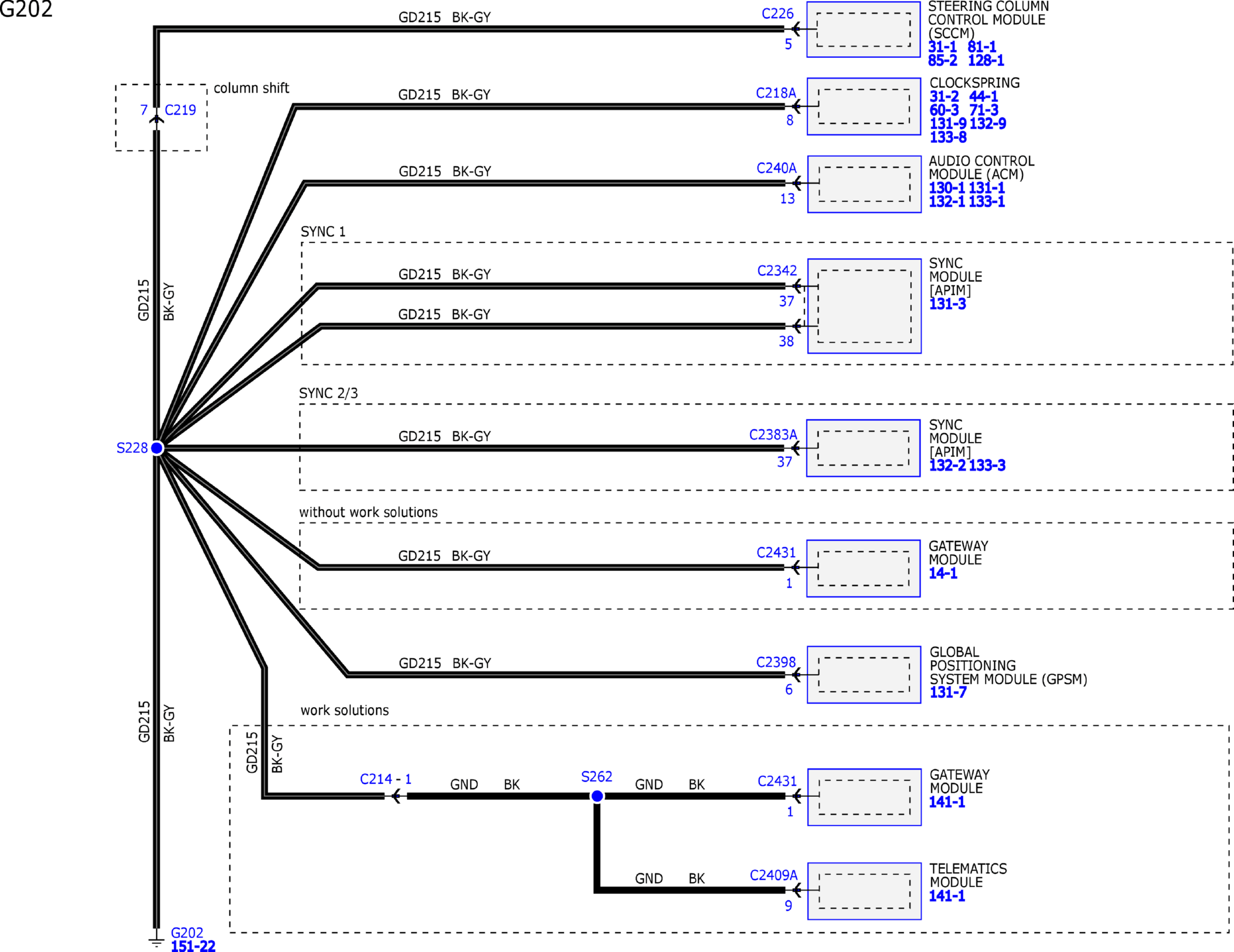

GFDW74950Courtesy of FORD MOTOR COMPANY

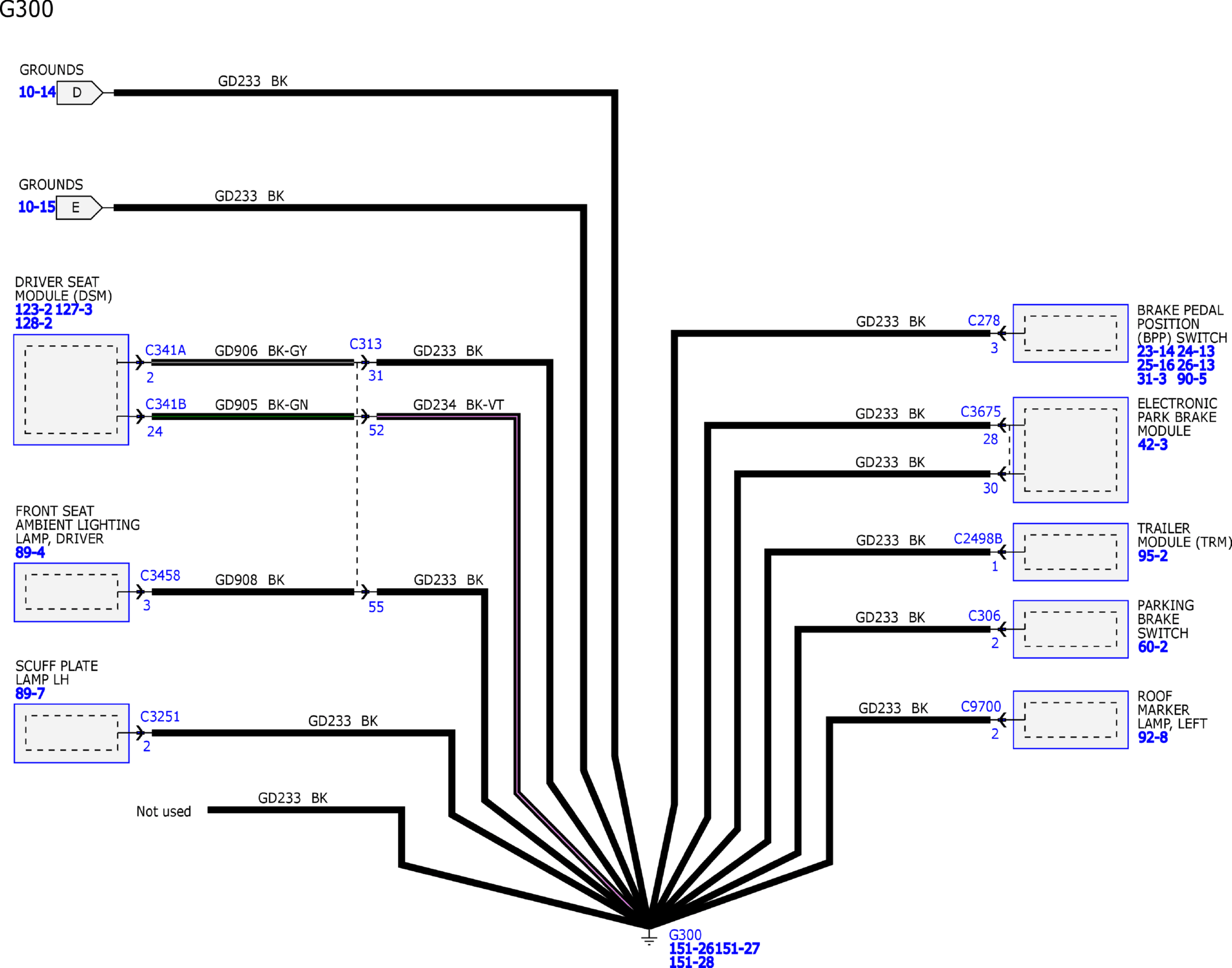

GFDW74951Courtesy of FORD MOTOR COMPANY

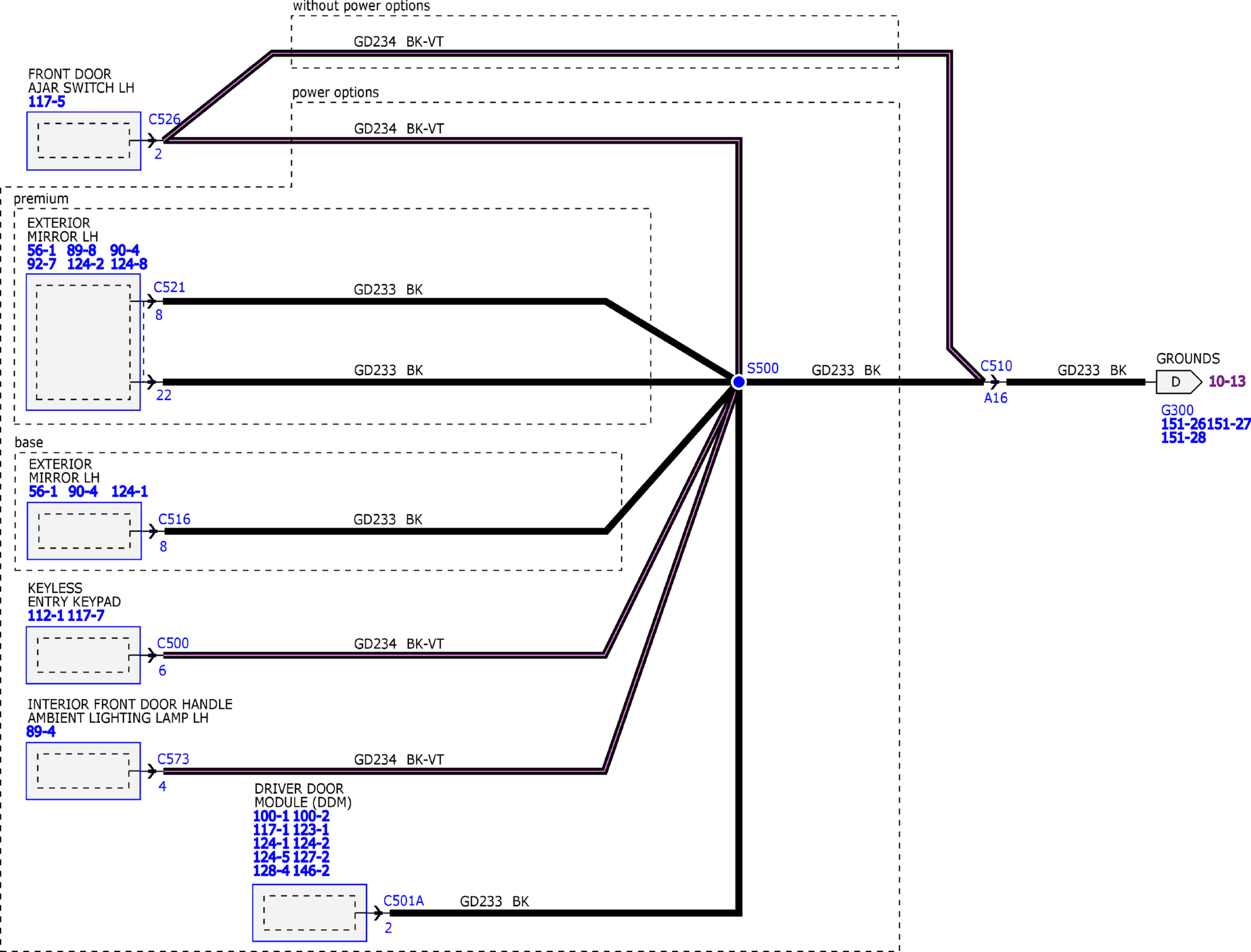

GFDW74952Courtesy of FORD MOTOR COMPANY

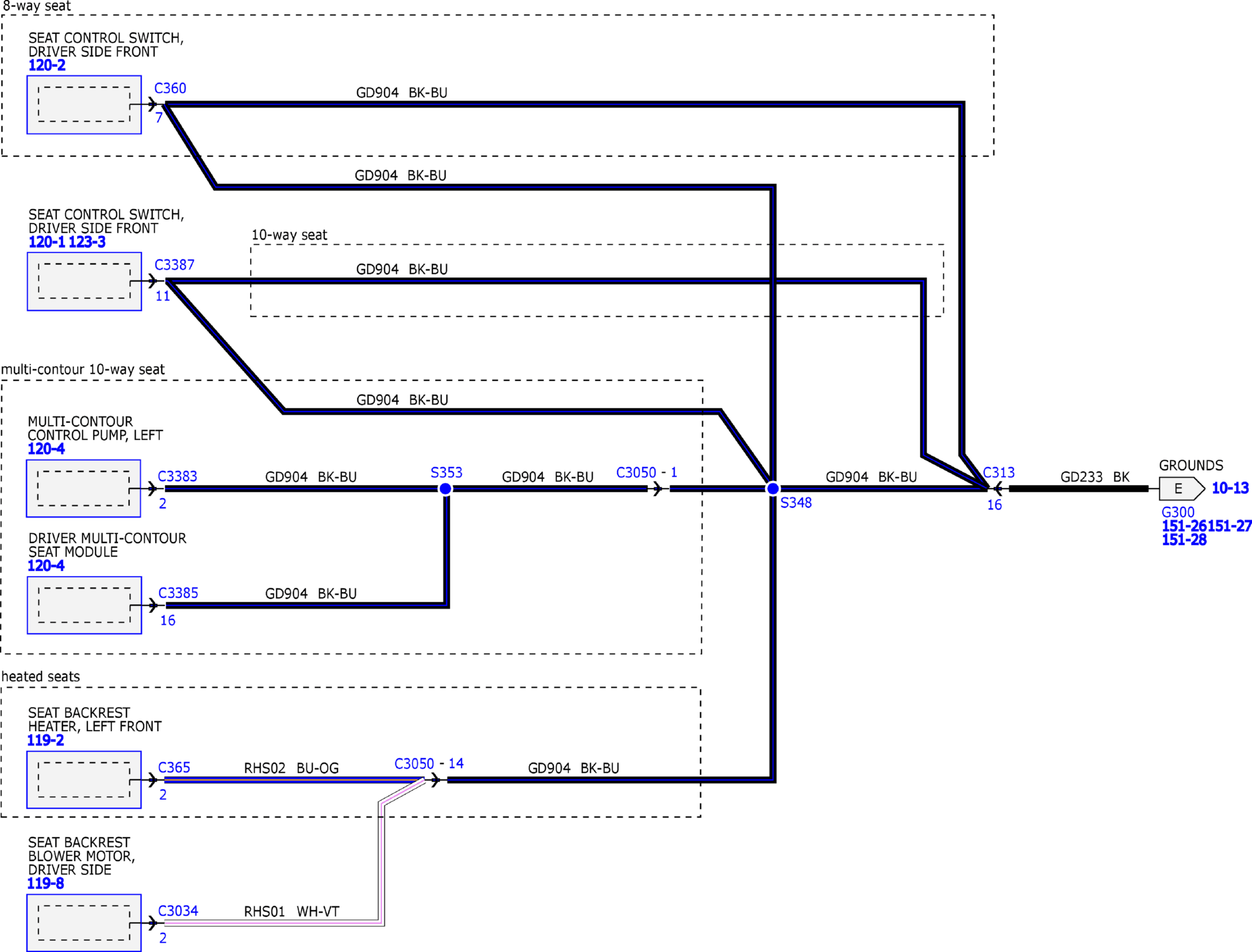

GFDW74953Courtesy of FORD MOTOR COMPANY

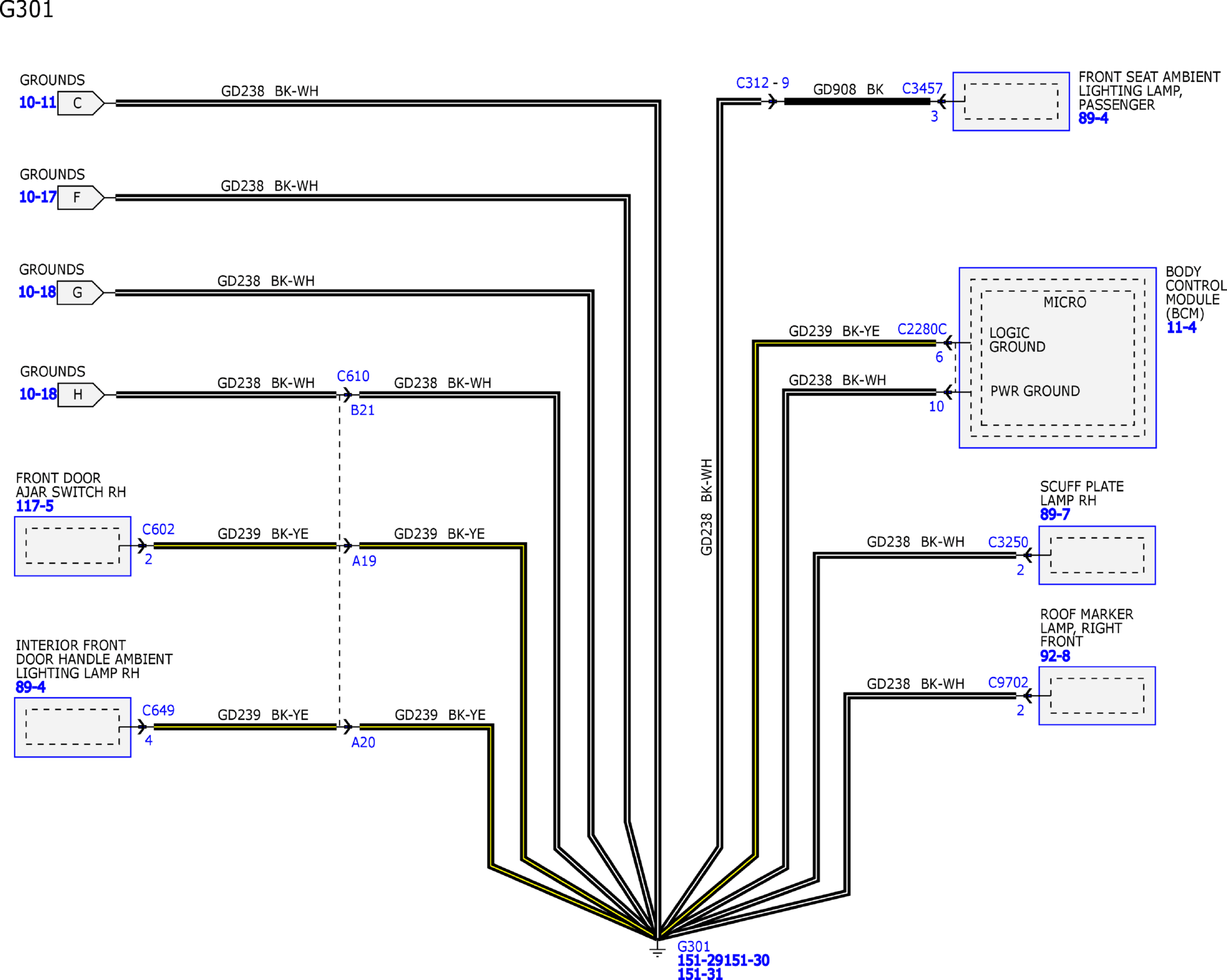

GFDW74954Courtesy of FORD MOTOR COMPANY

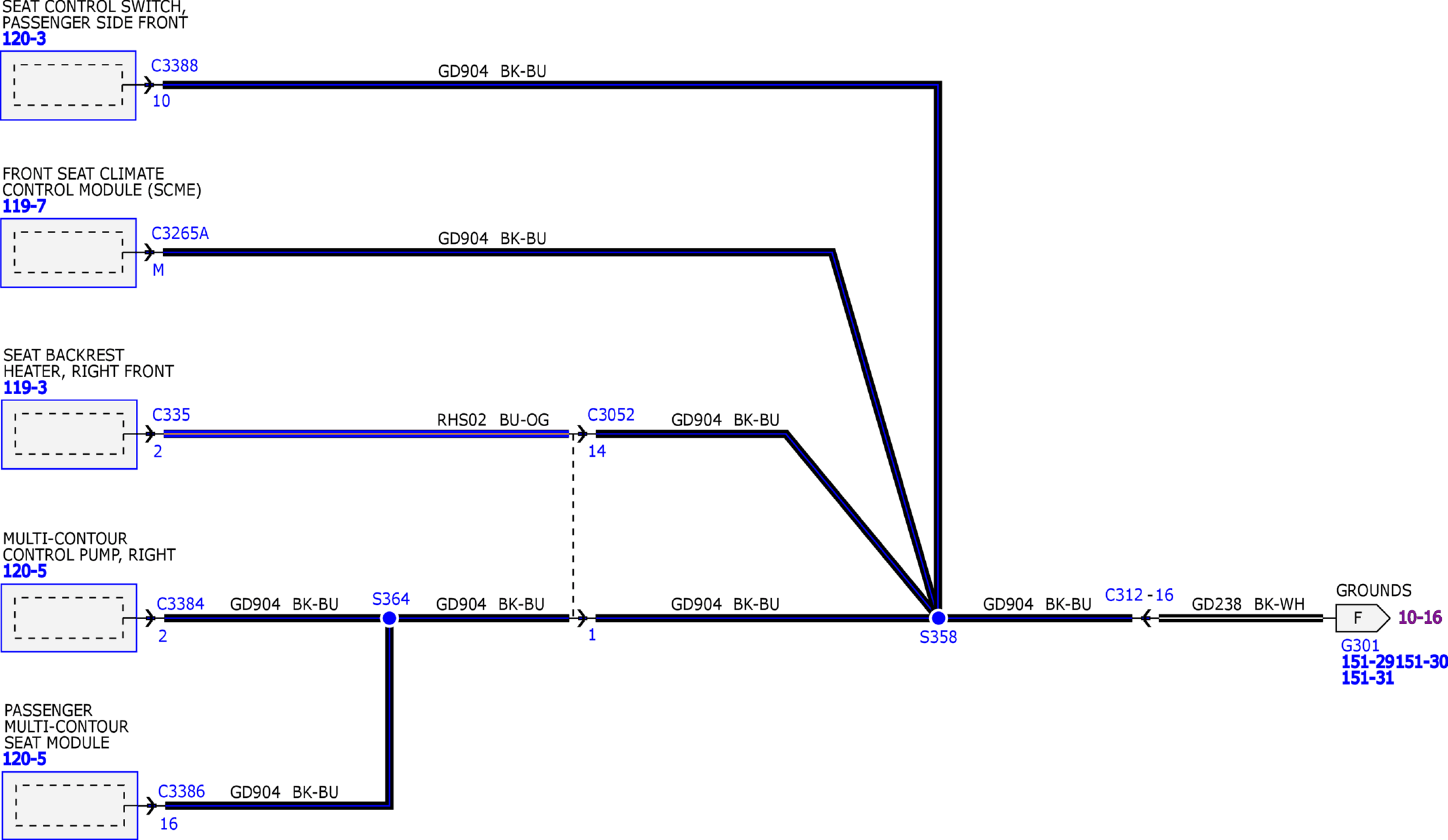

GFDW74955Courtesy of FORD MOTOR COMPANY

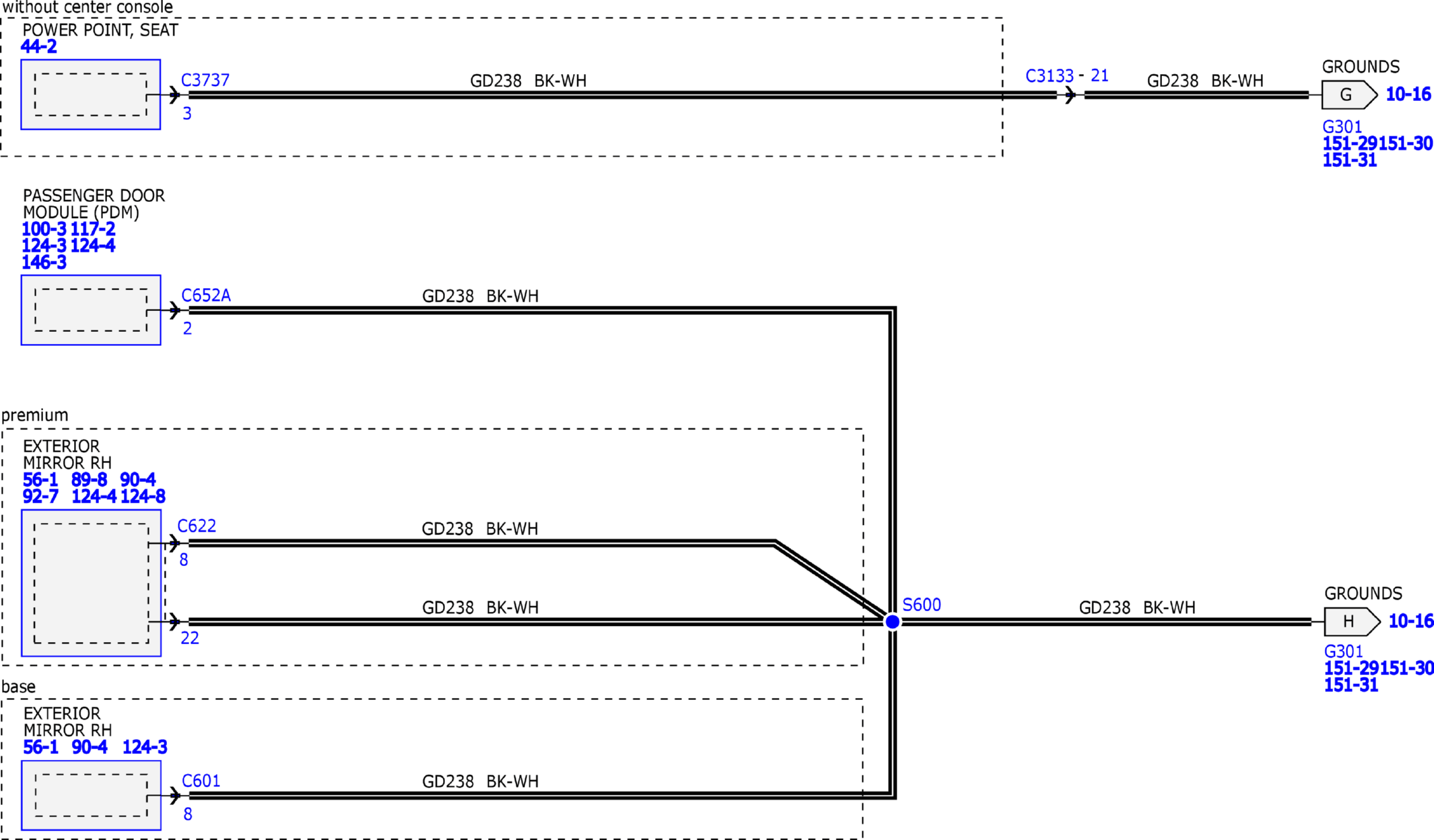

GFDW74956Courtesy of FORD MOTOR COMPANY

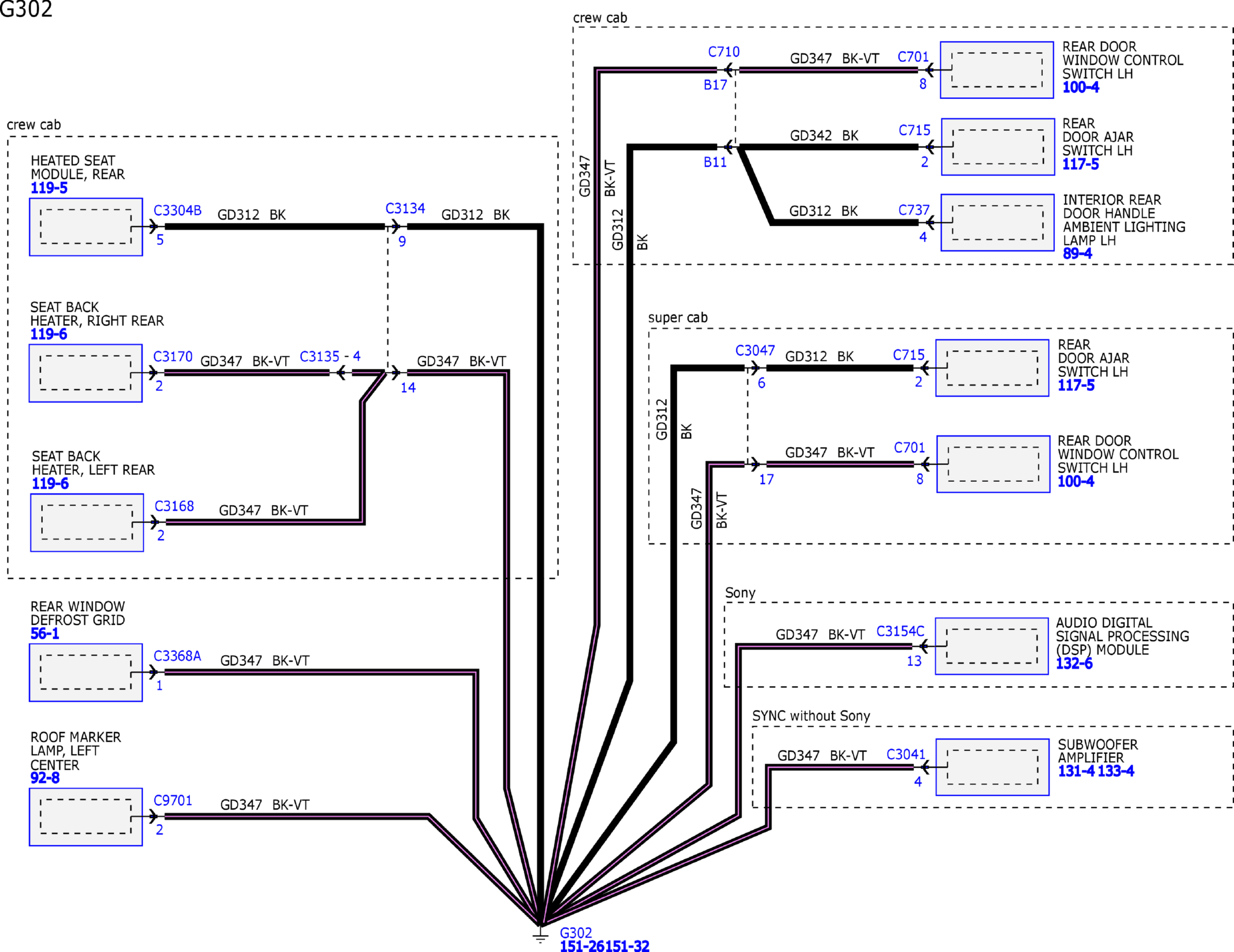

GFDW74957Courtesy of FORD MOTOR COMPANY

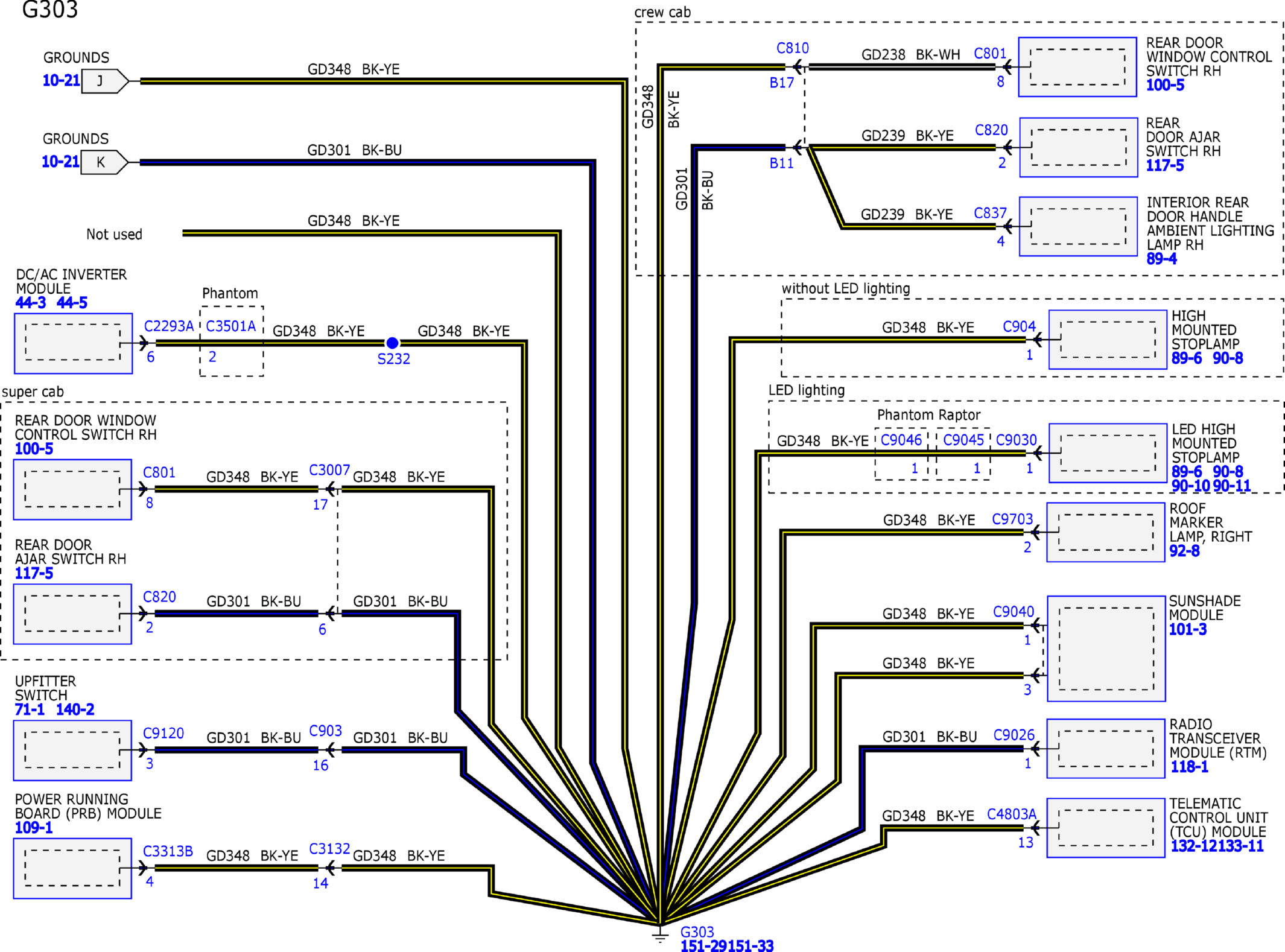

GFDW74958Courtesy of FORD MOTOR COMPANY

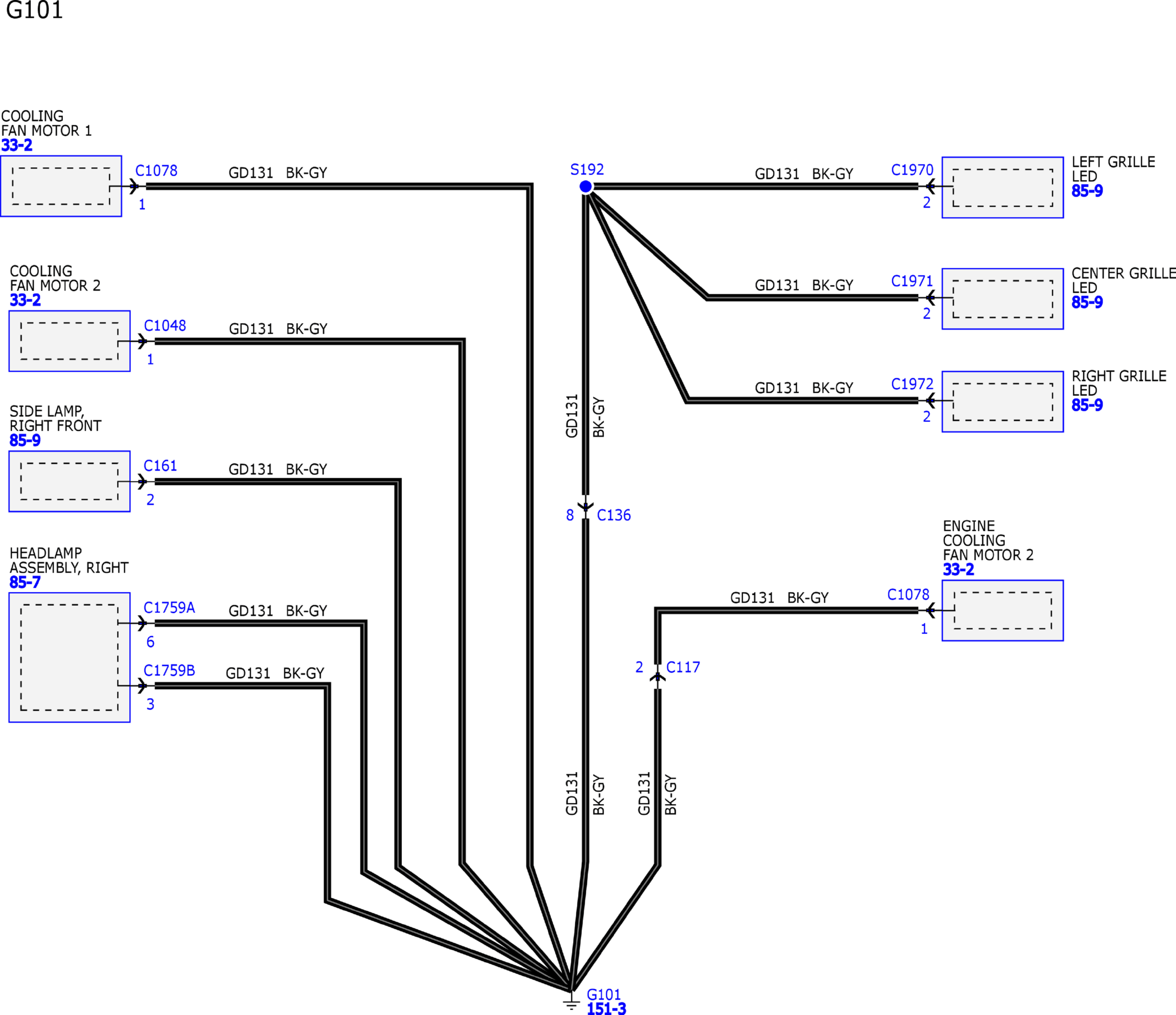

GFDW74959Courtesy of FORD MOTOR COMPANY

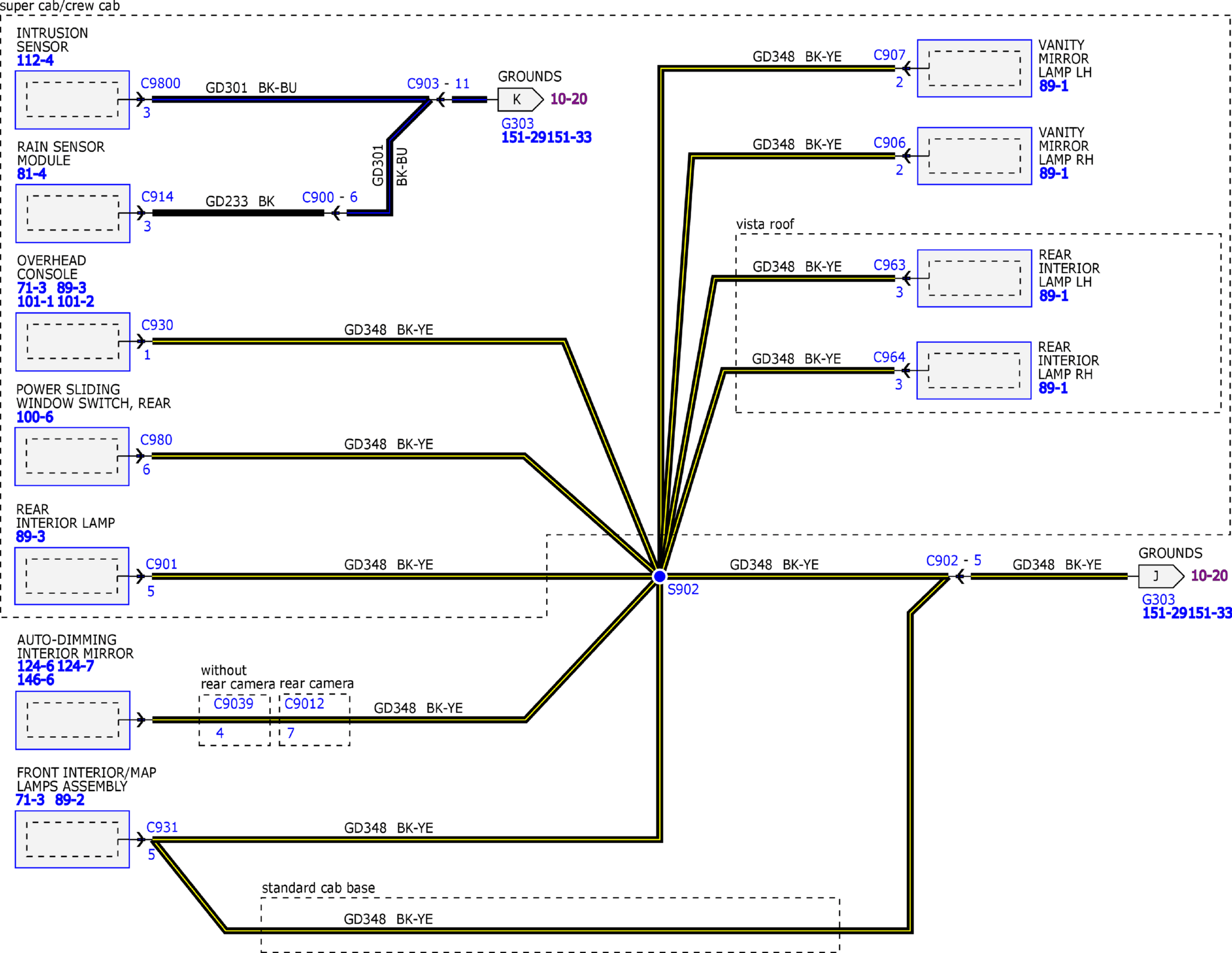

GFDW74960Courtesy of FORD MOTOR COMPANY

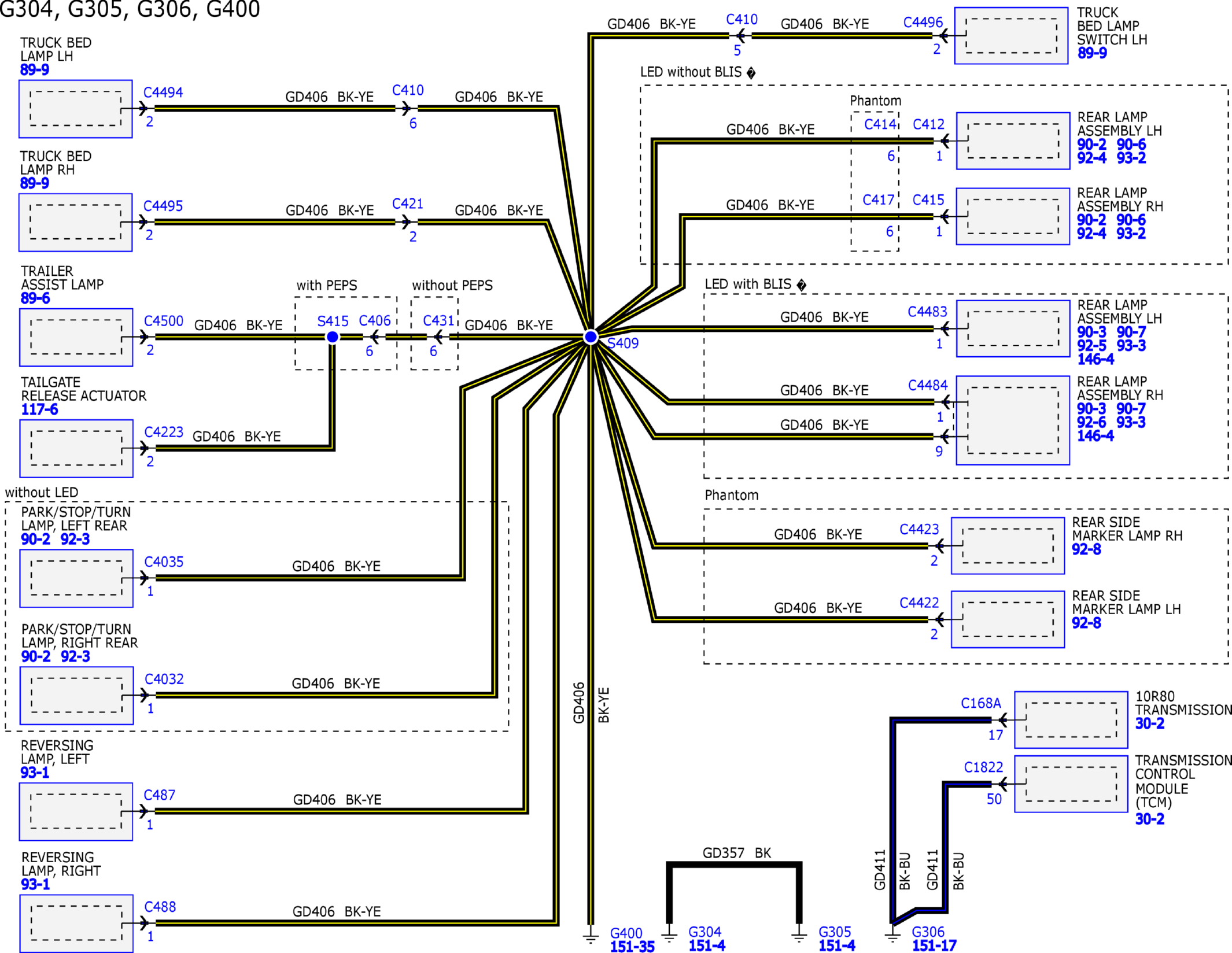

GFDW74961Courtesy of FORD MOTOR COMPANY

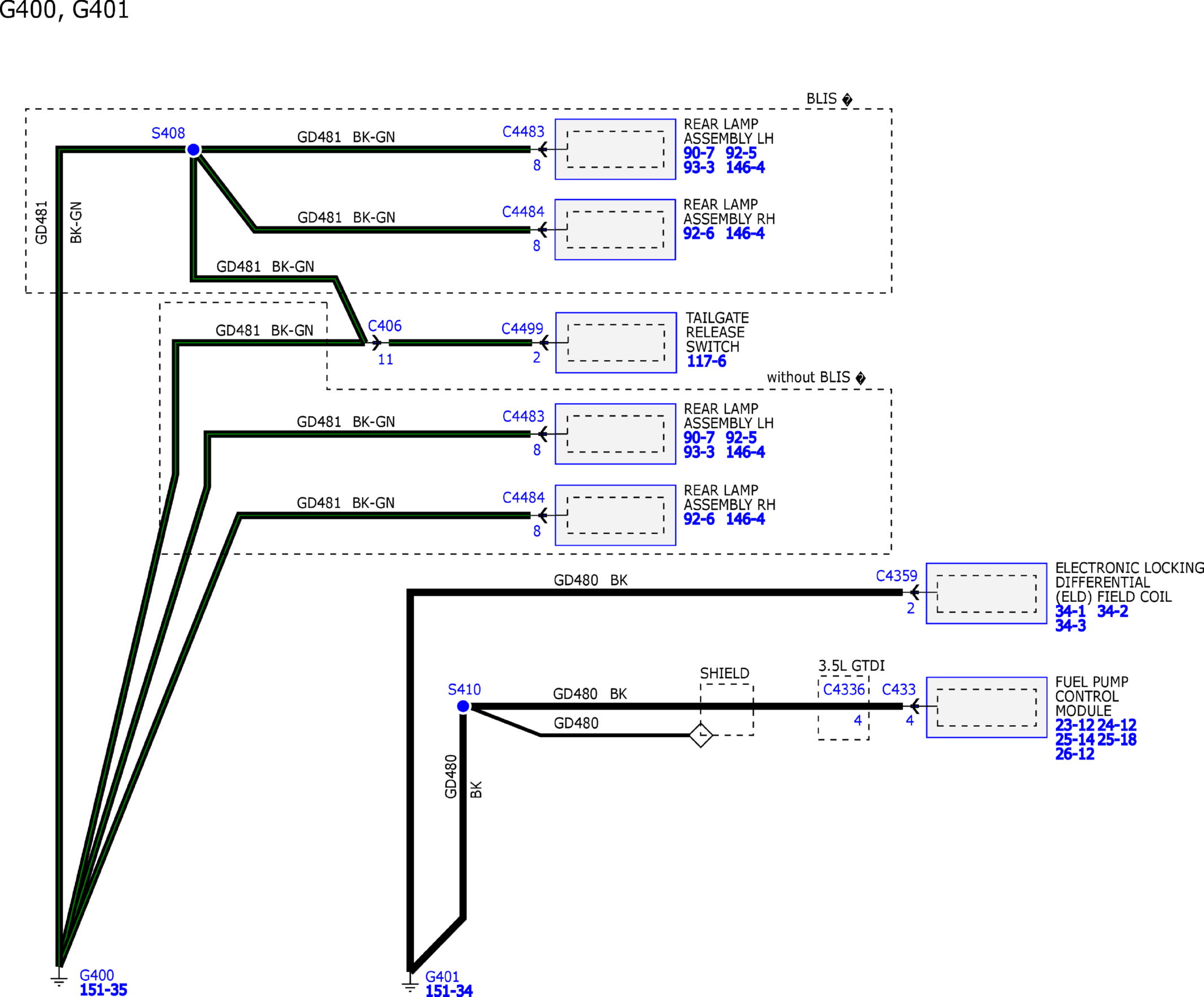

GFDW74962Courtesy of FORD MOTOR COMPANY

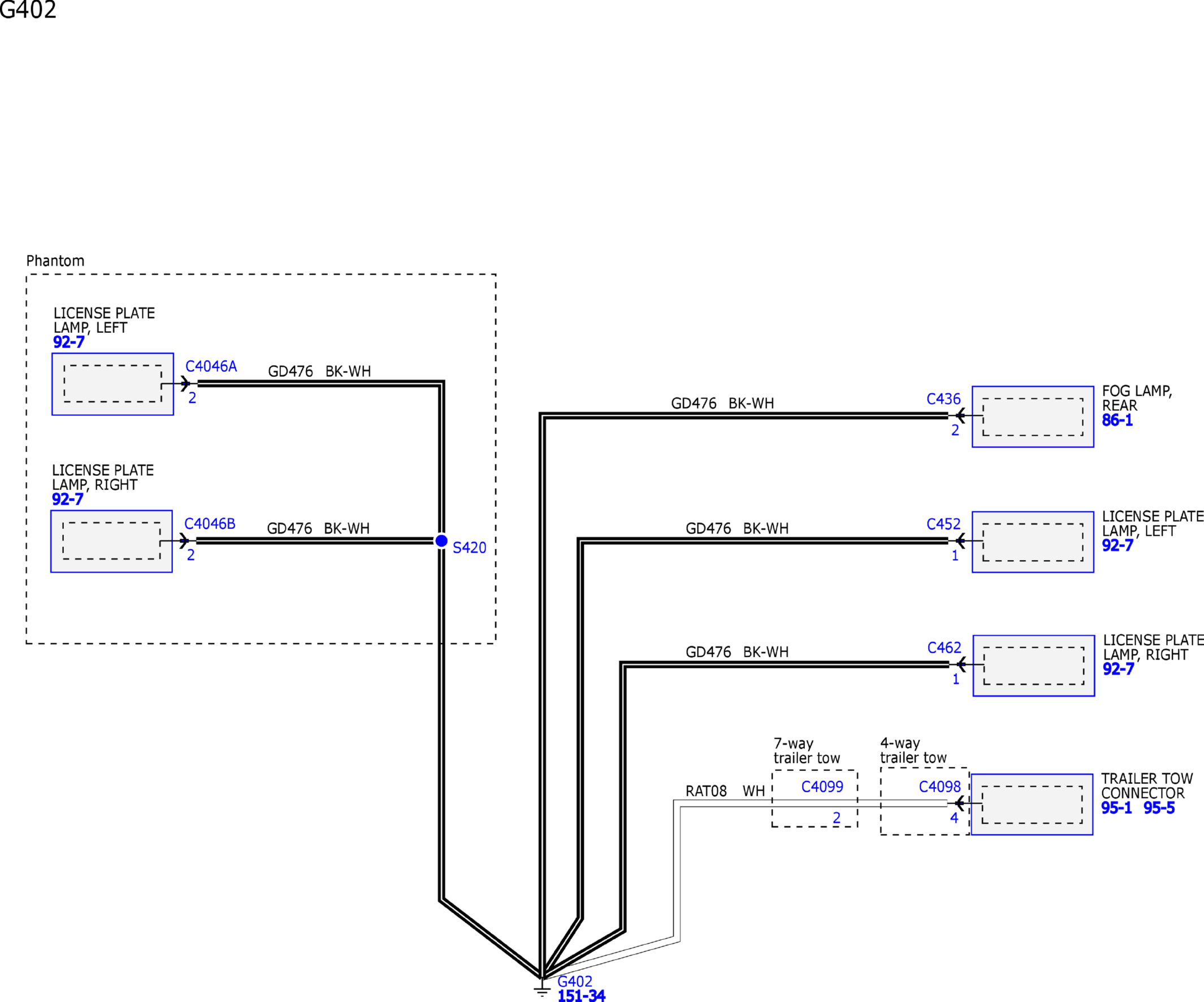

GFDW74963Courtesy of FORD MOTOR COMPANY

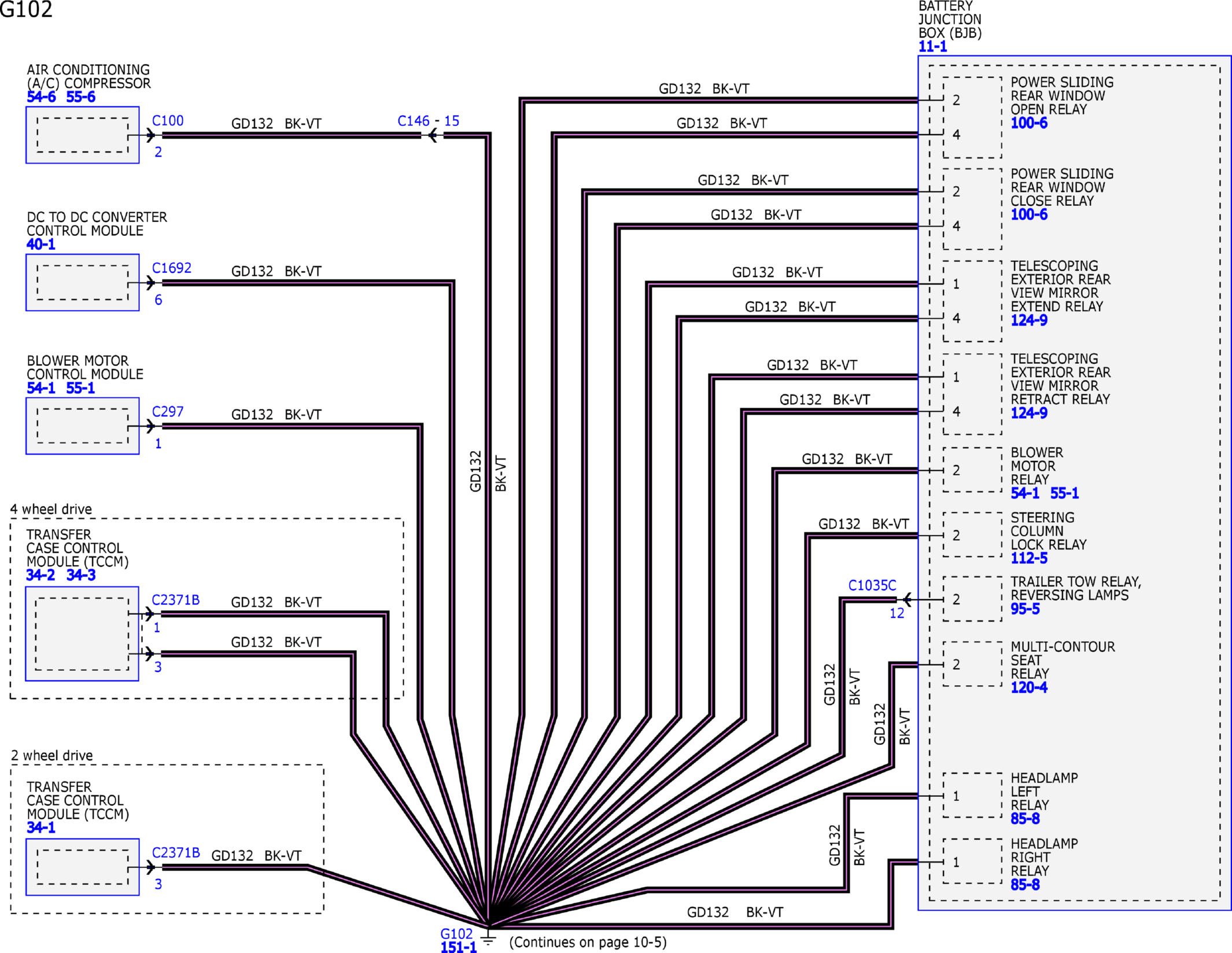

GFDW74964Courtesy of FORD MOTOR COMPANY

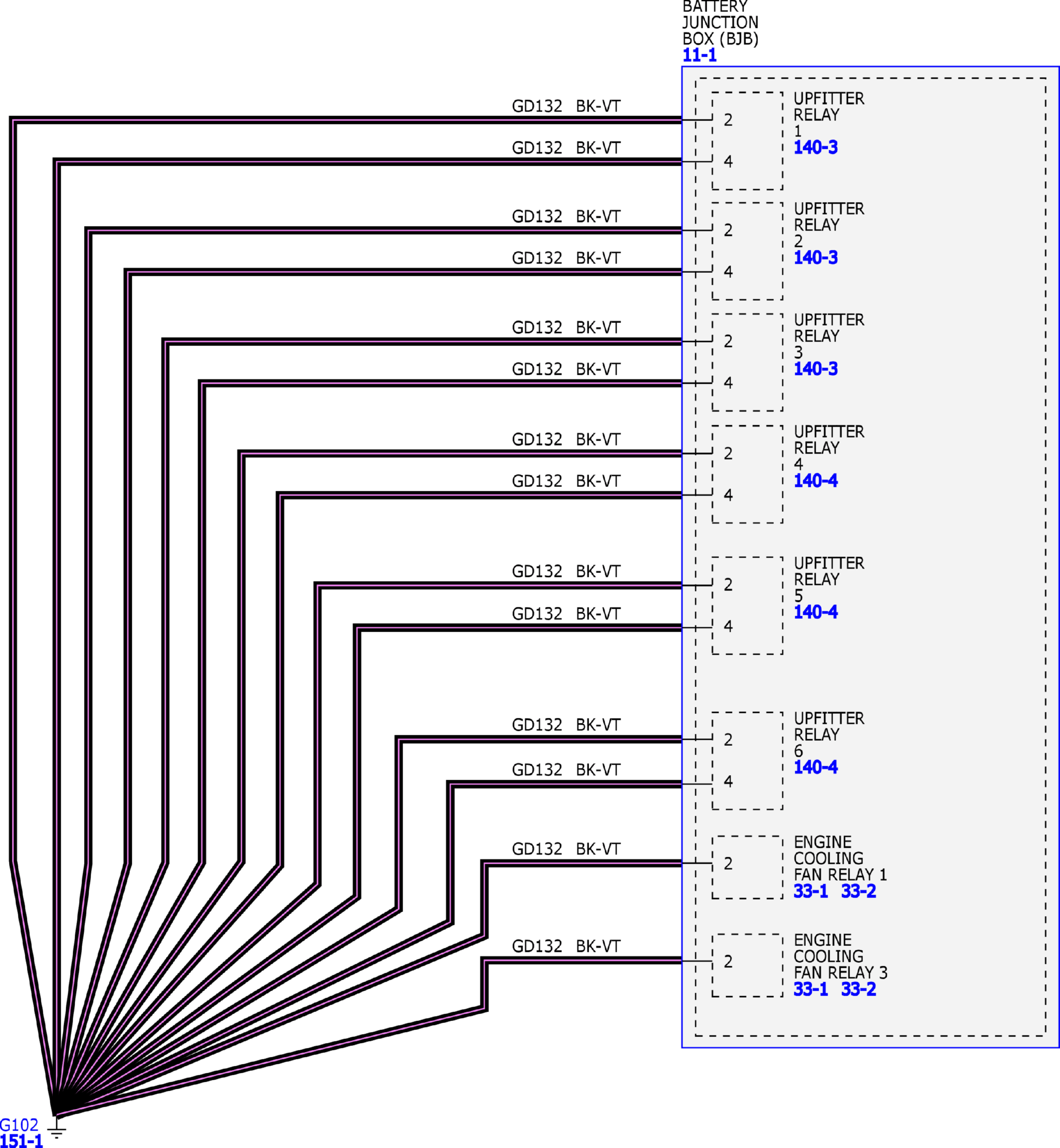

GFDW74965Courtesy of FORD MOTOR COMPANY

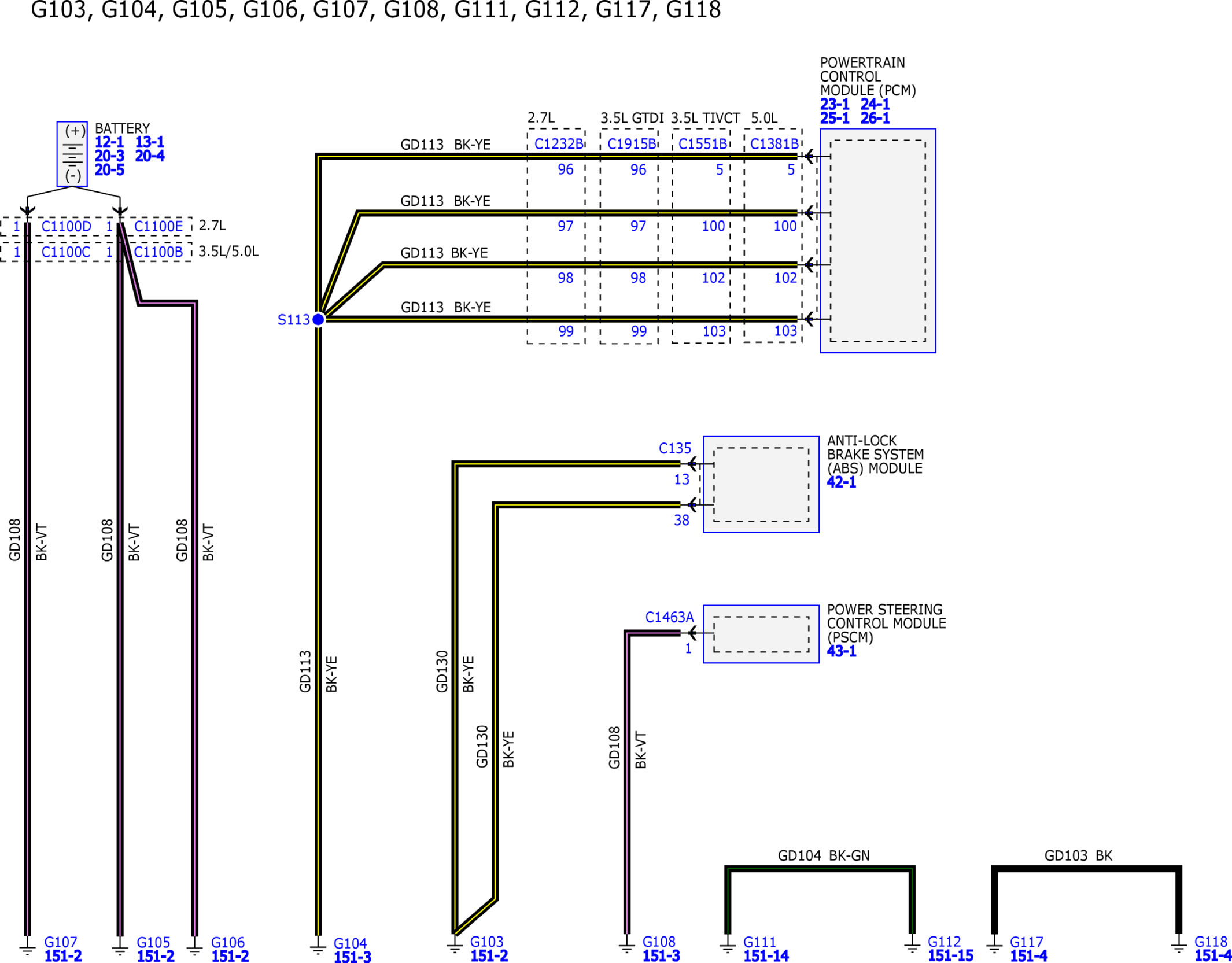

GFDW74966Courtesy of FORD MOTOR COMPANY

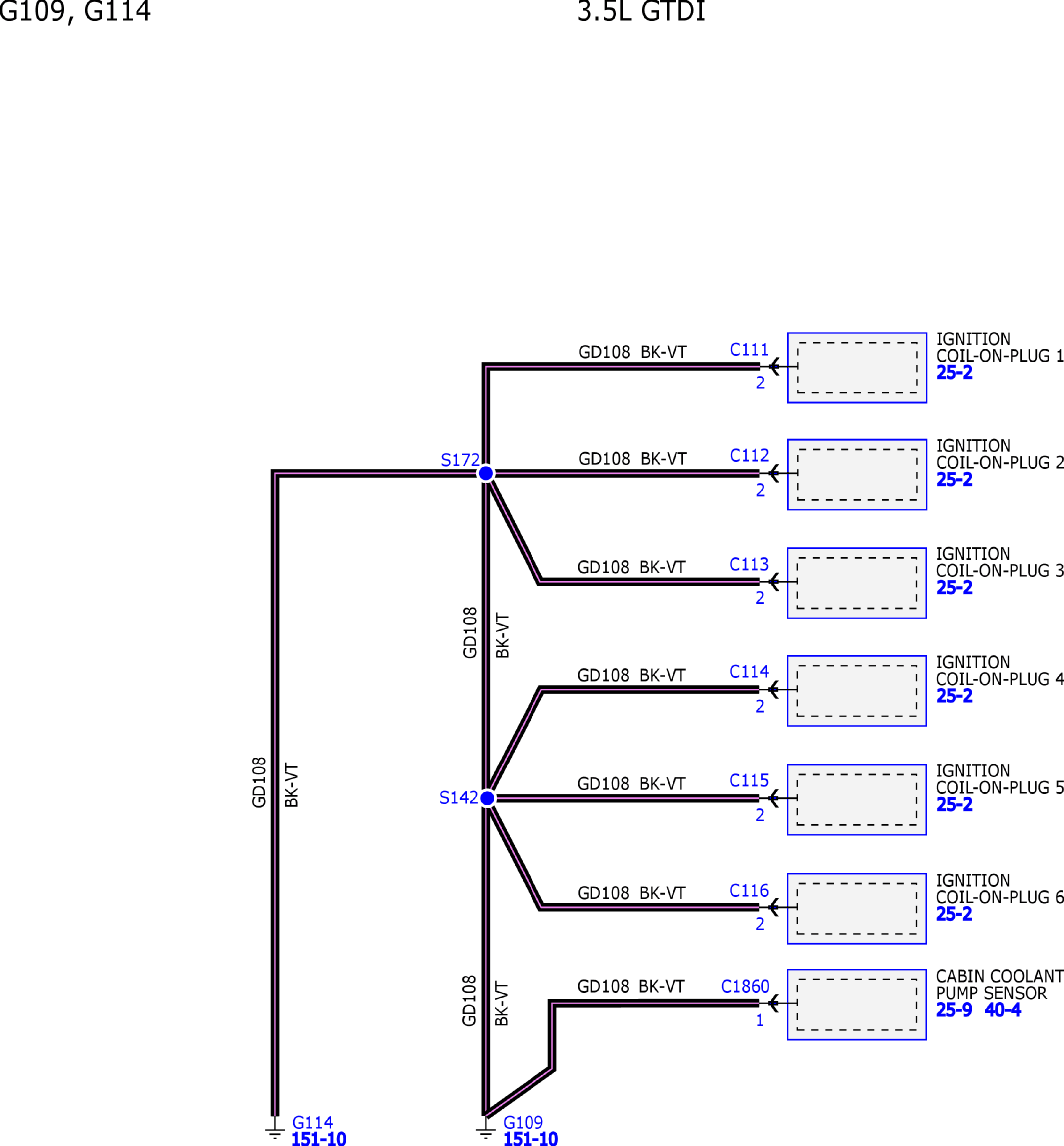

GFDW74967Courtesy of FORD MOTOR COMPANY

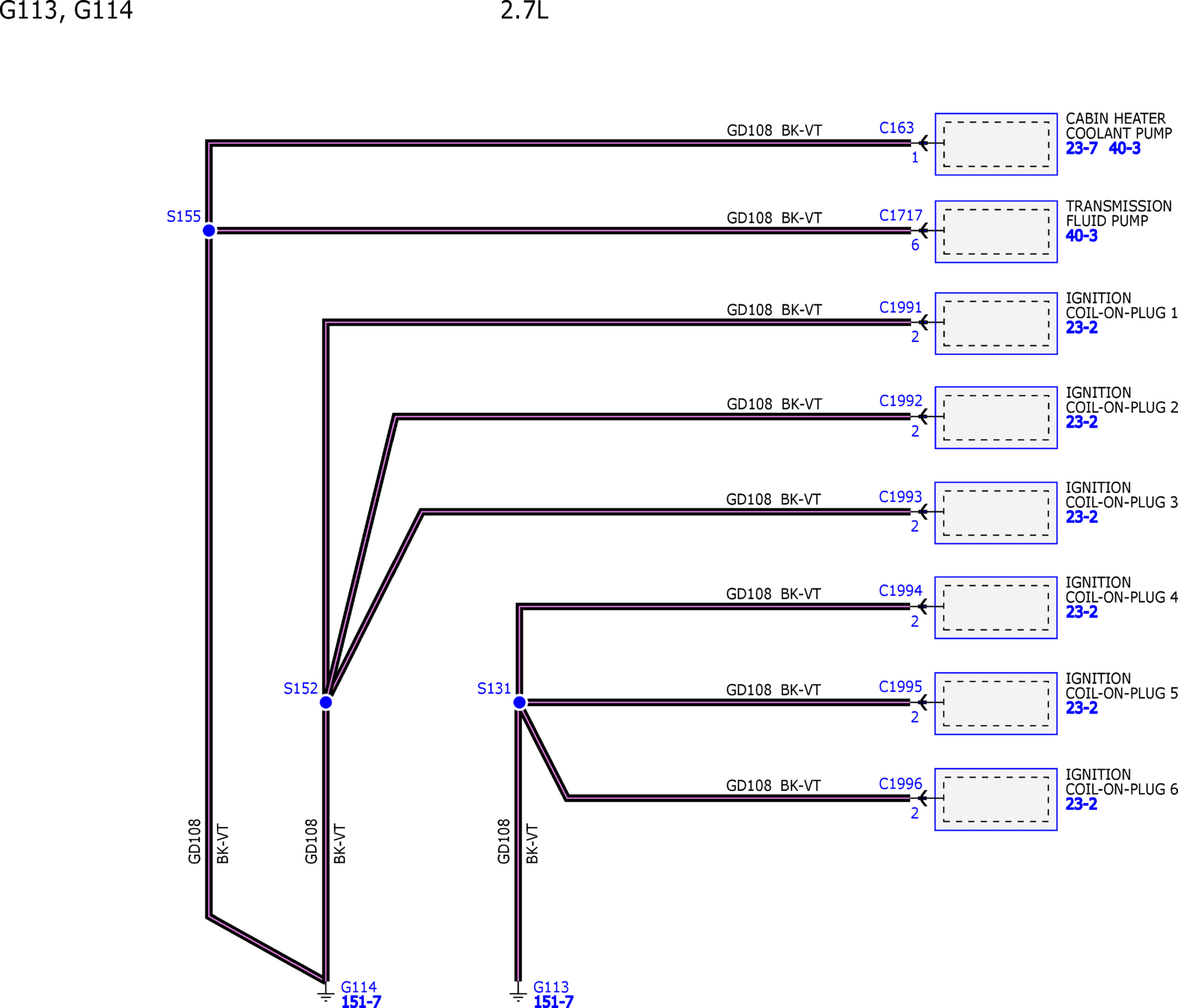

GFDW74968Courtesy of FORD MOTOR COMPANY

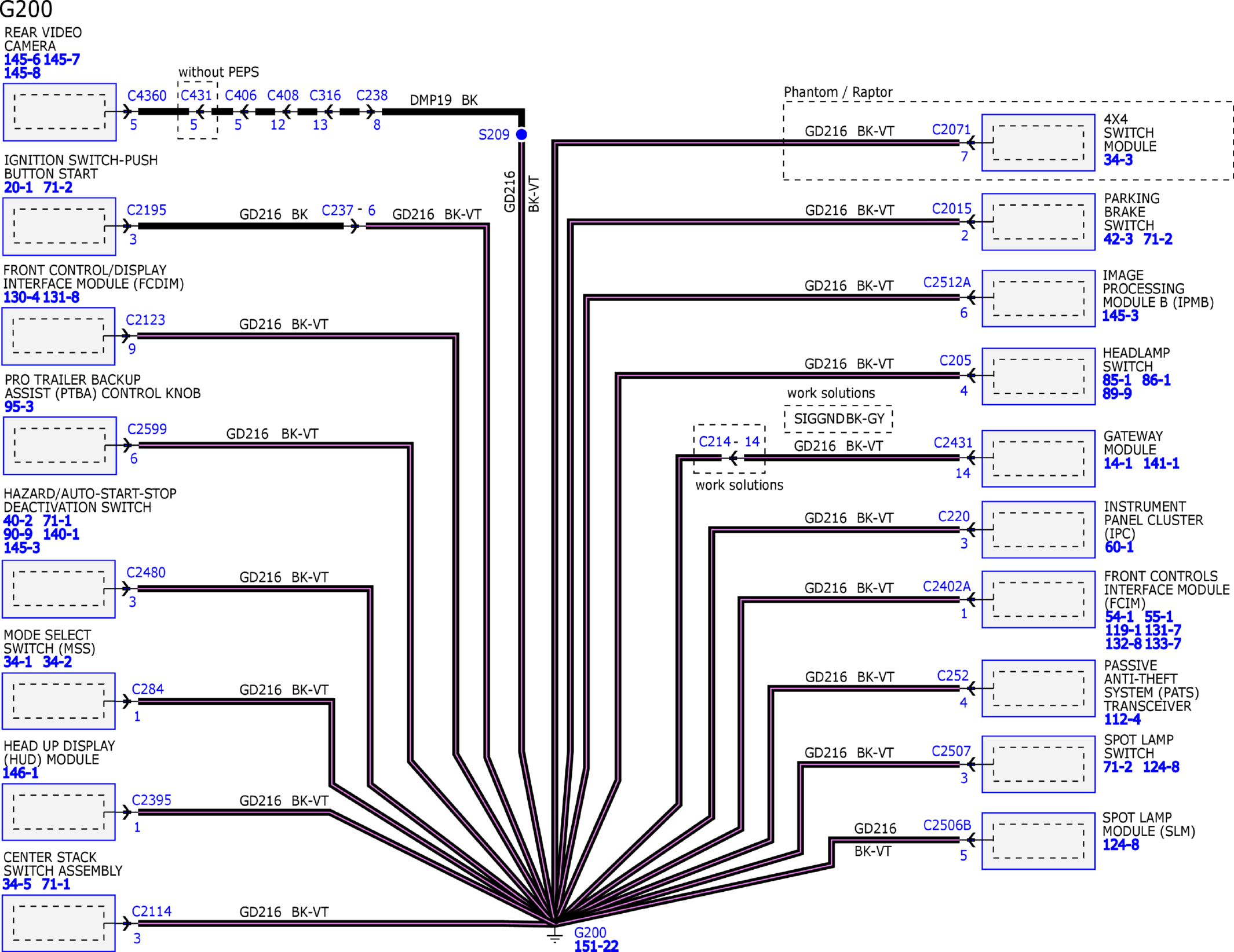

GFDW74969Courtesy of FORD MOTOR COMPANY

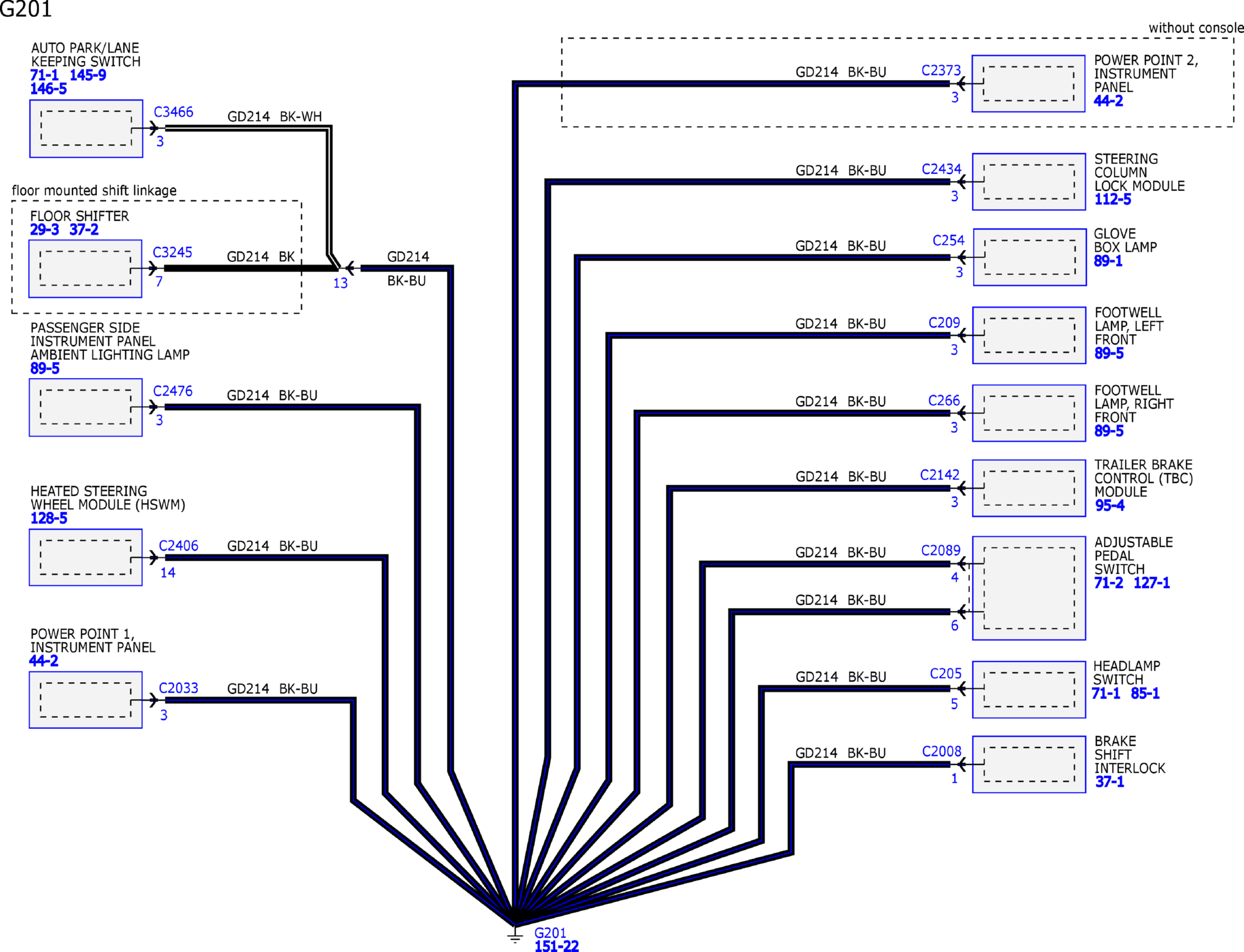

GFDW74970Courtesy of FORD MOTOR COMPANY
