Strut and Spring Assembly: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

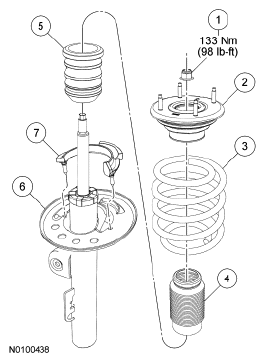

Fig 1: Exploded View Of Strut And Spring Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713968	Strut rod nut
2	18183	Upper strut mount
3	5310	Spring
4	18A047	Dust boot
5	18198	Jounce bumper
6	18124	Strut
7	5415	Lower spring isolator
