Module Controlled Functions - Component Location

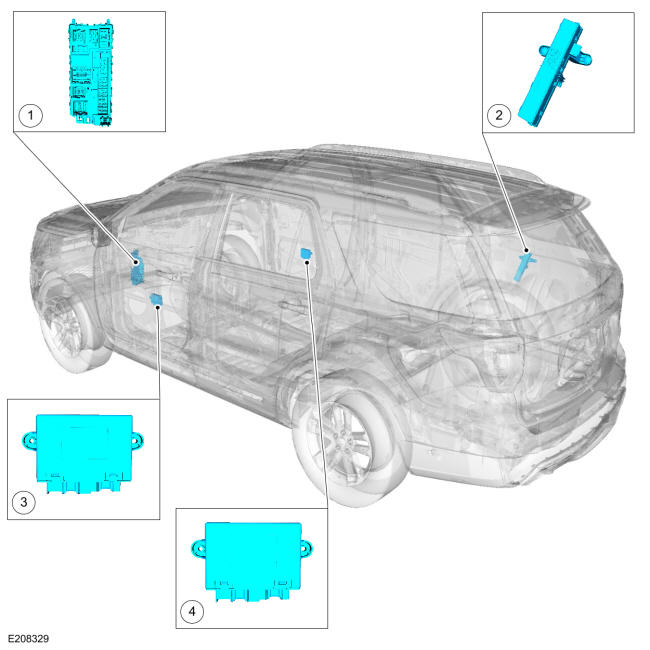

Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
RTM
3
DDM
4
PDM
Courtesy of FORD MOTOR COMPANY
