Module Communications Network

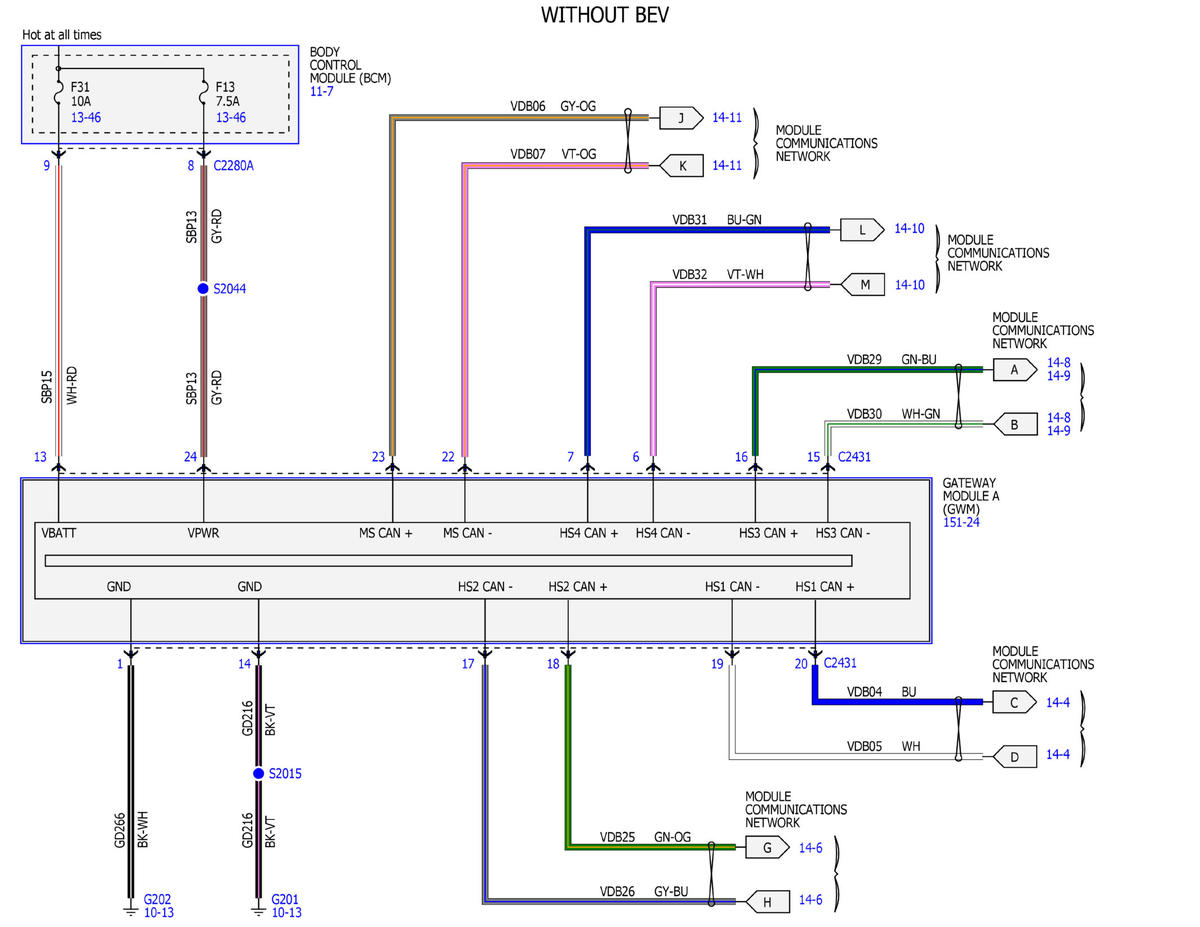

Fig 1: Module Communications Network Wiring Diagram (1 Of 26)

GFDWR157471

Courtesy of FORD MOTOR COMPANY

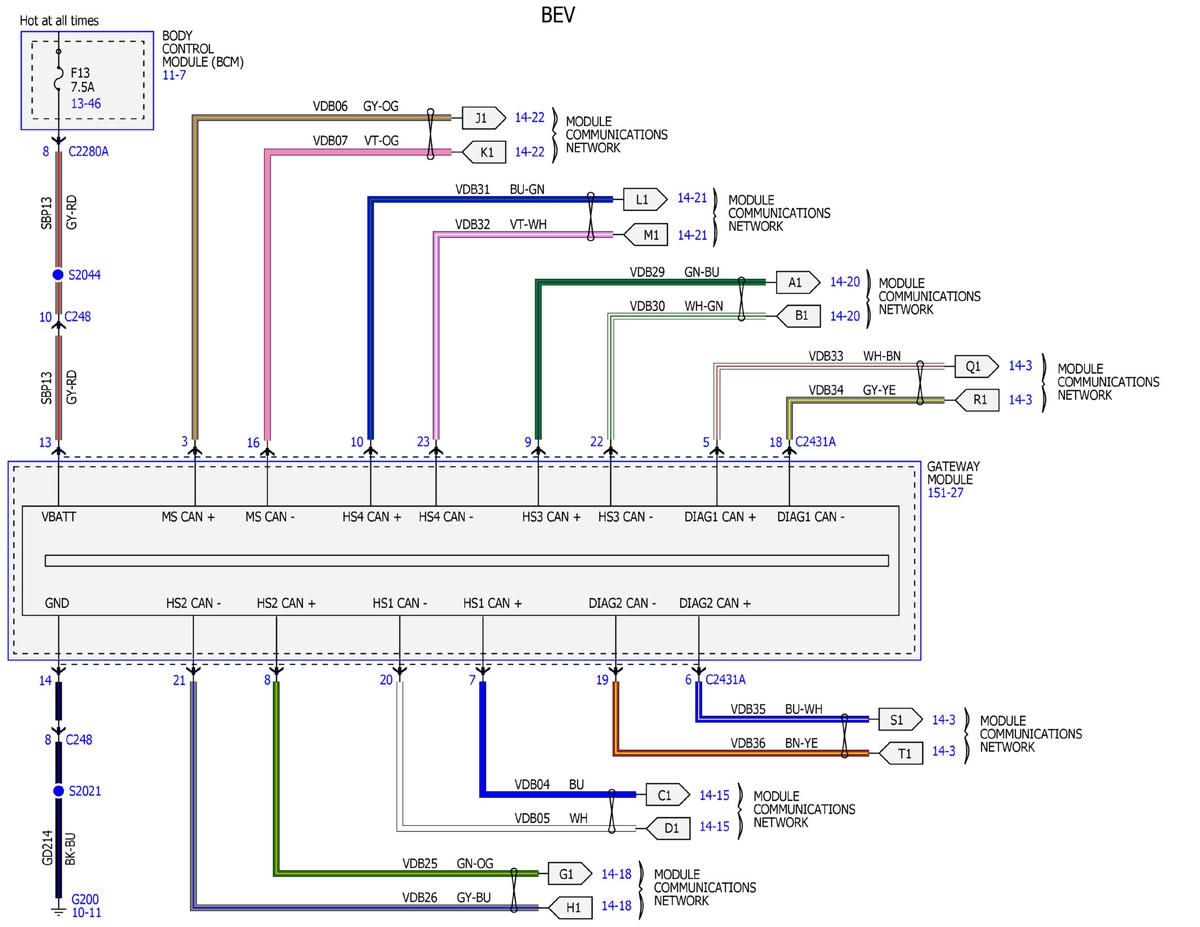

Fig 2: Module Communications Network Wiring Diagram (2 Of 26)

GFDWR157482

Courtesy of FORD MOTOR COMPANY

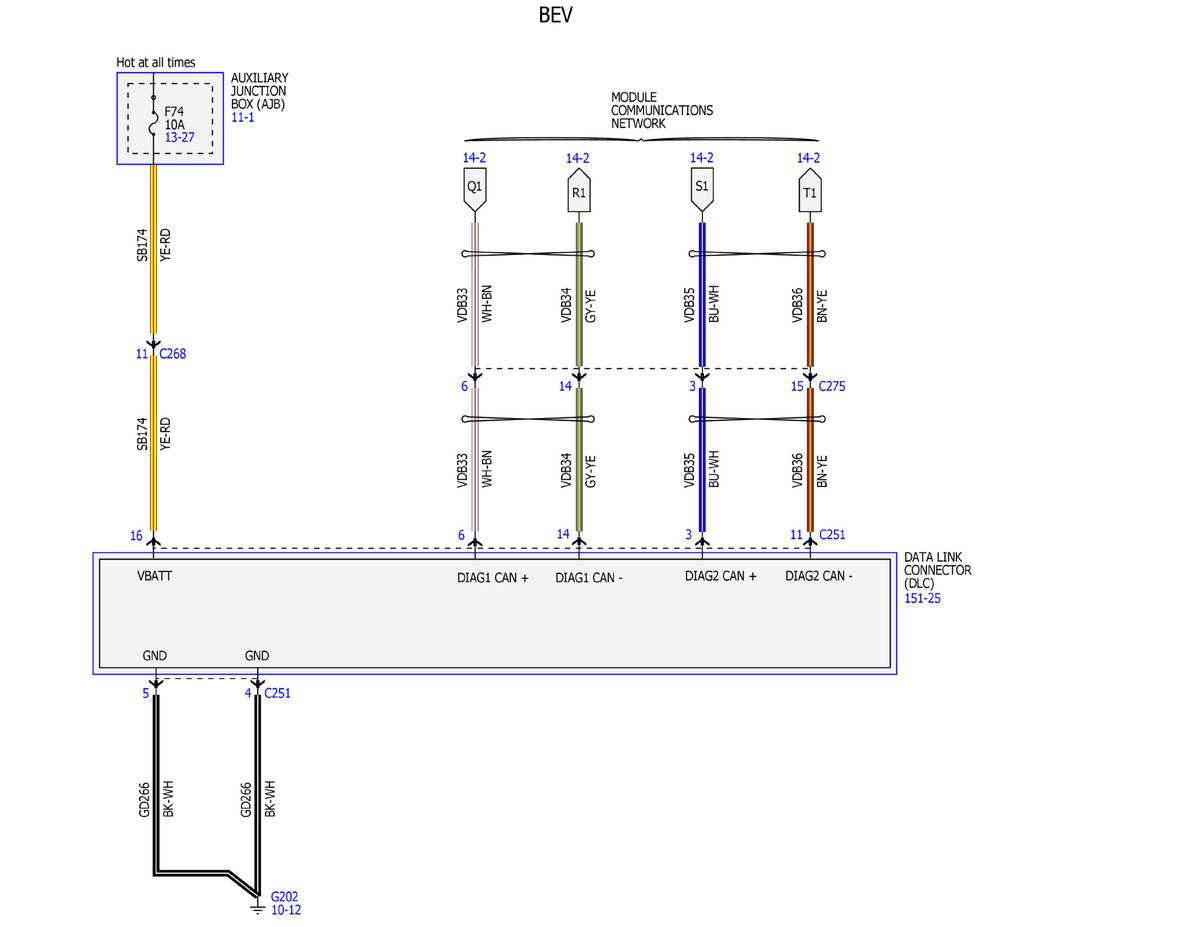

Fig 3: Module Communications Network Wiring Diagram (3 Of 26)

GFDWR157490

Courtesy of FORD MOTOR COMPANY

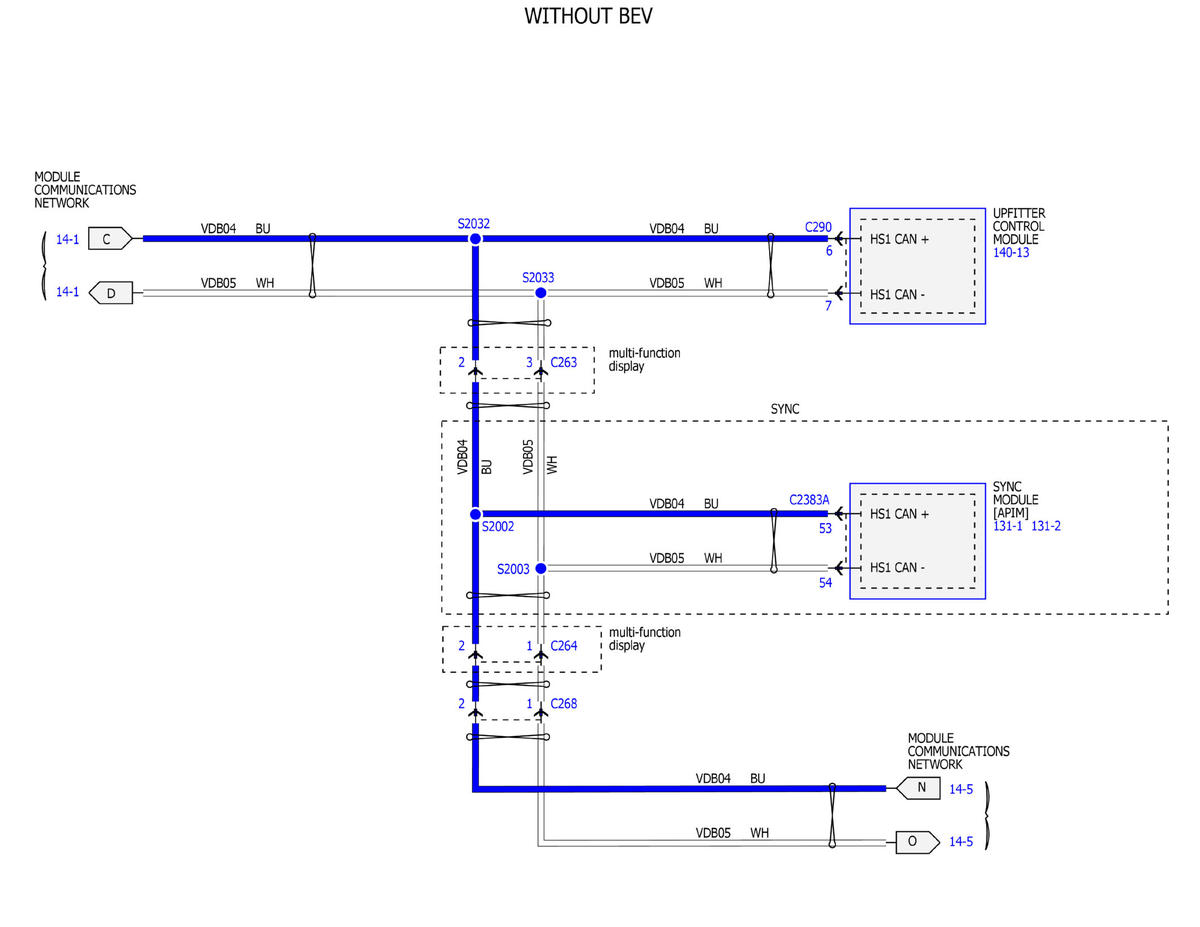

Fig 4: Module Communications Network Wiring Diagram (4 Of 26)

GFDWR157491

Courtesy of FORD MOTOR COMPANY

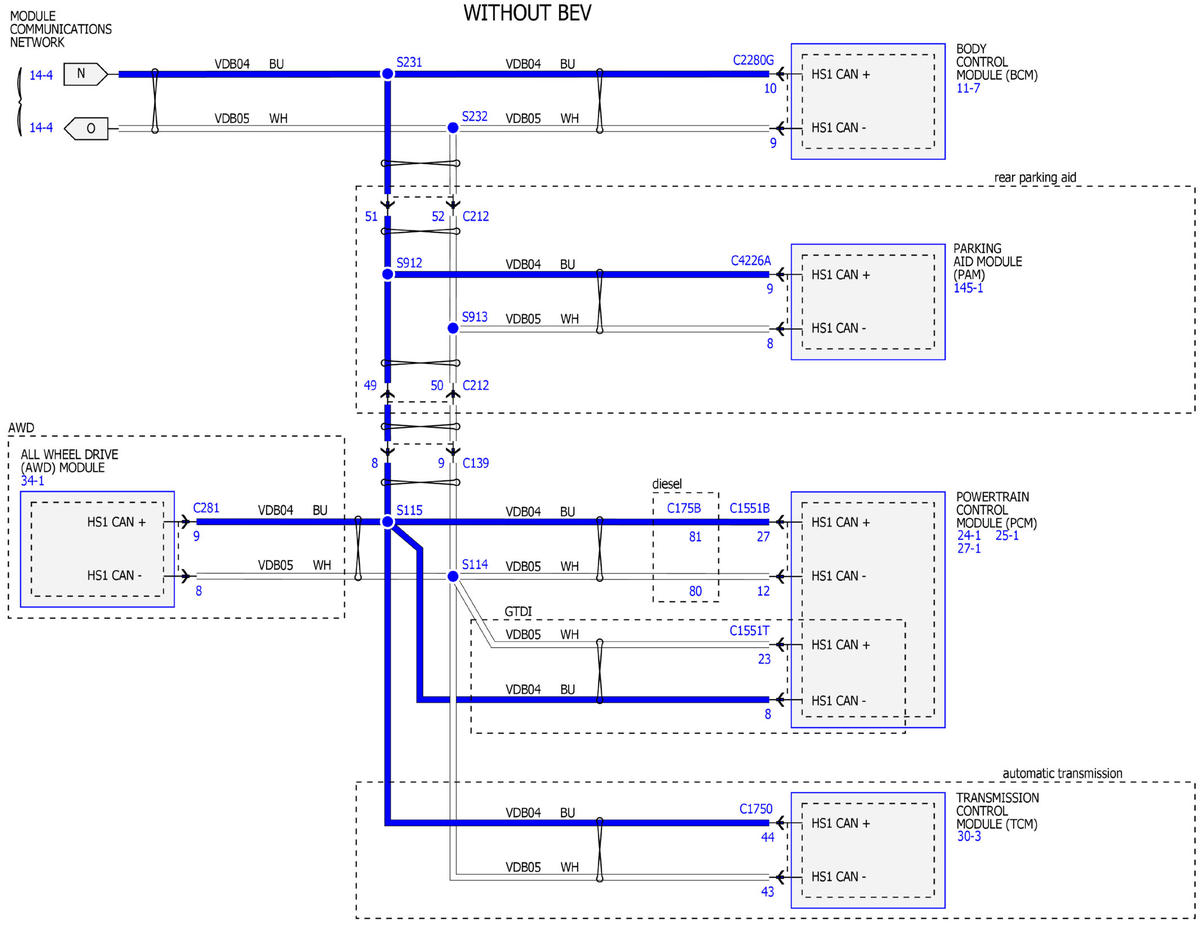

Fig 5: Module Communications Network Wiring Diagram (5 Of 26)

GFDWR157492

Courtesy of FORD MOTOR COMPANY

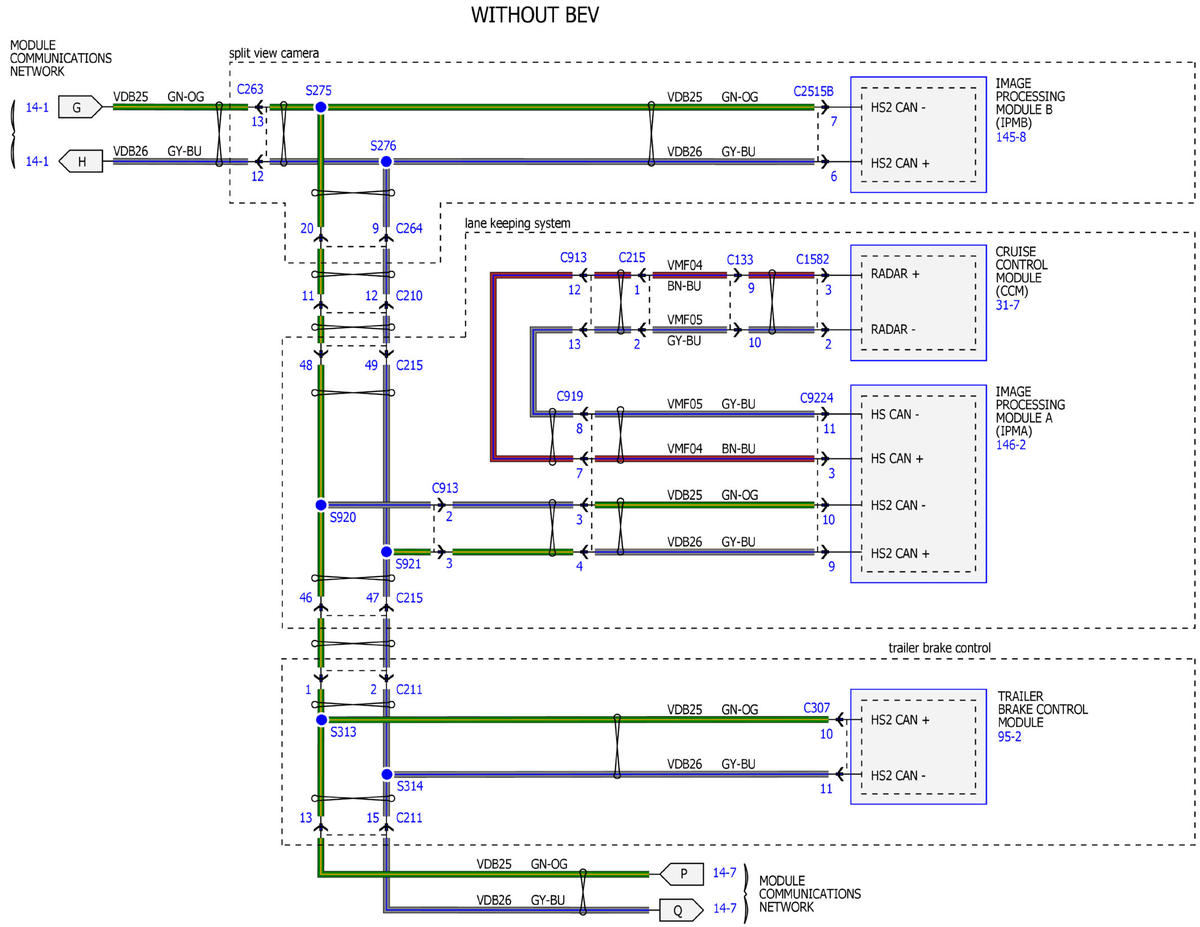

Fig 6: Module Communications Network Wiring Diagram (6 Of 26)

GFDWR157493

Courtesy of FORD MOTOR COMPANY

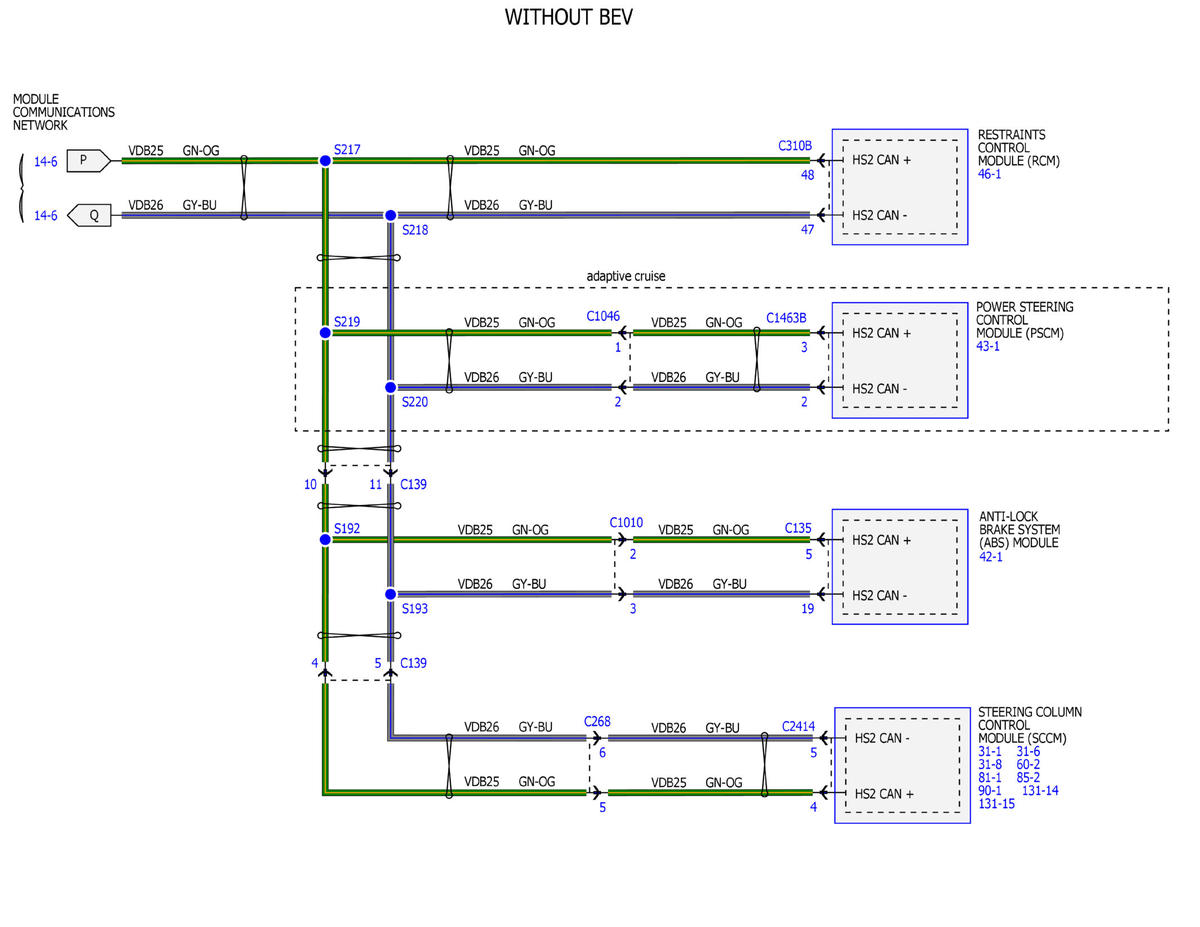

Fig 7: Module Communications Network Wiring Diagram (7 Of 26)

GFDWR157494

Courtesy of FORD MOTOR COMPANY

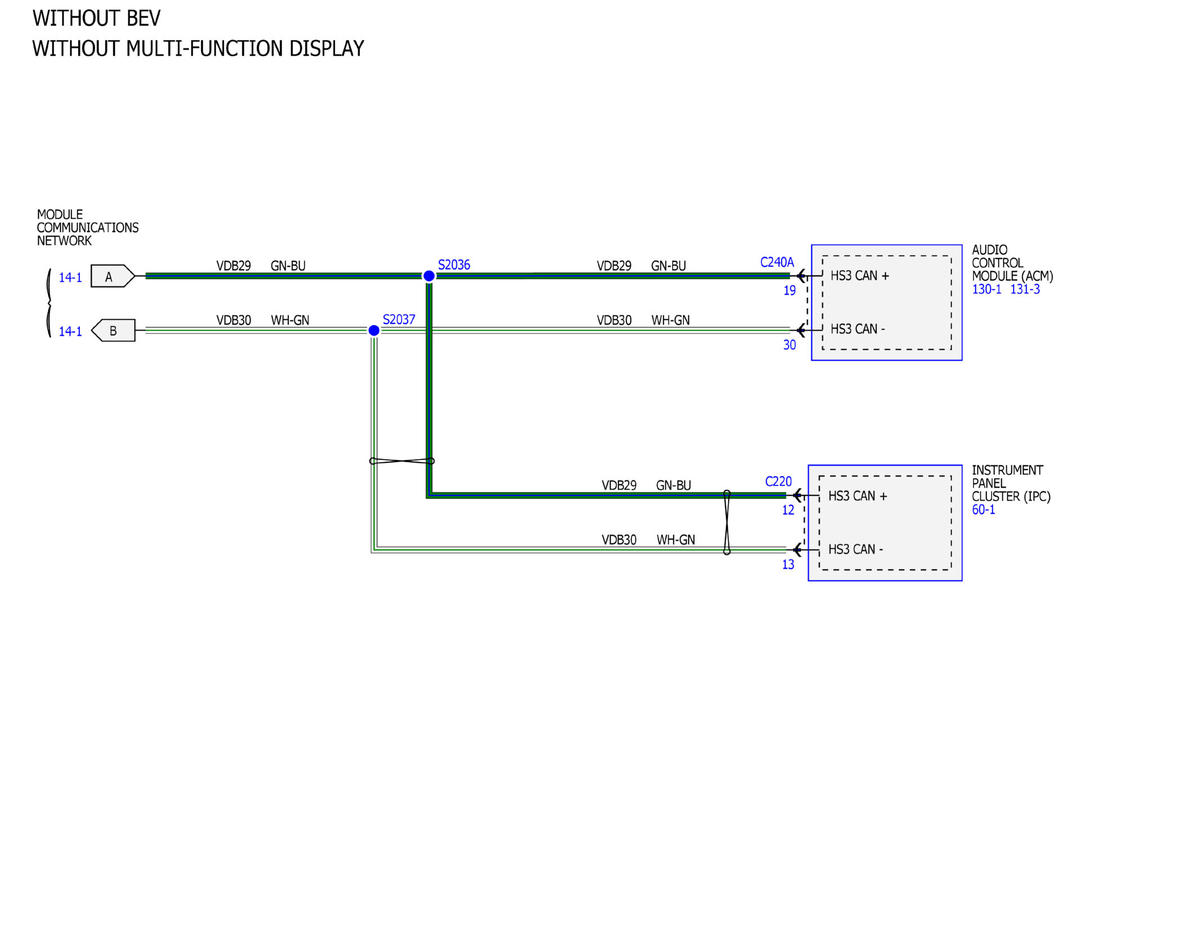

Fig 8: Module Communications Network Wiring Diagram (8 Of 26)

GFDWR157495

Courtesy of FORD MOTOR COMPANY

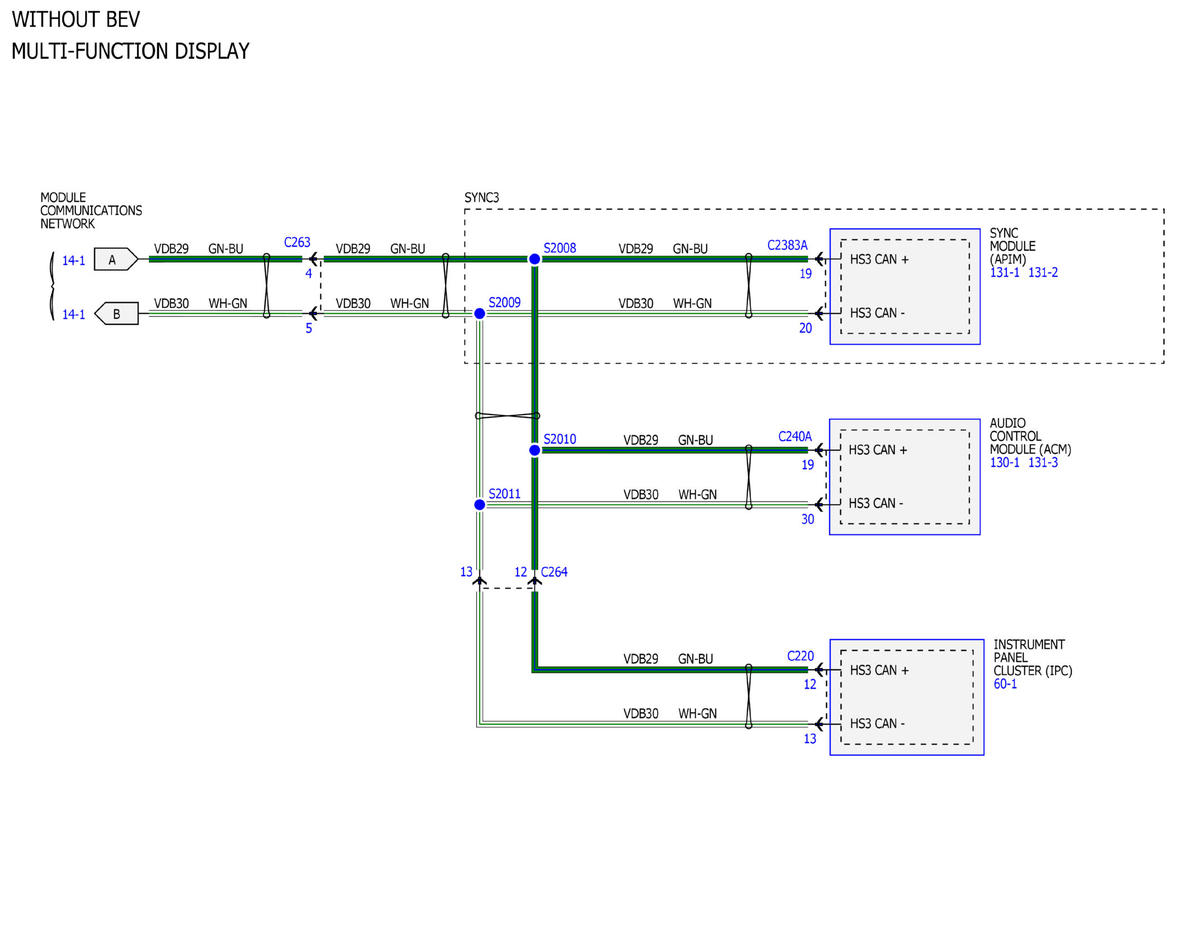

Fig 9: Module Communications Network Wiring Diagram (9 Of 26)

GFDWR157496

Courtesy of FORD MOTOR COMPANY

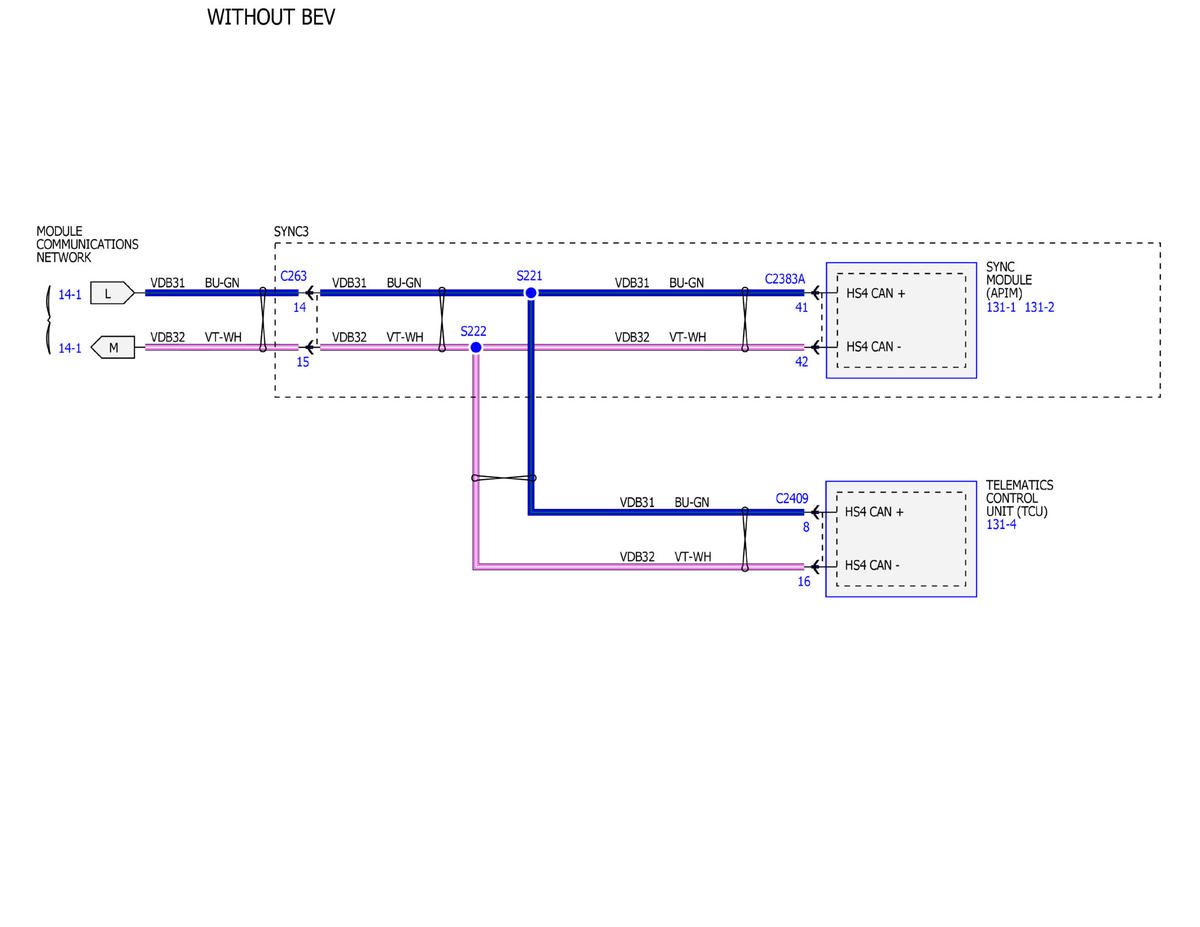

Fig 10: Module Communications Network Wiring Diagram (10 Of 26)

GFDWR157472

Courtesy of FORD MOTOR COMPANY

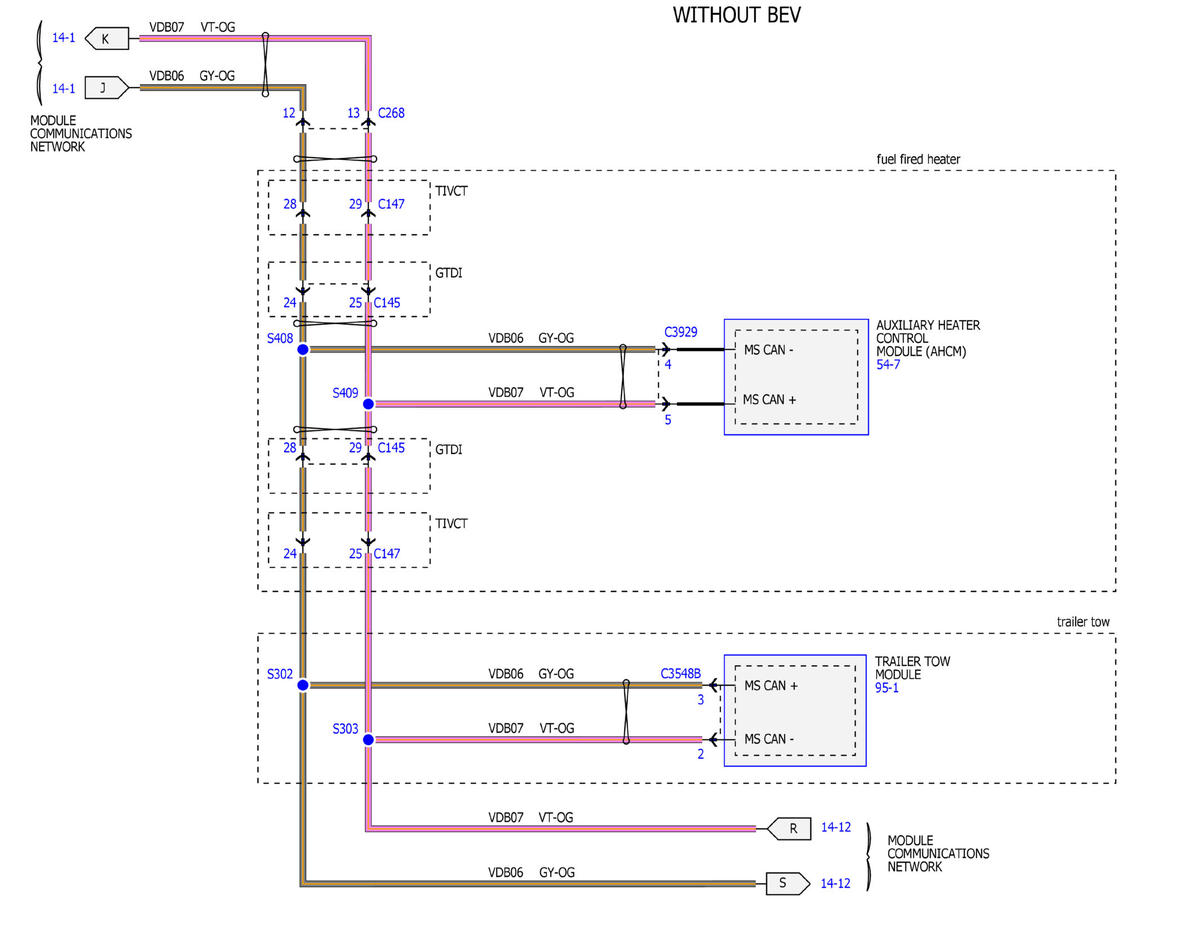

Fig 11: Module Communications Network Wiring Diagram (11 Of 26)

GFDWR157473

Courtesy of FORD MOTOR COMPANY

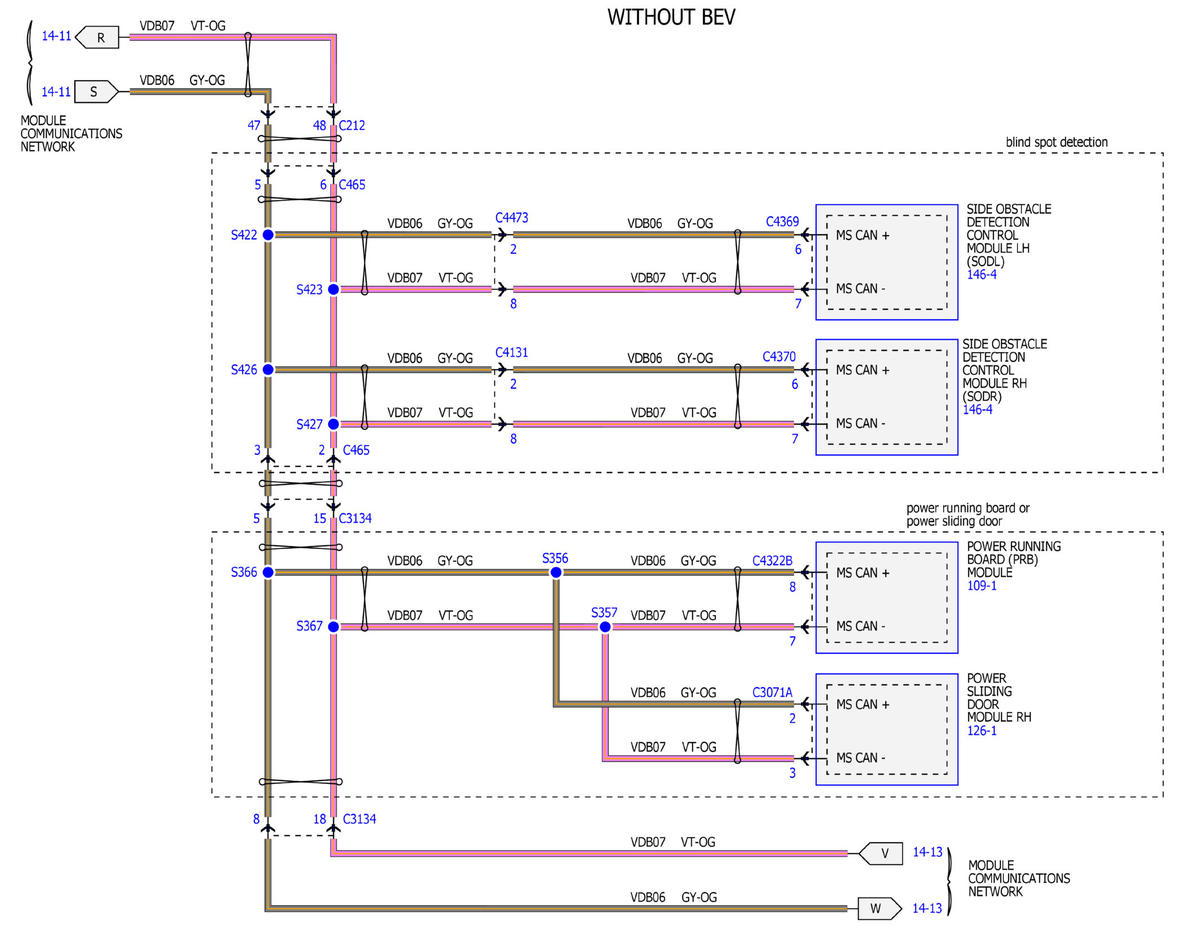

Fig 12: Module Communications Network Wiring Diagram (12 Of 26)

GFDWR157474

Courtesy of FORD MOTOR COMPANY

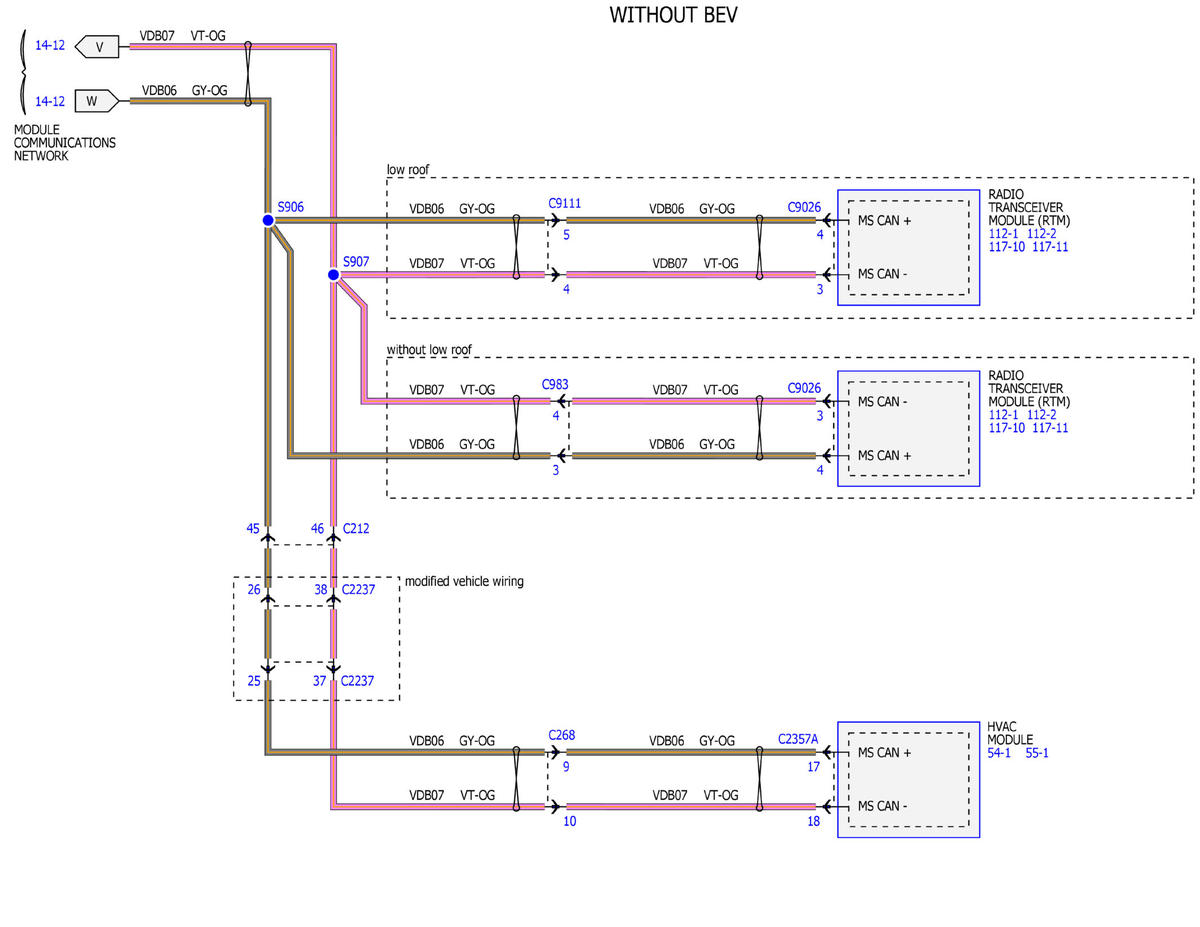

Fig 13: Module Communications Network Wiring Diagram (13 Of 26)

GFDWR157475

Courtesy of FORD MOTOR COMPANY

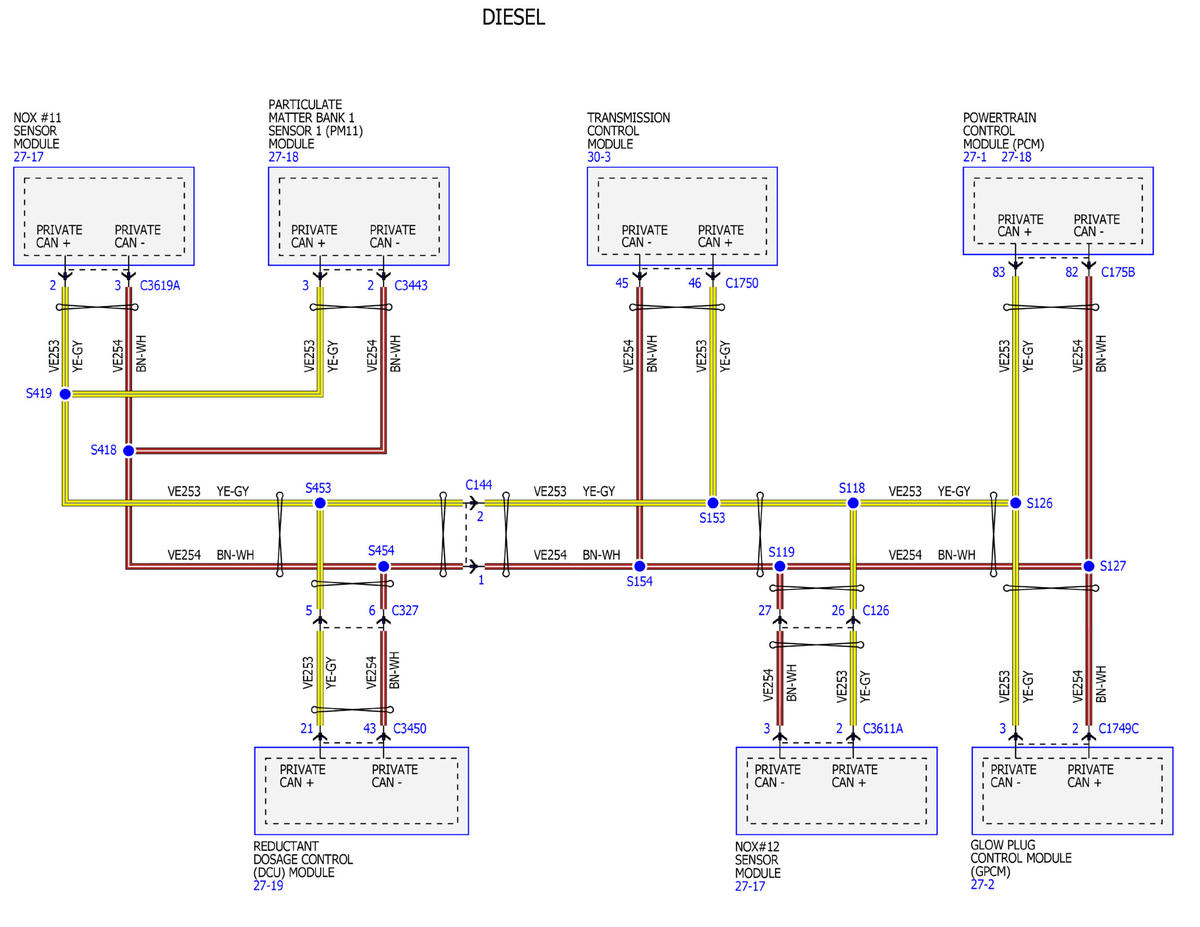

Fig 14: Module Communications Network Wiring Diagram (14 Of 26)

GFDWR157476

Courtesy of FORD MOTOR COMPANY

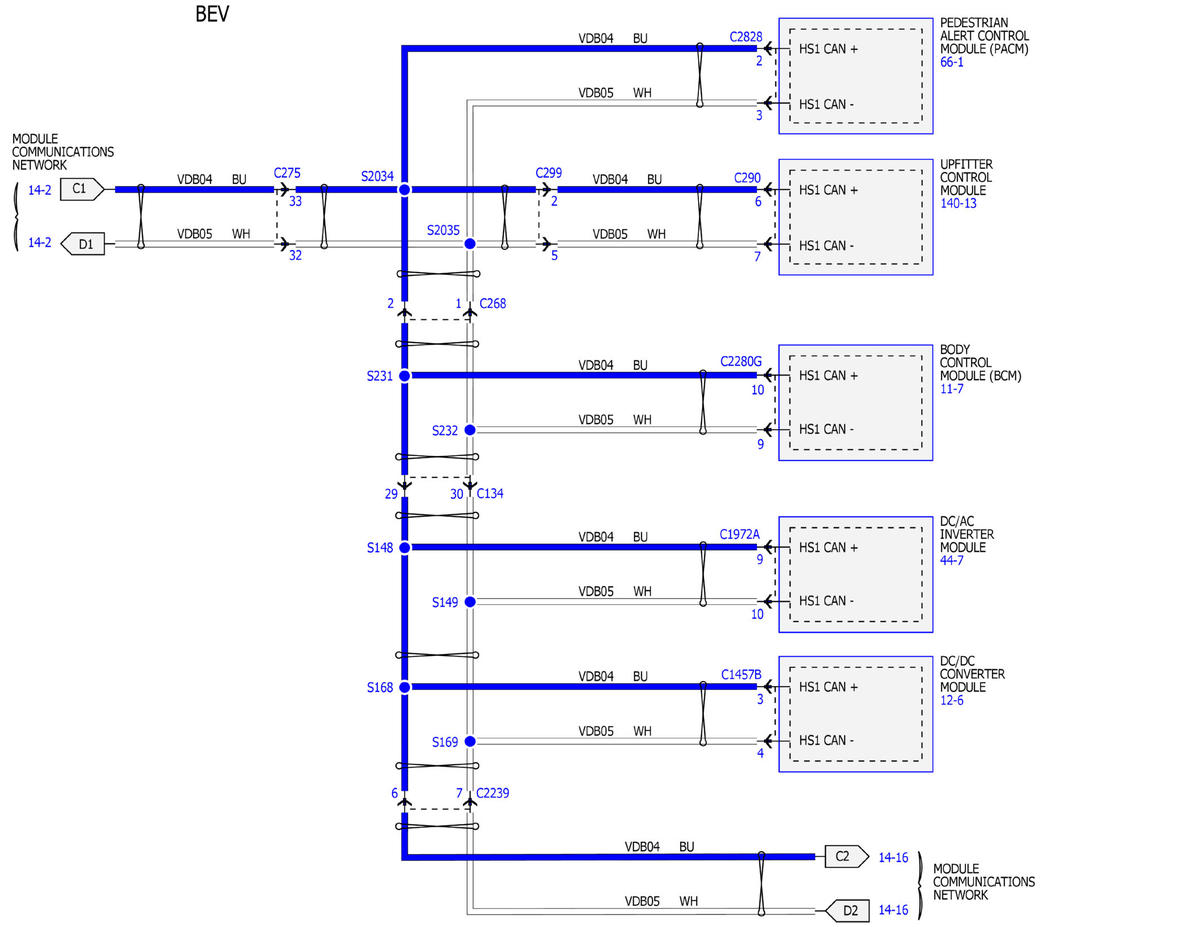

Fig 15: Module Communications Network Wiring Diagram (15 Of 26)

GFDWR157477

Courtesy of FORD MOTOR COMPANY

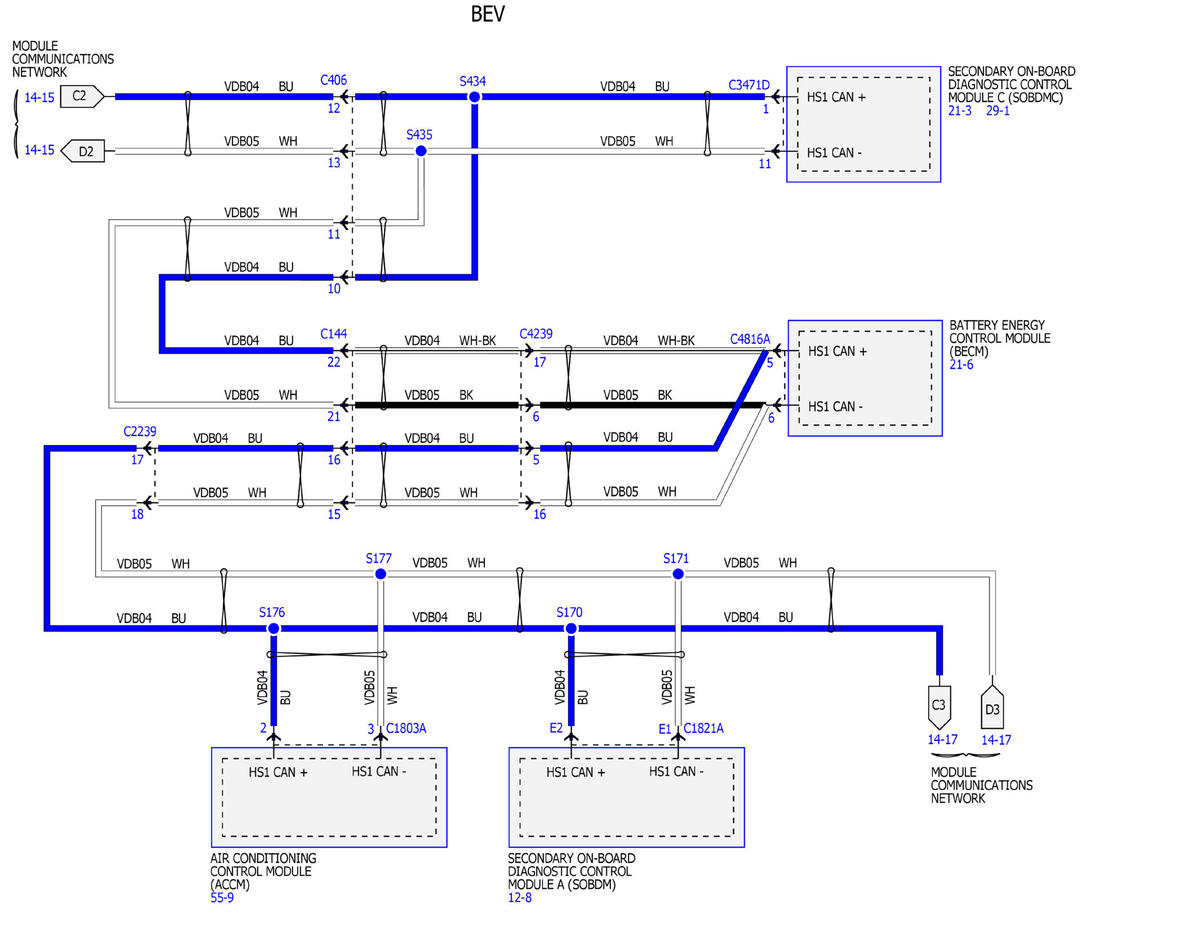

Fig 16: Module Communications Network Wiring Diagram (16 Of 26)

GFDWR157478

Courtesy of FORD MOTOR COMPANY

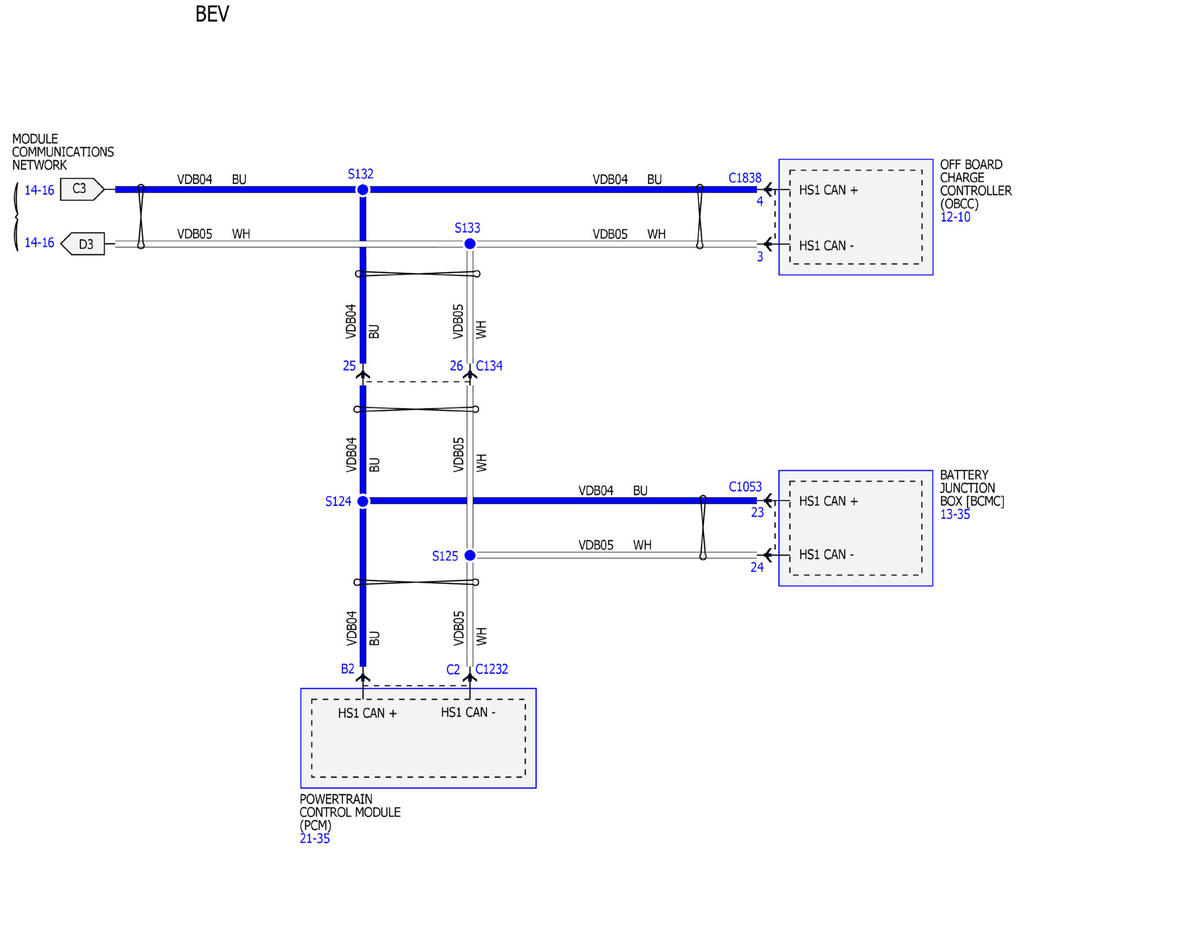

Fig 17: Module Communications Network Wiring Diagram (17 Of 26)

GFDWR157479

Courtesy of FORD MOTOR COMPANY

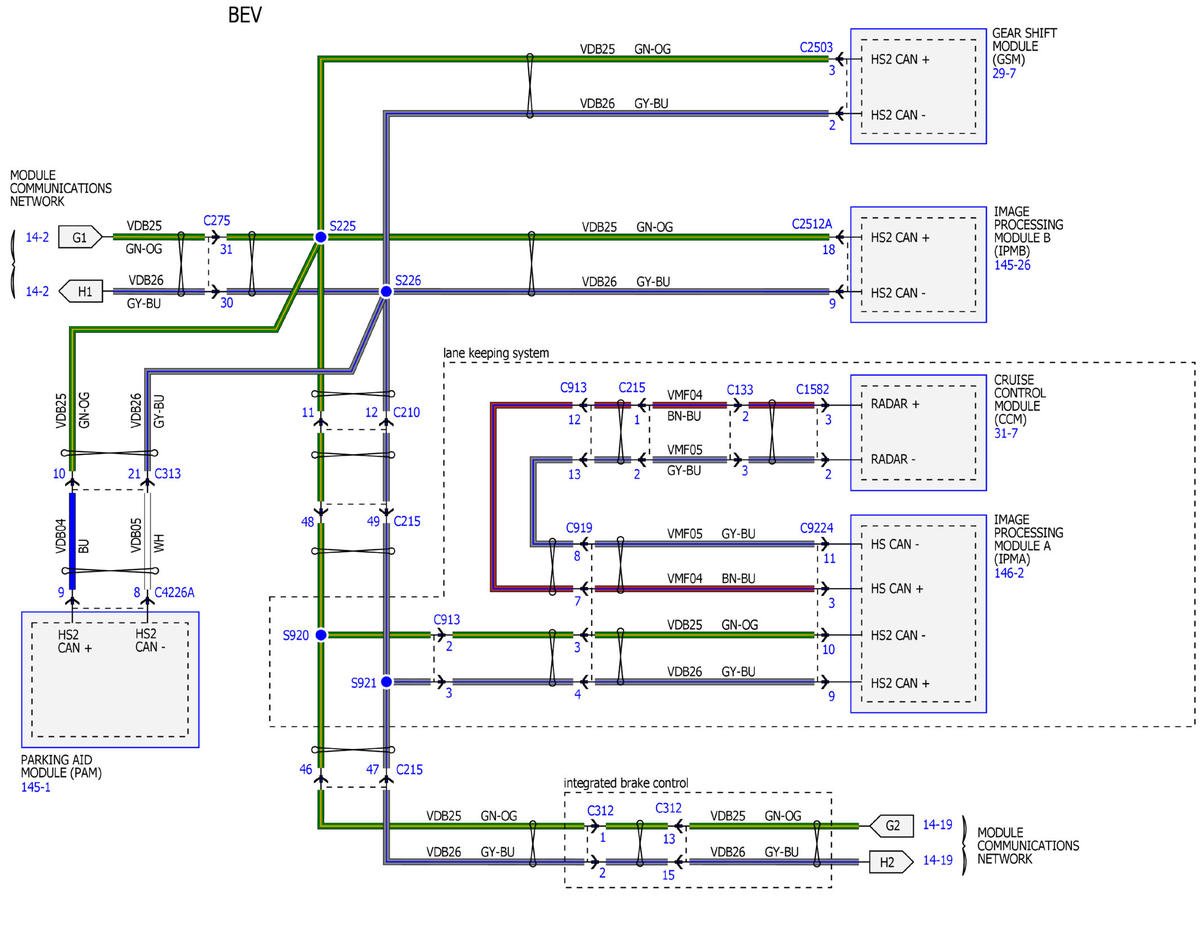

Fig 18: Module Communications Network Wiring Diagram (18 Of 26)

GFDWR157480

Courtesy of FORD MOTOR COMPANY

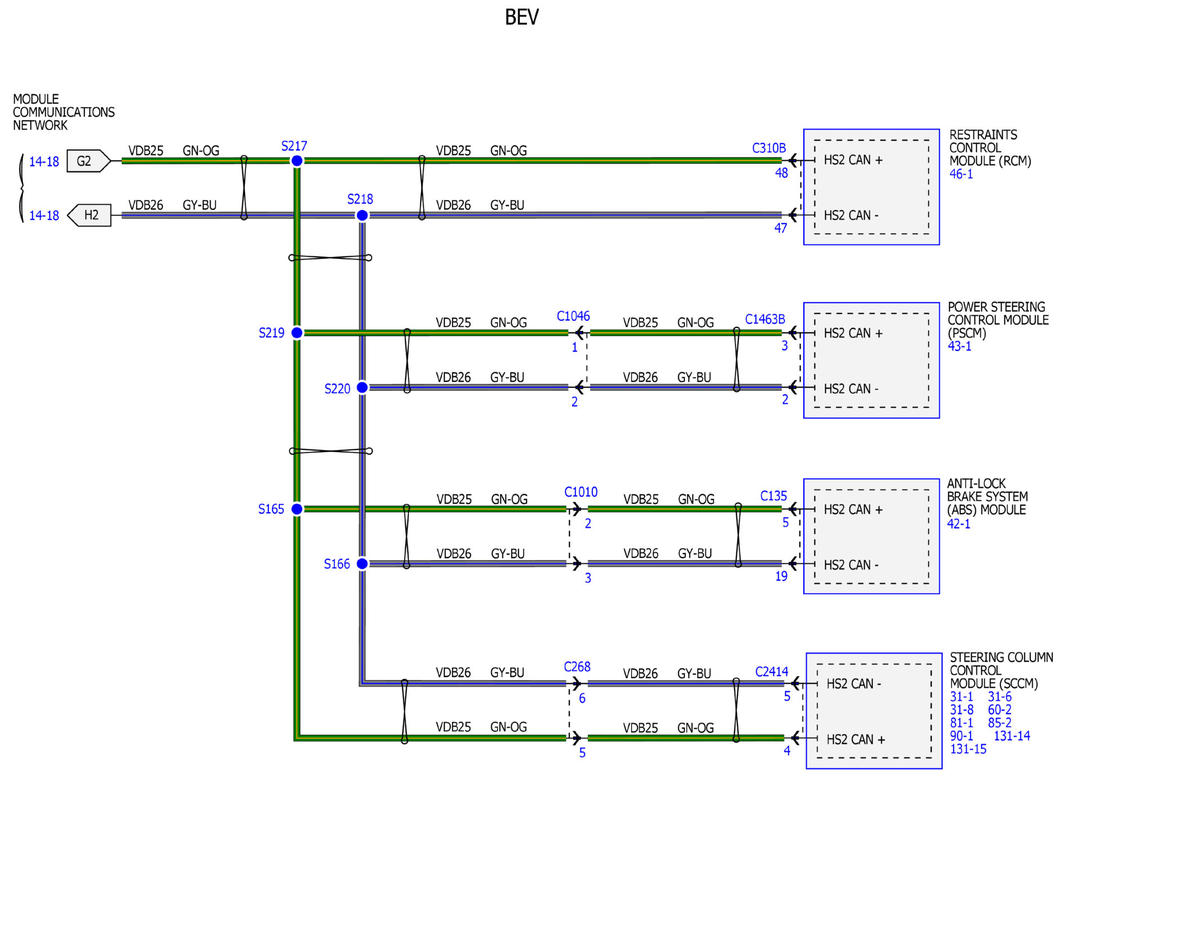

Fig 19: Module Communications Network Wiring Diagram (19 Of 26)

GFDWR157481

Courtesy of FORD MOTOR COMPANY

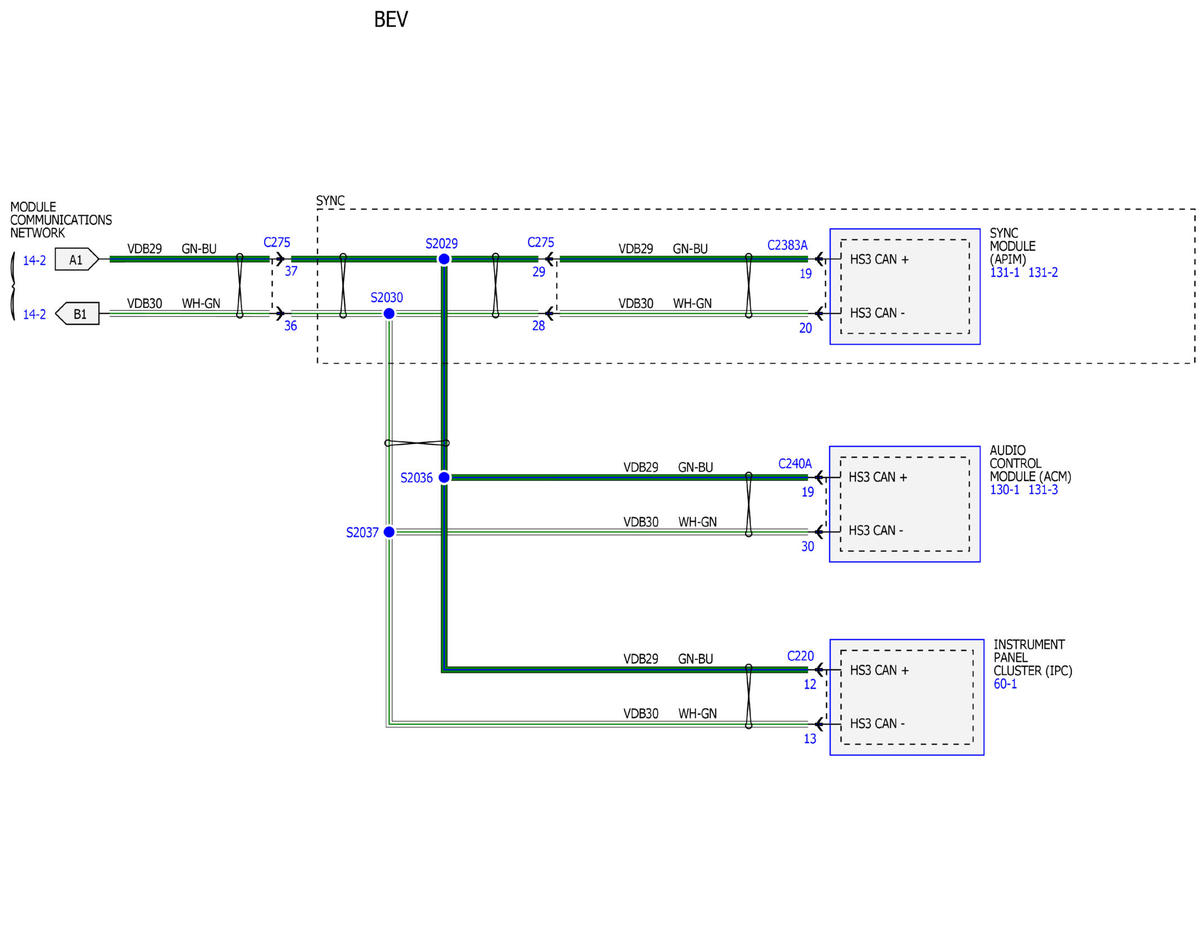

Fig 20: Module Communications Network Wiring Diagram (20 Of 26)

GFDWR157483

Courtesy of FORD MOTOR COMPANY

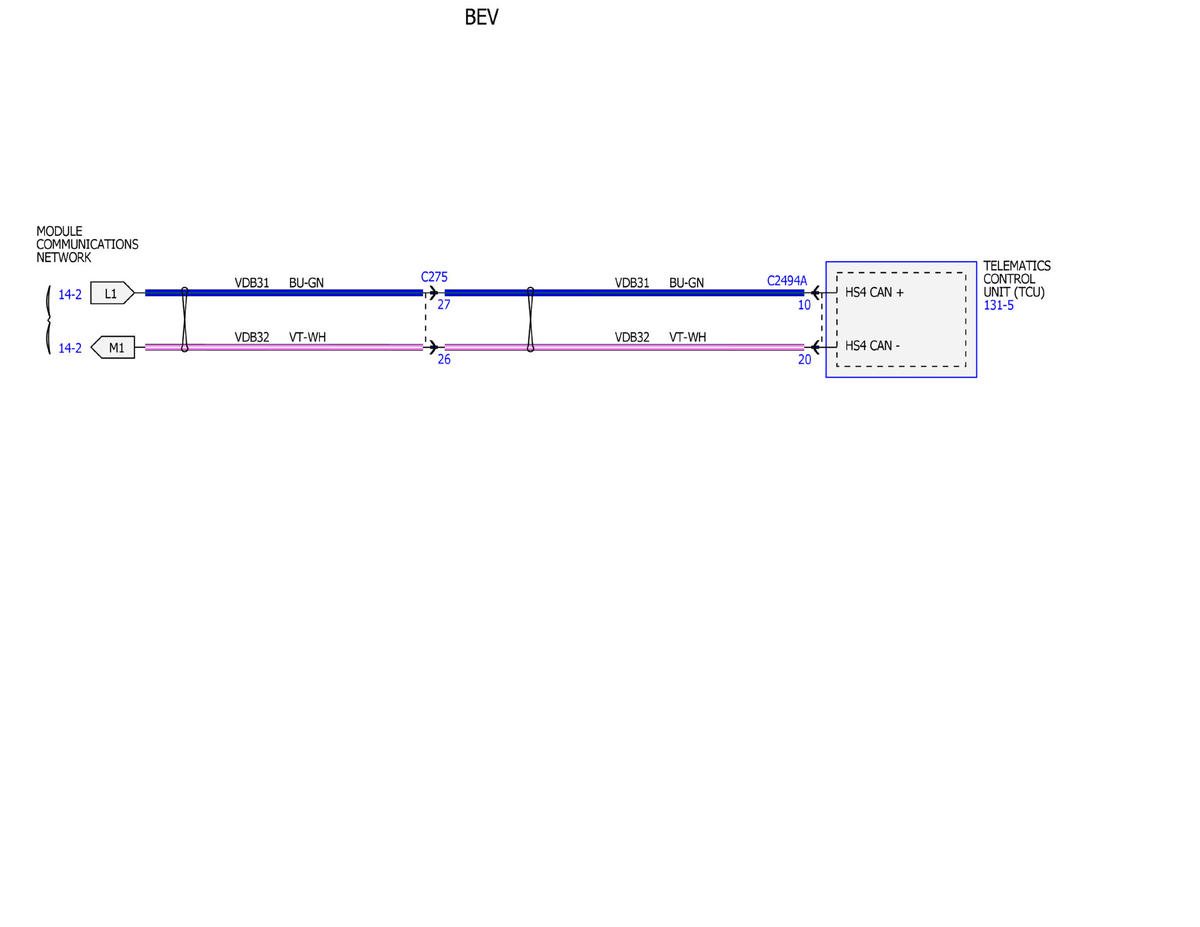

Fig 21: Module Communications Network Wiring Diagram (21 Of 26)

GFDWR157484

Courtesy of FORD MOTOR COMPANY

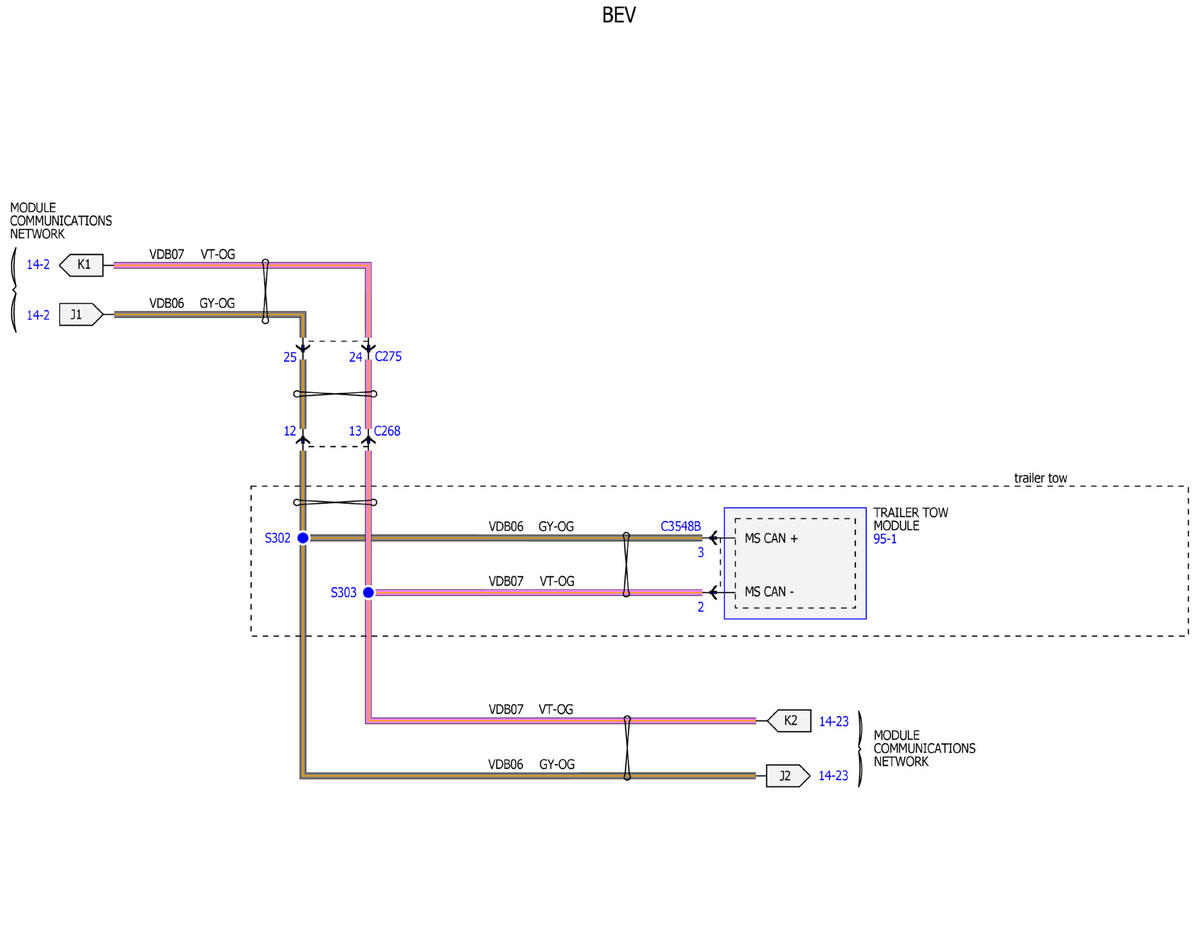

Fig 22: Module Communications Network Wiring Diagram (22 Of 26)

GFDWR157485

Courtesy of FORD MOTOR COMPANY

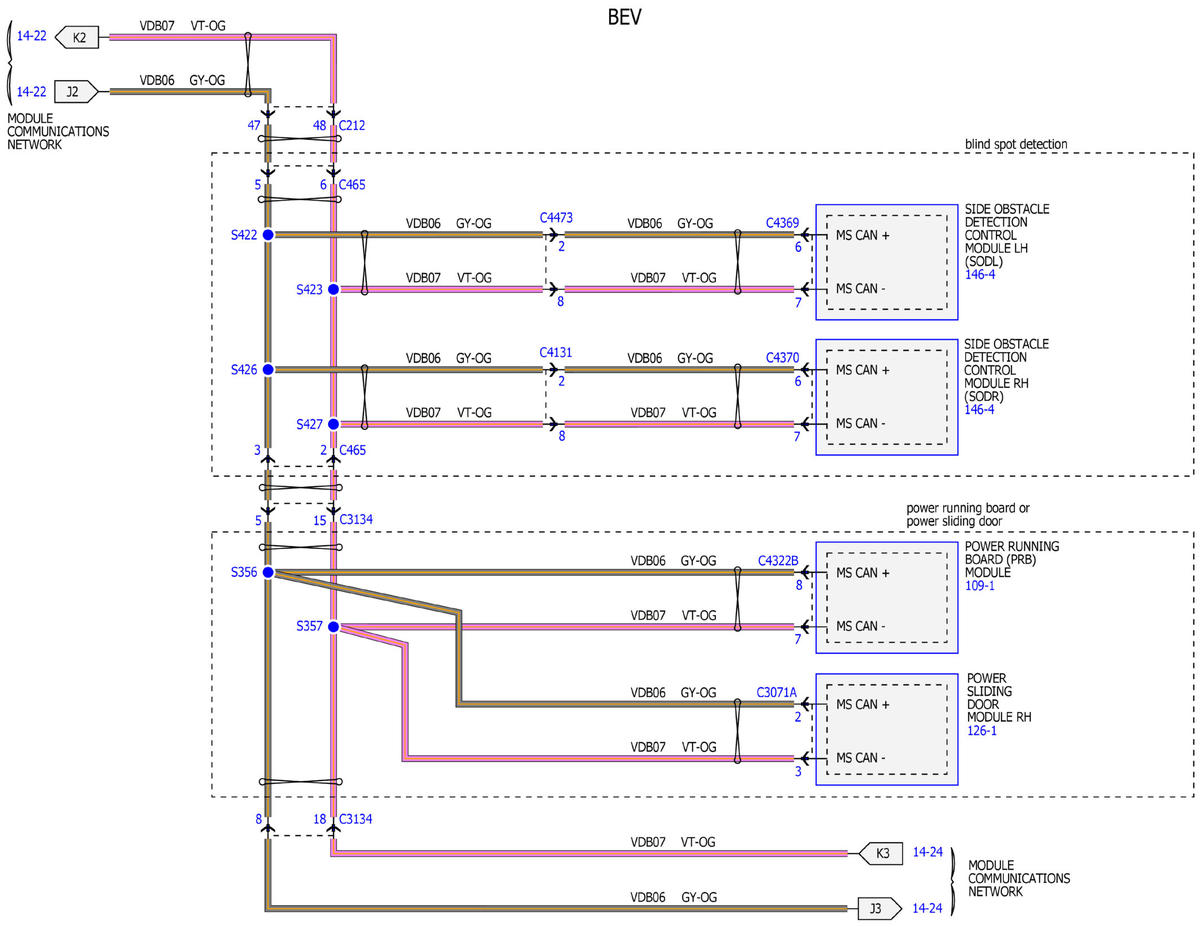

Fig 23: Module Communications Network Wiring Diagram (23 Of 26)

GFDWR157486

Courtesy of FORD MOTOR COMPANY

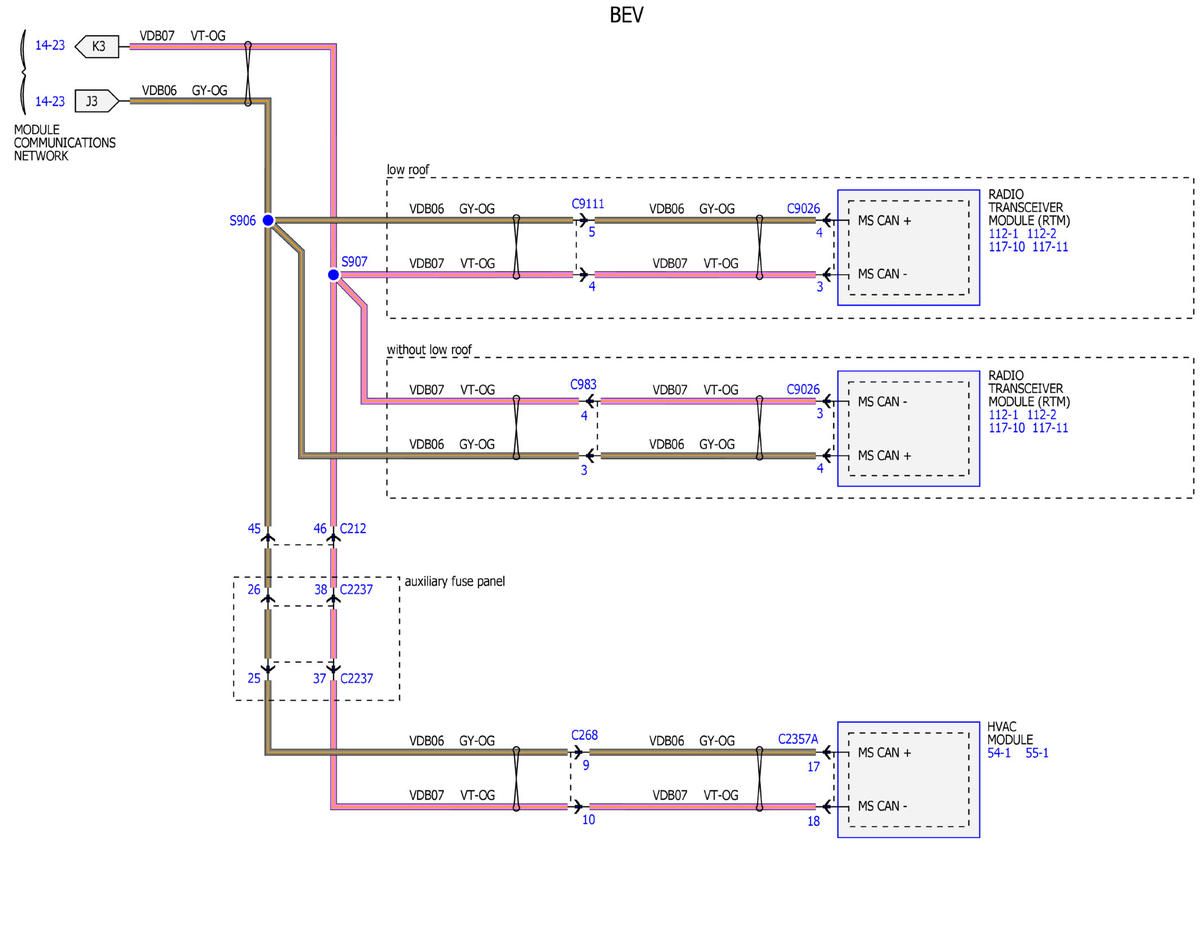

Fig 24: Module Communications Network Wiring Diagram (24 Of 26)

GFDWR157487

Courtesy of FORD MOTOR COMPANY

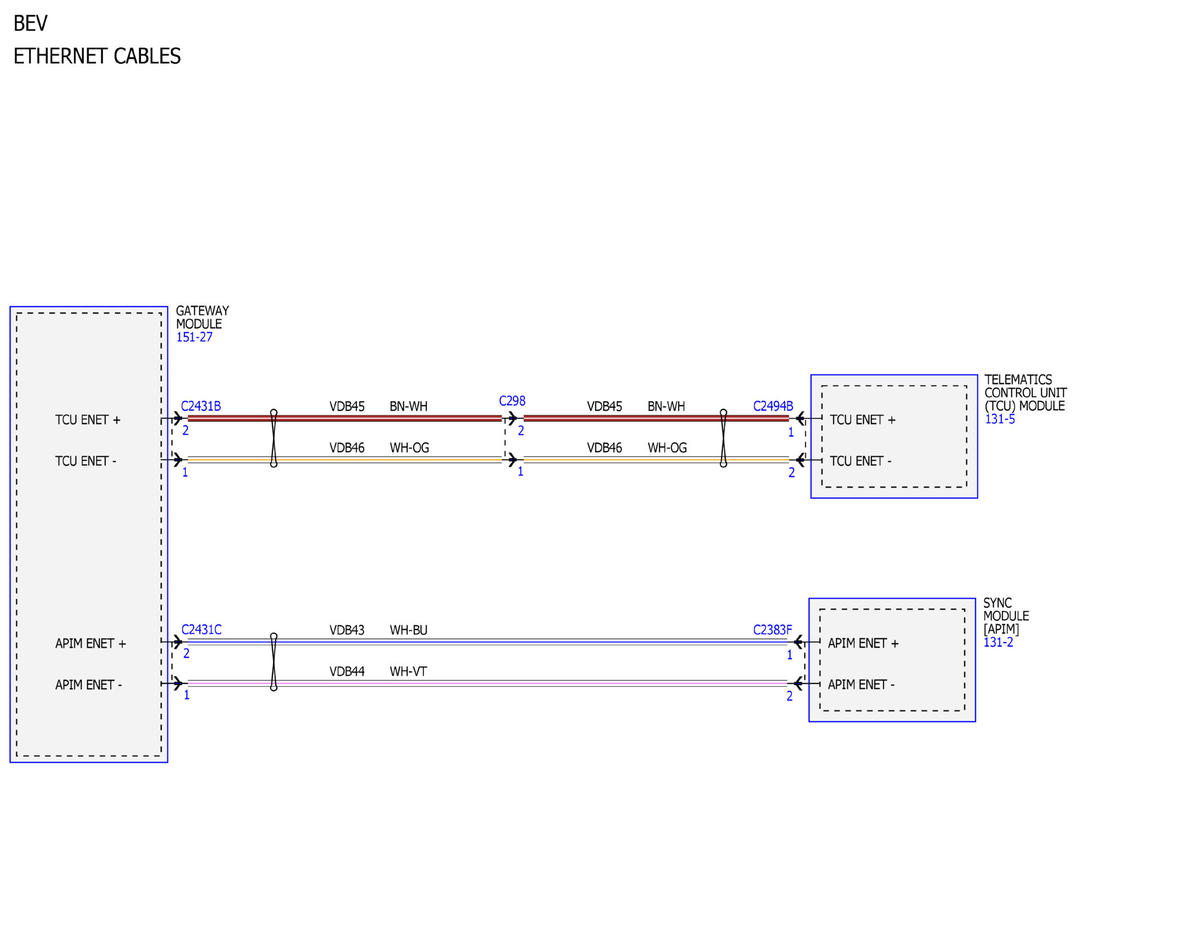

Fig 25: Module Communications Network Wiring Diagram (25 Of 26)

GFDWR157488

Courtesy of FORD MOTOR COMPANY

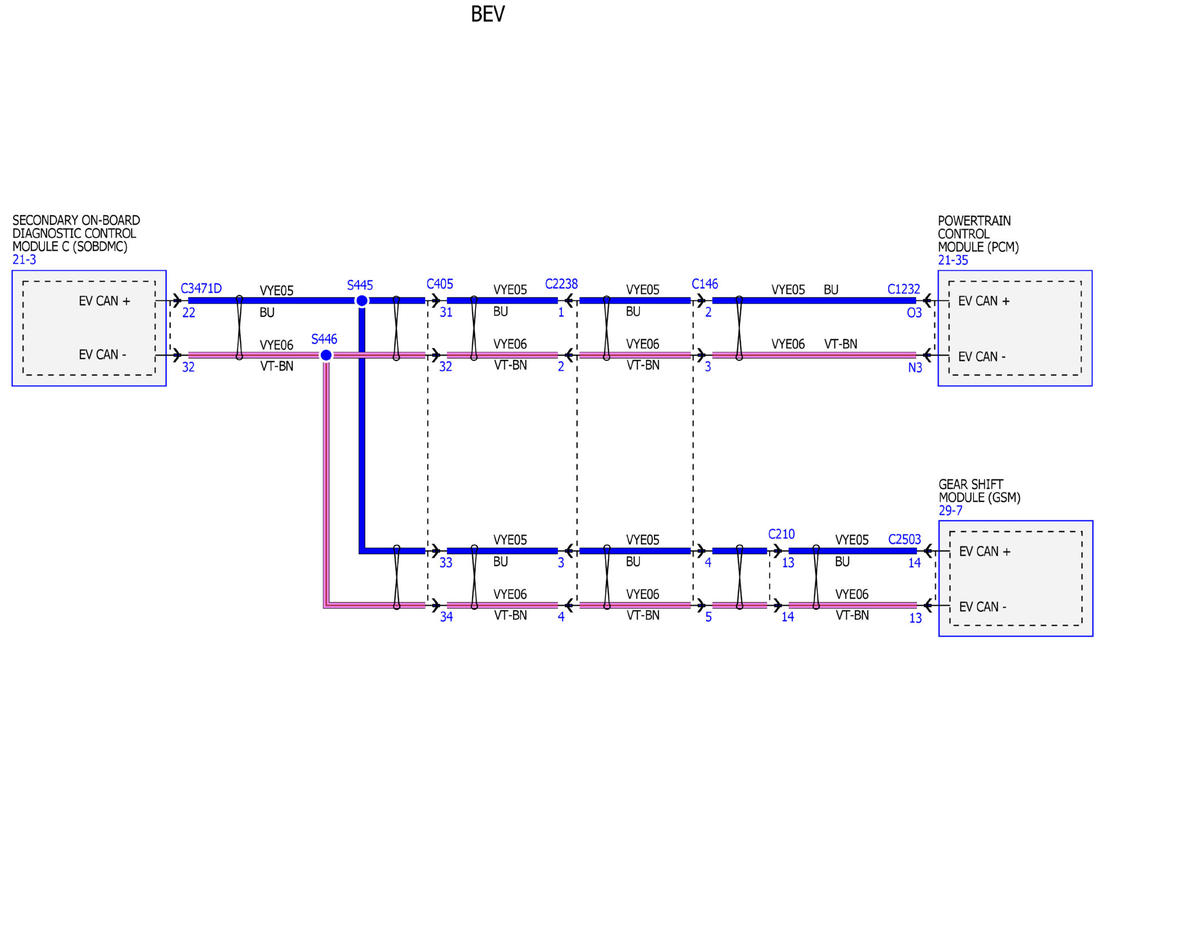

Fig 26: Module Communications Network Wiring Diagram (26 Of 26)

GFDWR157489

Courtesy of FORD MOTOR COMPANY
