Engine Coolant Temperature Gauge Sensor (4.3L)

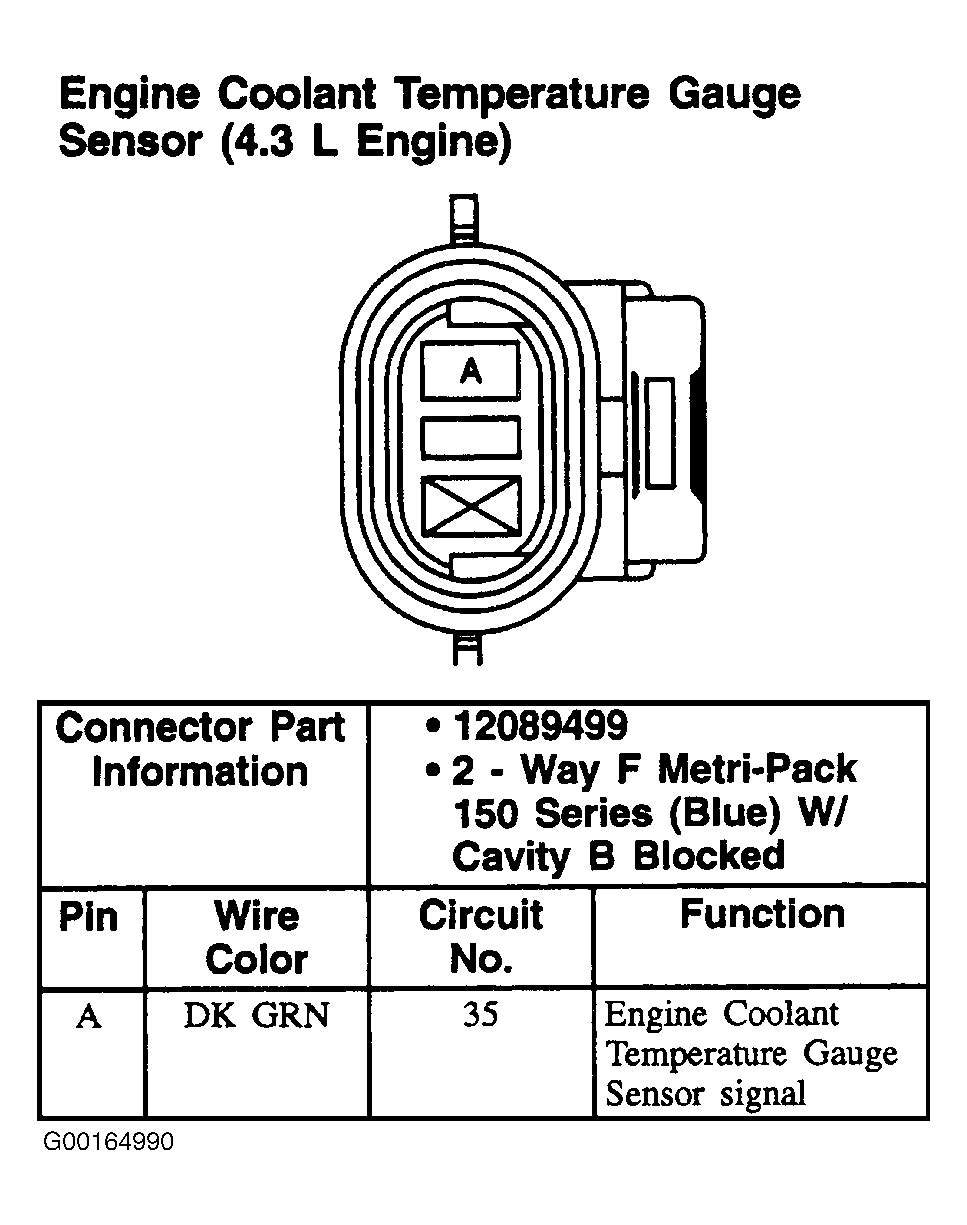

Fig 1: Engine Coolant Temperature Gauge Sensor (4.3L) - 2-Pin Connector, Blue
G00164990Courtesy of GENERAL MOTORS CORP.
