Home › Genesis › 2020 › G70 2.0T, AWD › Repair and Diagnosis › Electrical › Starter › Engine Starting System - 2.0L › Starter › Components And Components Location › Components

Components And Components Location: Components

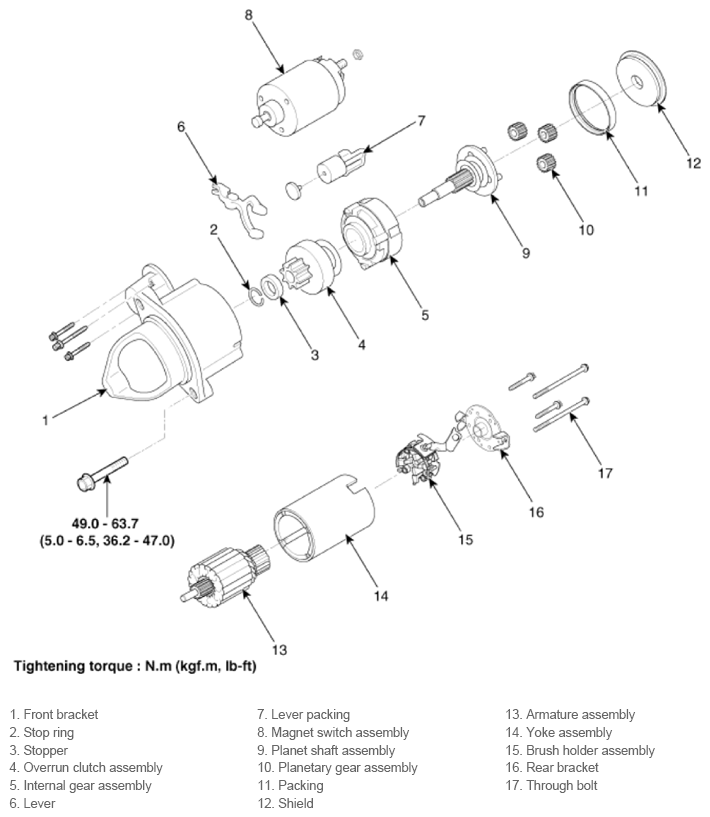

Fig 1: Starter Components Location With Torque Specification
G13539146Courtesy of HYUNDAI MOTOR AMERICA
