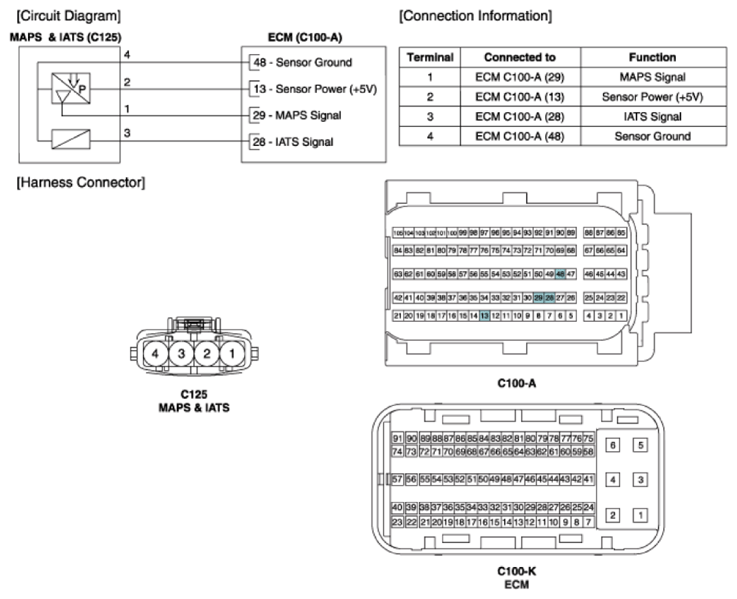

Home › Genesis › 2020 › G90 3.3T Premium, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Intake Air Temperature Sensor (IATS) › Schematic Diagrams › Circuit Diagram
