Components And Components Location: Components

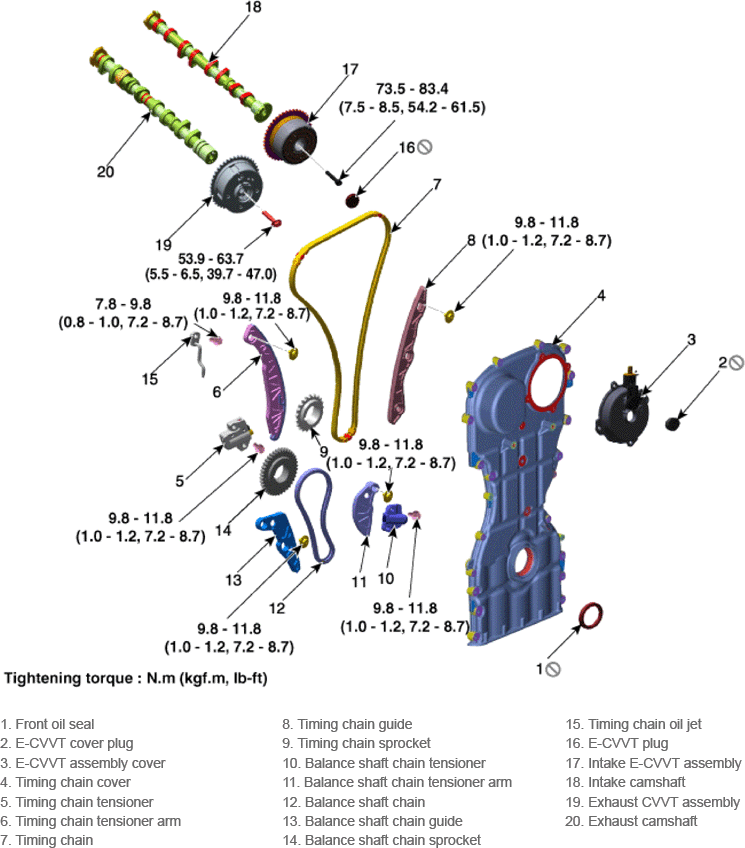

Fig 1: Timing Chain Components Location With Torque Specifications
G14174975Courtesy of HYUNDAI MOTOR AMERICA
