Repair Procedures: Removal

  1. Turn the ignition switch OFF.

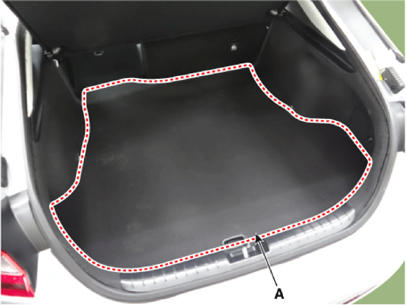

  2. Remove the luggage covering (A).
    G14179364Courtesy of HYUNDAI MOTOR AMERICA

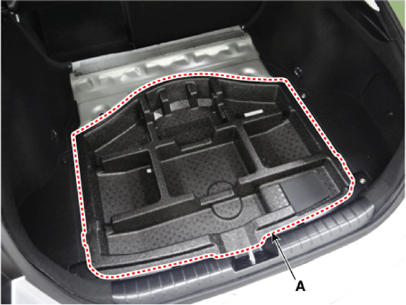

  3. Remove the luggage center tray (A).
    G14179365Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G14179366Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G14179367Courtesy of HYUNDAI MOTOR AMERICA
