Repair Procedures: Removal

  1. Turn the ignition switch OFF.

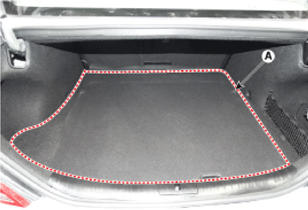

  2. Remove the luggage covering complete (A).
    G14179080Courtesy of HYUNDAI MOTOR AMERICA

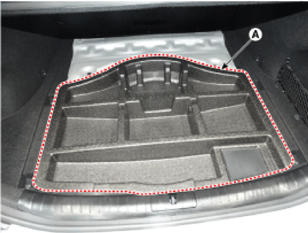

  3. Remove the luggage under cover (A).
    G14179081Courtesy of HYUNDAI MOTOR AMERICA

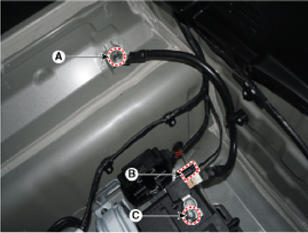

  4. Disconnect the battery positive (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
  6. Remove the battery sensor cable after loosening the battery sensor cable flange bolt (C).
    G14179082Courtesy of HYUNDAI MOTOR AMERICA
