Home › Genesis › 2021 › G80 3.5T, AWD › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 3.5L › Intake Manifold › Components And Components Location › Components

Components And Components Location: Components

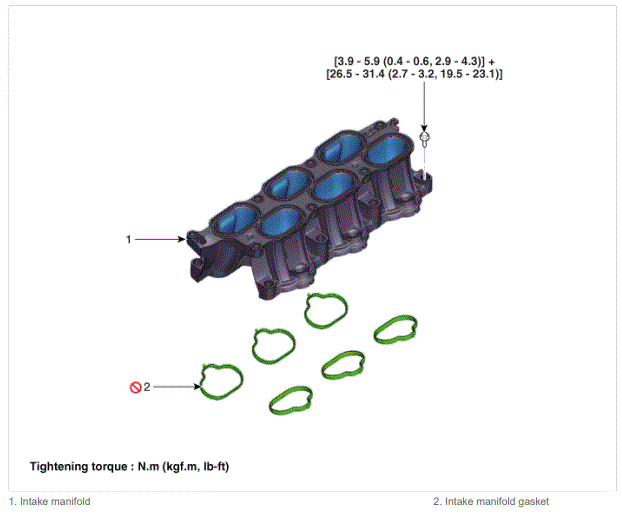

Fig 1: Intake Manifold Components Location With Torque Specification
G15555952Courtesy of HYUNDAI MOTOR AMERICA
