Fuel Delivery System - 3.3L
›
Components And Components Location
›
Components Location
›

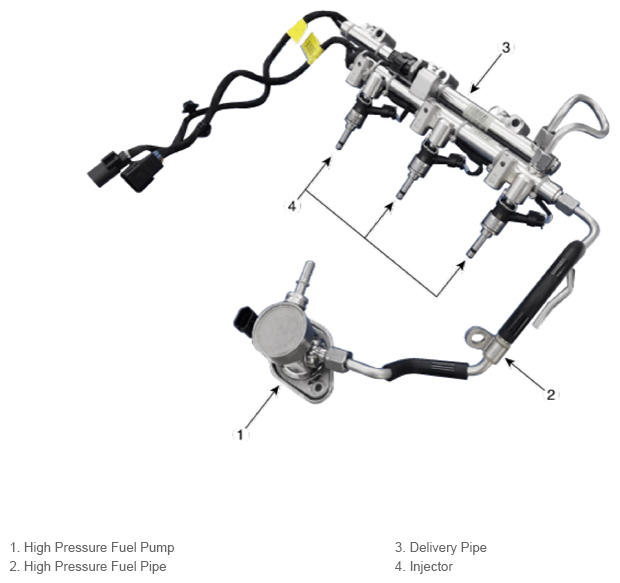

High Pressure Fuel Line
High Pressure Fuel Line
Courtesy of HYUNDAI MOTOR AMERICA
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. Do not conduct any repair work right after the engine stops.
