Repair Procedures: Replacement

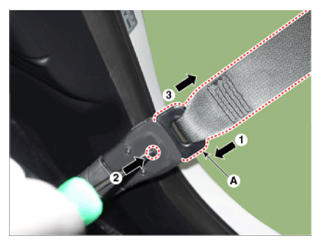

  1. Remove the front anchor seat belt (A).
    G14723565Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • Removal method for anchor seat belt.
      • Push the front anchor seat belt (A) in the direction of (1).
      • Insert the screwdriver in the direction of (2).
      • Remove the front anchor seat belt (A) by pulling it in the direction of (3).
    CAUTION:
    • Make sure not to scratch the anchor cover by the tool when pushing the slot hole.
  2. Open the cover and loosen the front seat mounting bolts.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

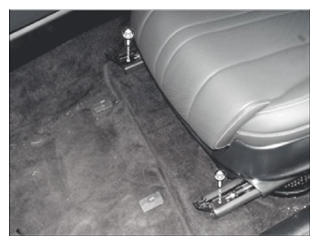

    [Front]

    G14723566Courtesy of HYUNDAI MOTOR AMERICA

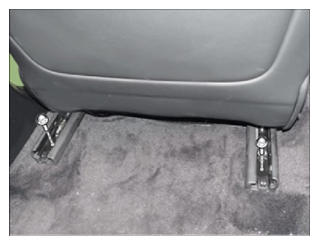

    [Rear]

    G14723567Courtesy of HYUNDAI MOTOR AMERICA

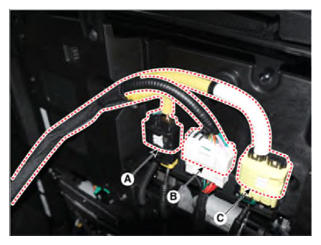

  3. Press the lock pin and separate the seat belt buckle connector (A), main connector (B), side airbag connector (C).
    G14723568Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse removal procedure.
    NOTE: The installation procedures of seat mounting bolts
    1. Push the seat to the rear end of slides and initially tighten the front mounting bolts.
    2. Push the seat to the front end of slides and completely tighten the rear mounting bolts.
    3. Send the seat to the rear end again to completely tighten the front mounting bolts.
    4. Check the seat for smooth movement.
    5. For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
