Home › Genesis › 2021 › GV80 3.5T Advanced › Repair and Diagnosis › External Pages › Different variant/trim › Section 15 (Engine Control System - 2.5L) › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector › Notes

GDI Injector: Notes

WARNING: This page is about a different variant/trim than selected.

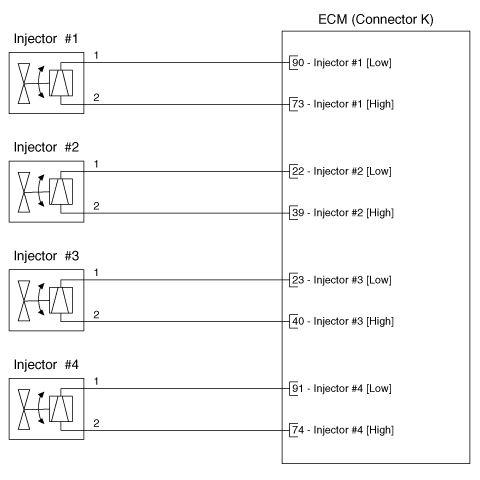

G14721409Courtesy of HYUNDAI MOTOR AMERICA
