Repair Procedures: Disassembly

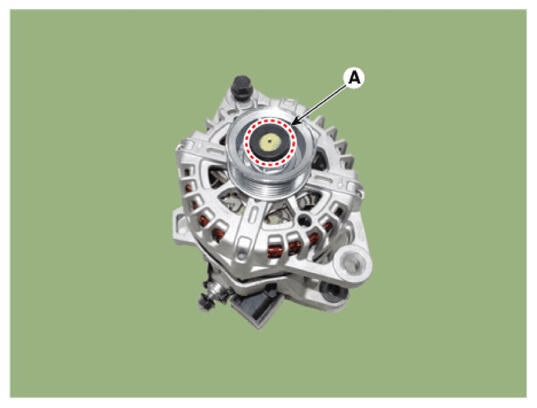

- Remove the OAP cap (A).NOTE:
- When installing, replace with new OAP cap.

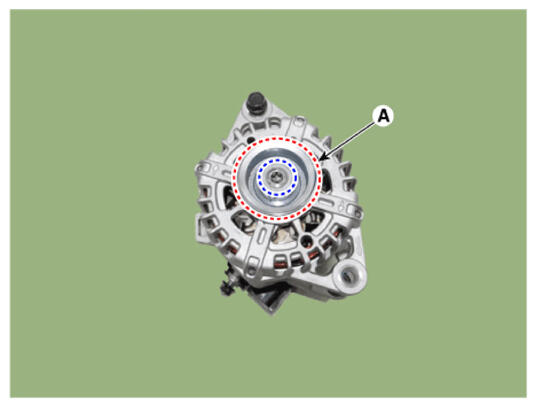

- Remove the pulley (A) after loosening the pulley nut.

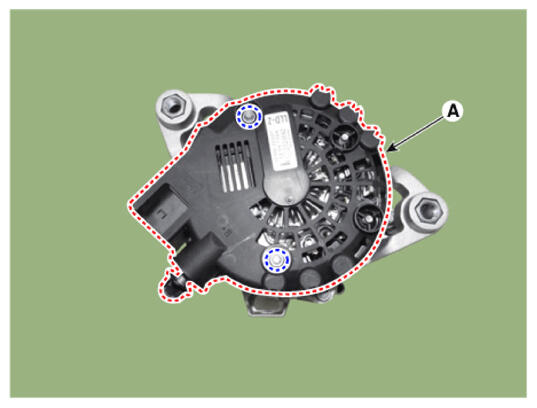

- Remove the alternator cover (A) after loosening the mounting nut.

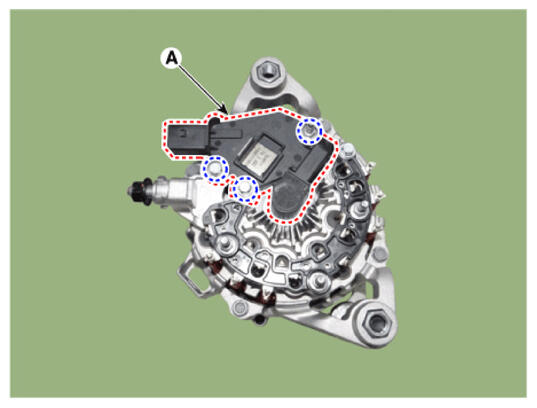

- Remove the brush holder assembly (A) after loosening the mounting bolt and nut.

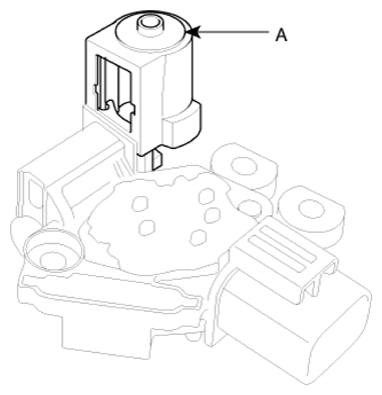

- Remove the slip ring guide (A).

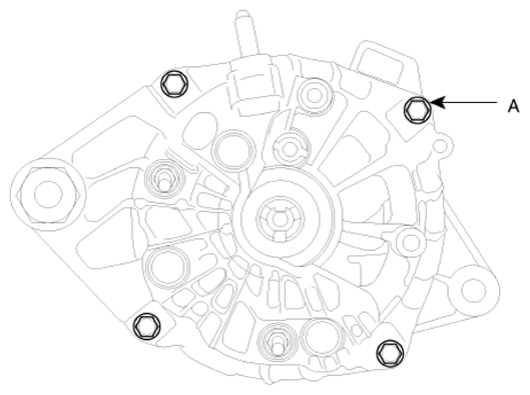

- Remove the 4 through bolts (A).

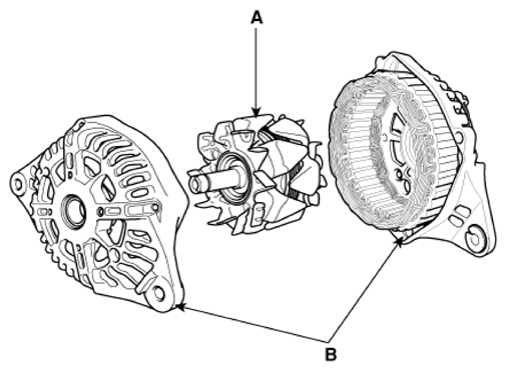

- Separate the rotor (A) and cover (B).
- Install in the reverse order of removal.
