Transmission Installation

Special Tools Required

Engine support hanger, A & Reds AAR-T-12566 *

* Available through the Honda Tool and Equipment Program 1-888-424-6857

1. Make sure the two dowel pins are installed in the clutch housing.

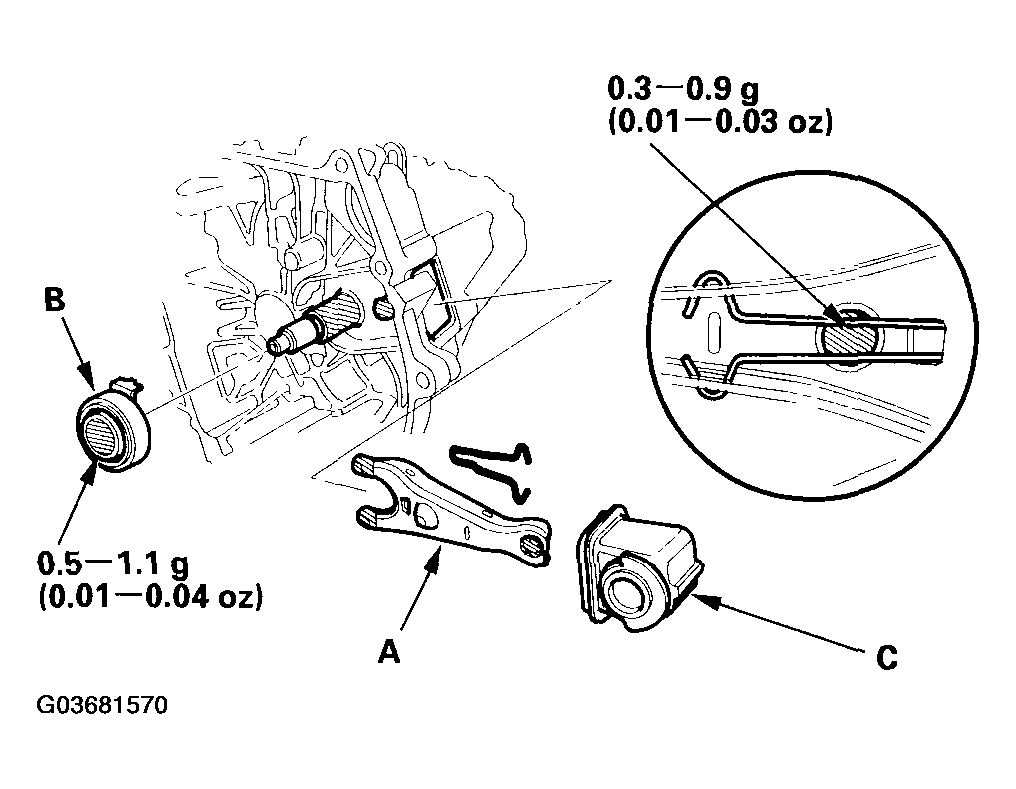

2. Apply super high temp urea grease (P/N 08798-9002) to the release fork (A) and the release bearing (B). Install the release fork, the release bearing, and the boot (C).
   Fig 1: Applying Grease To Release Fork And Release Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Place the transmission on the transmission jack, and raise it to the engine level.

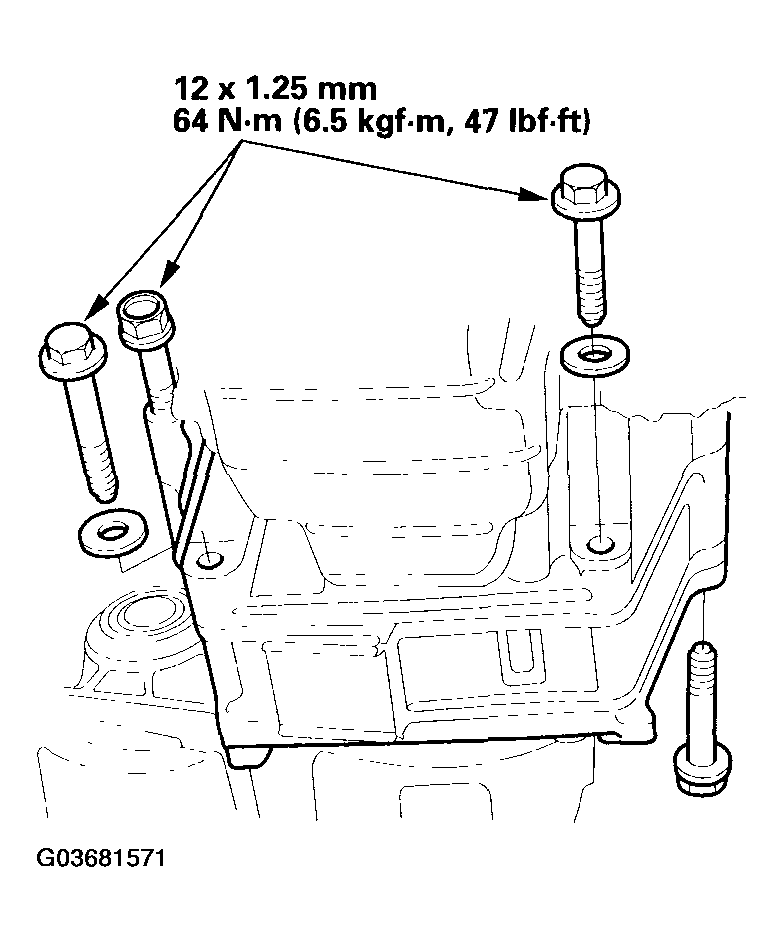

4. Install the four transmission lower mounting bolts.
   Fig 2: Identifying Tightening Torque Of Transmission Lower Mounting Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

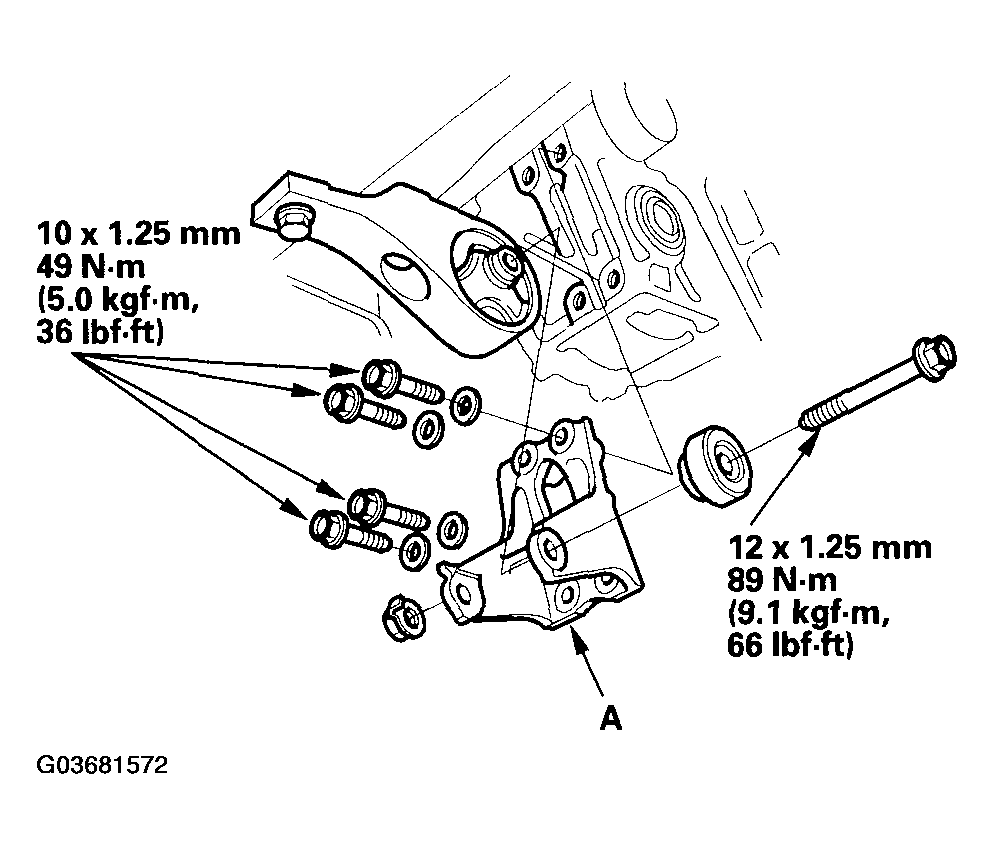

5. Install the rear engine mount bracket (A).
   Fig 3: Identifying Tightening Torque Of Rear Engine Mount Bracket Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the driveshafts (see DRIVESHAFT INSTALLATION ).

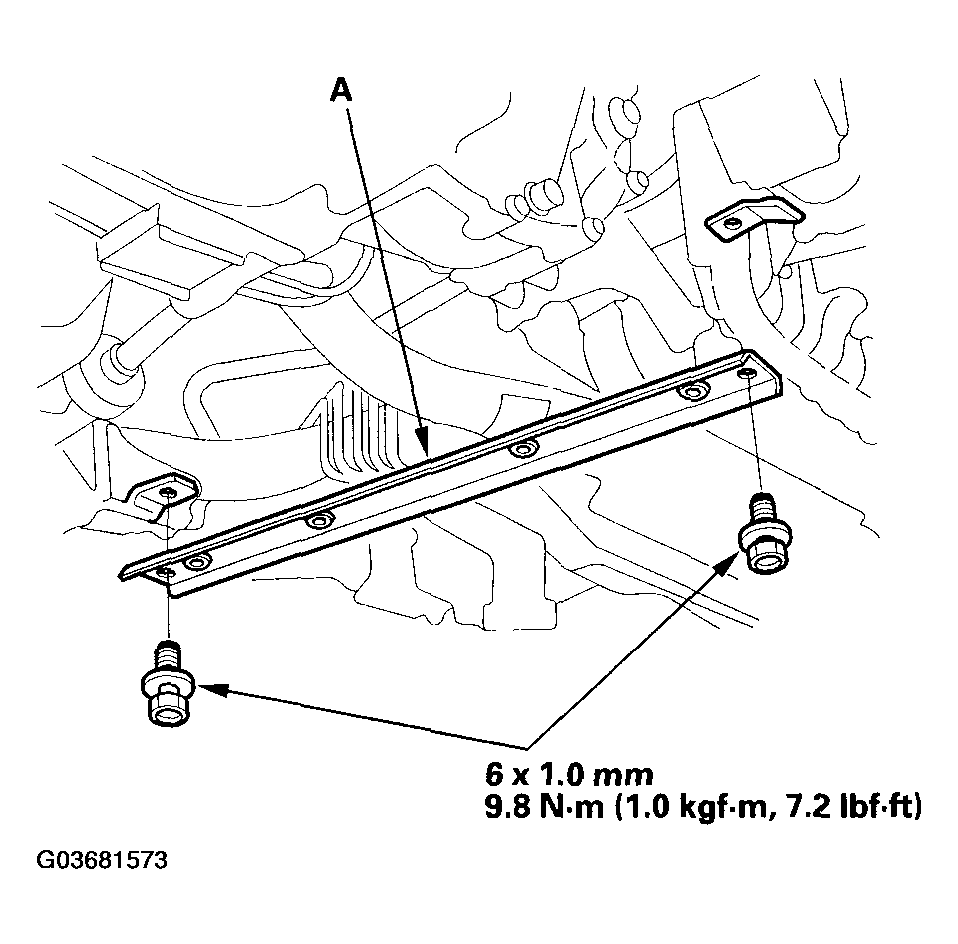

7. Install the splash shield bracket (A).
   Fig 4: Identifying Tightening Torque Of Splash Shield Bracket Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

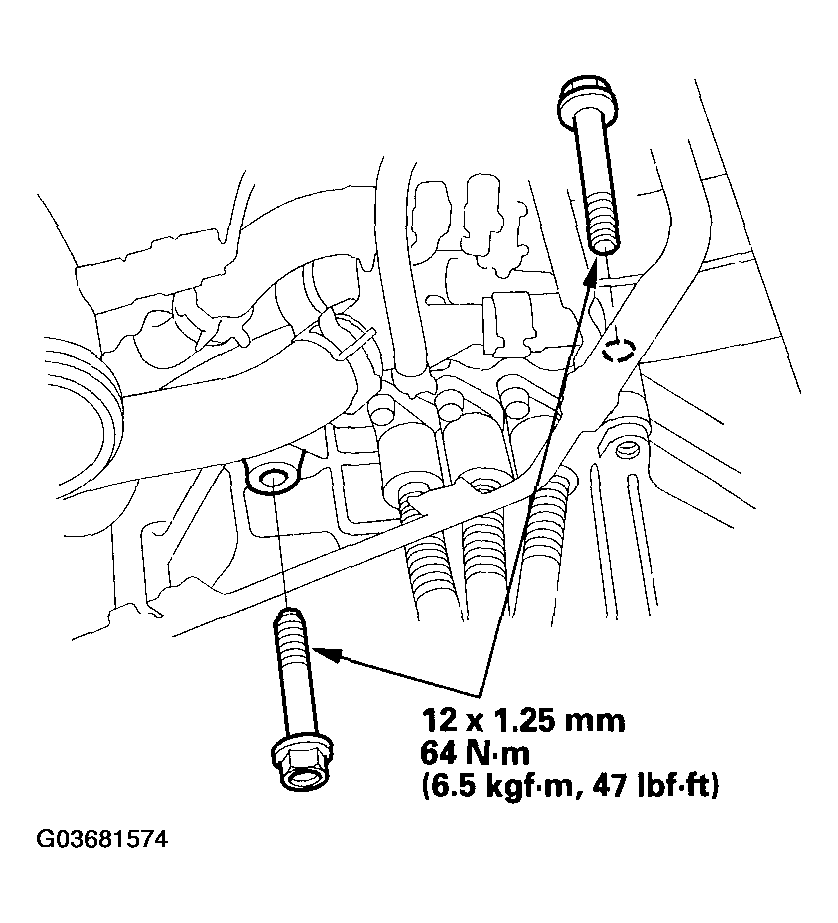

8. Install the two transmission upper mounting bolts.
   Fig 5: Identifying Tightening Torque Of Transmission Upper Mounting Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

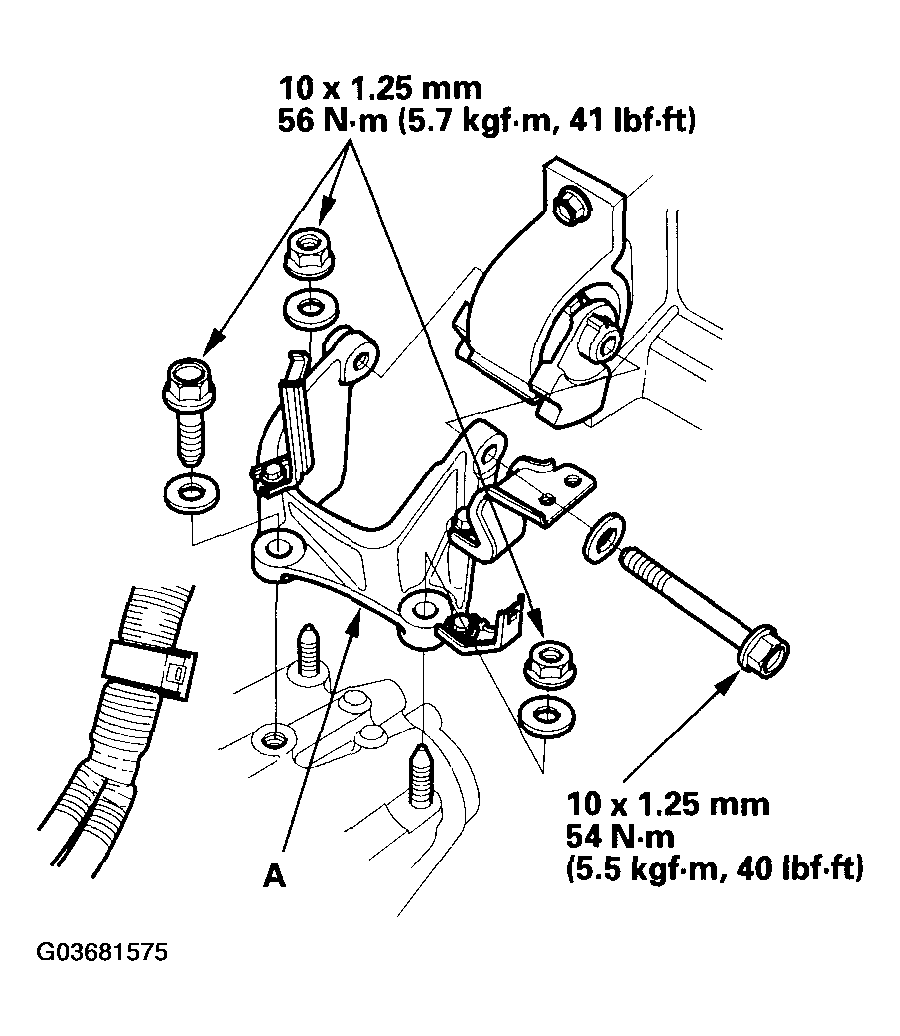

9. Raise the transmission higher, install the transmission mount bracket (A).
   Fig 6: Identifying Tightening Torque Of Transmission Mount Bracket Bolts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

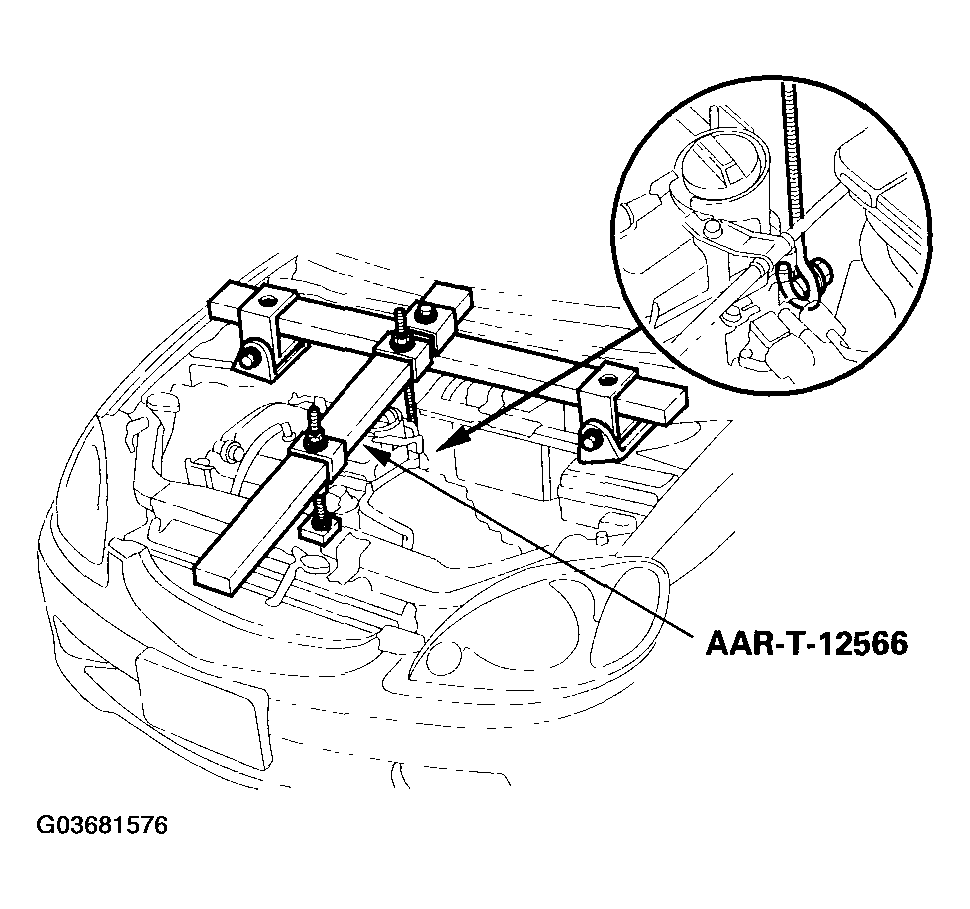

10. Remove the engine support hanger (P/N AAR-T-12566).
    Fig 7: Removing Engine Support Hanger

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Install the starter motor (A).
    Fig 8: Identifying Tightening Torque Of Starter Motor Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

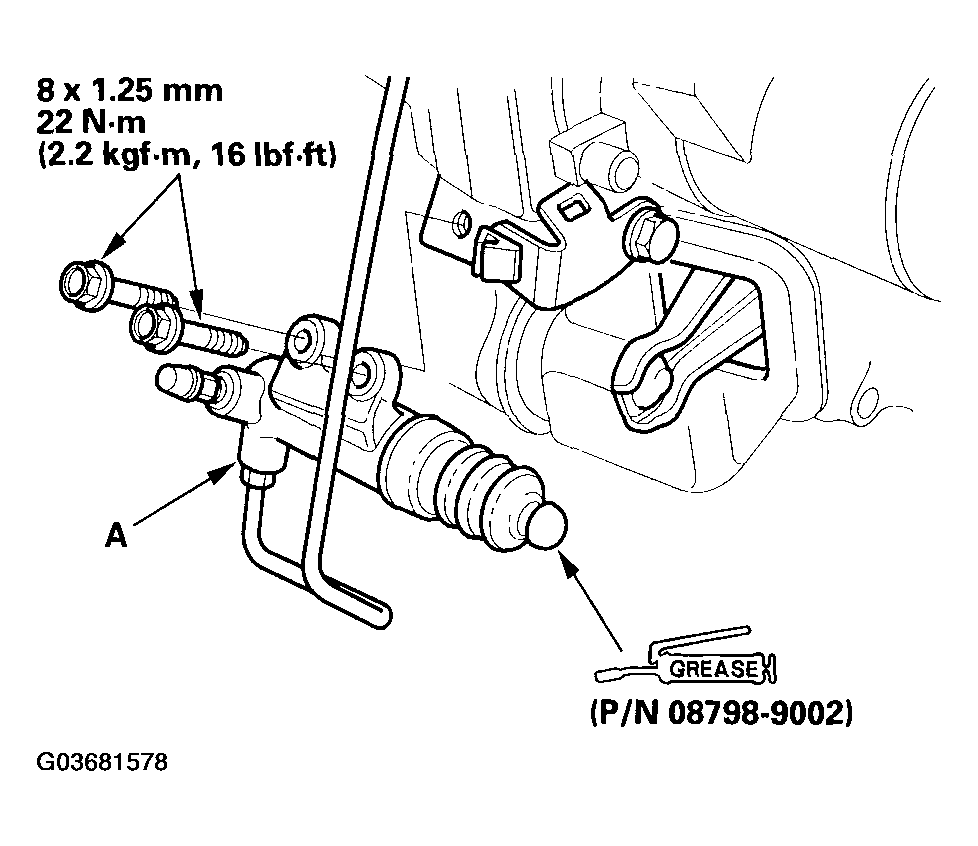

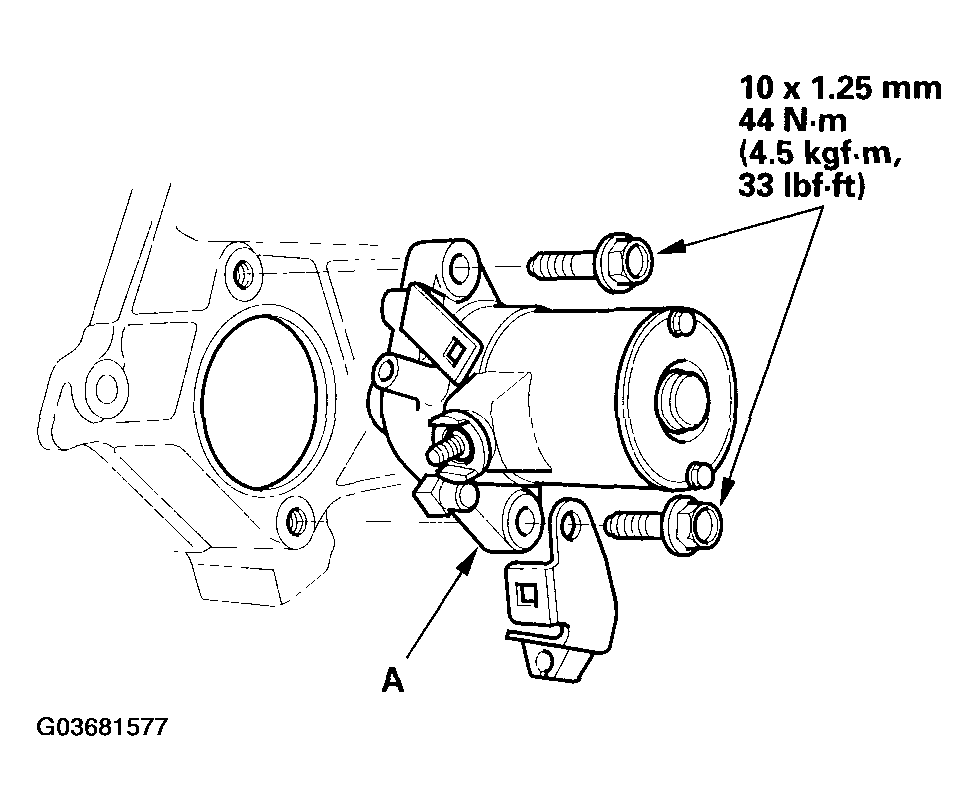

12. Apply super high temp urea grease (P/N 08798-9002) to the end of the slave cylinder rod. Install the slave cylinder (A). Be careful not to bend the clutch line.
    Fig 9: Identifying Tightening Torque Of Slave Cylinder Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

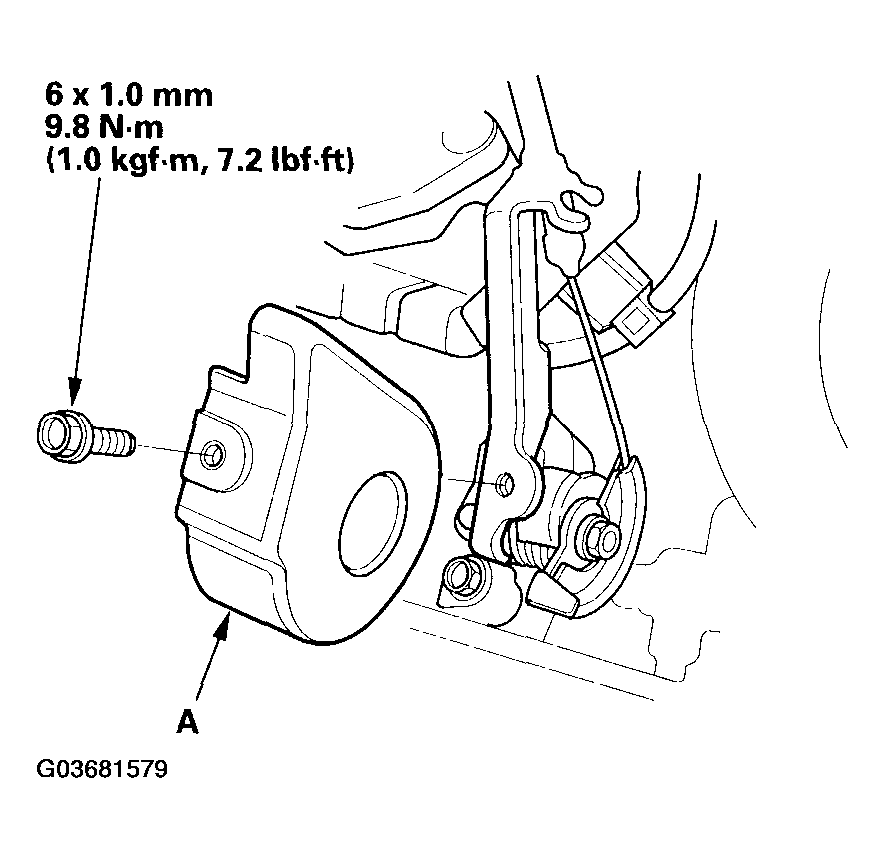

13. Install the throttle drum cover (A).
    Fig 10: Identifying Tightening Torque Of Throttle Drum Cover Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

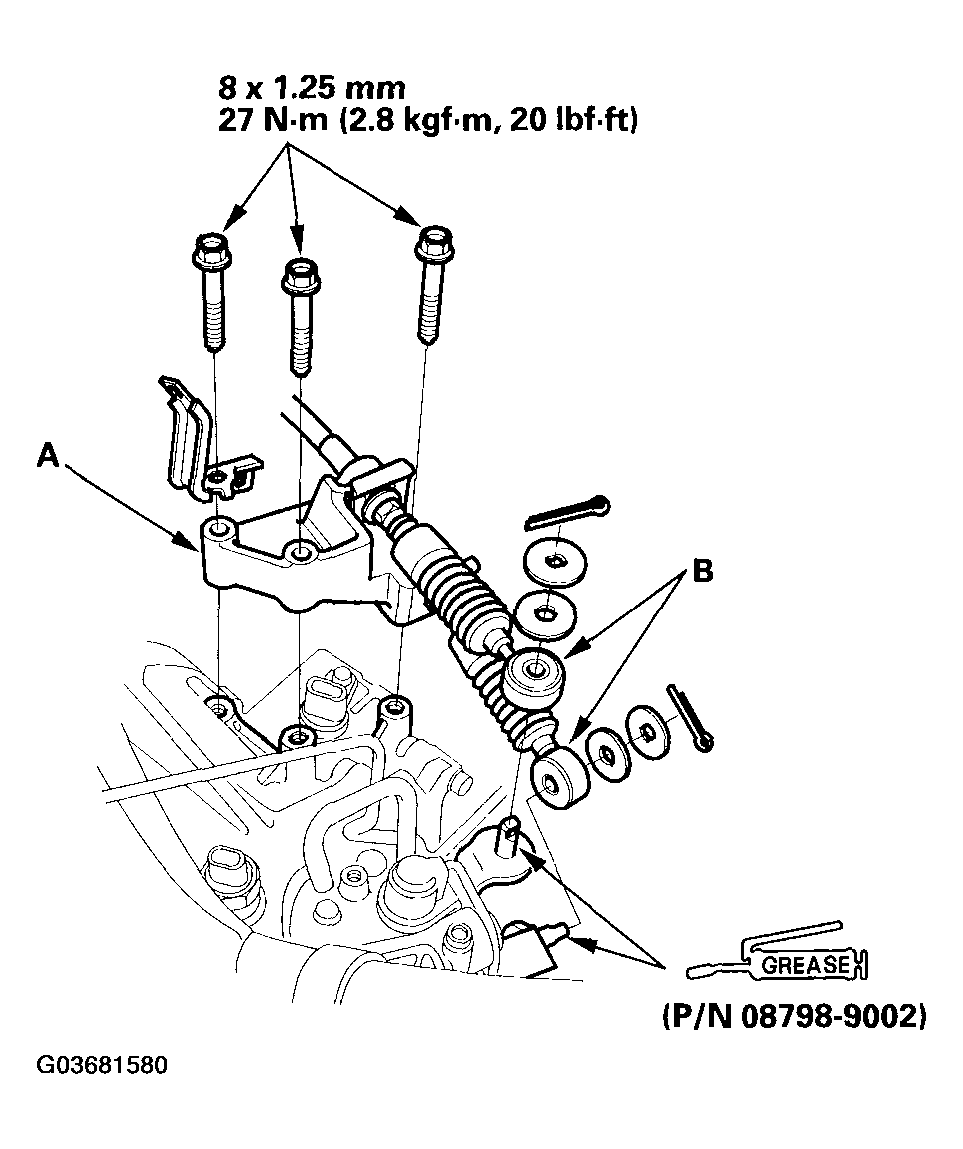

14. Install the cable bracket (A) and cables (B).
    Fig 11: Identifying Tightening Torque Of Cable Bracket Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Apply a light coat of super high temp urea grease (P/N 08798-9002), and install new cotter pins.

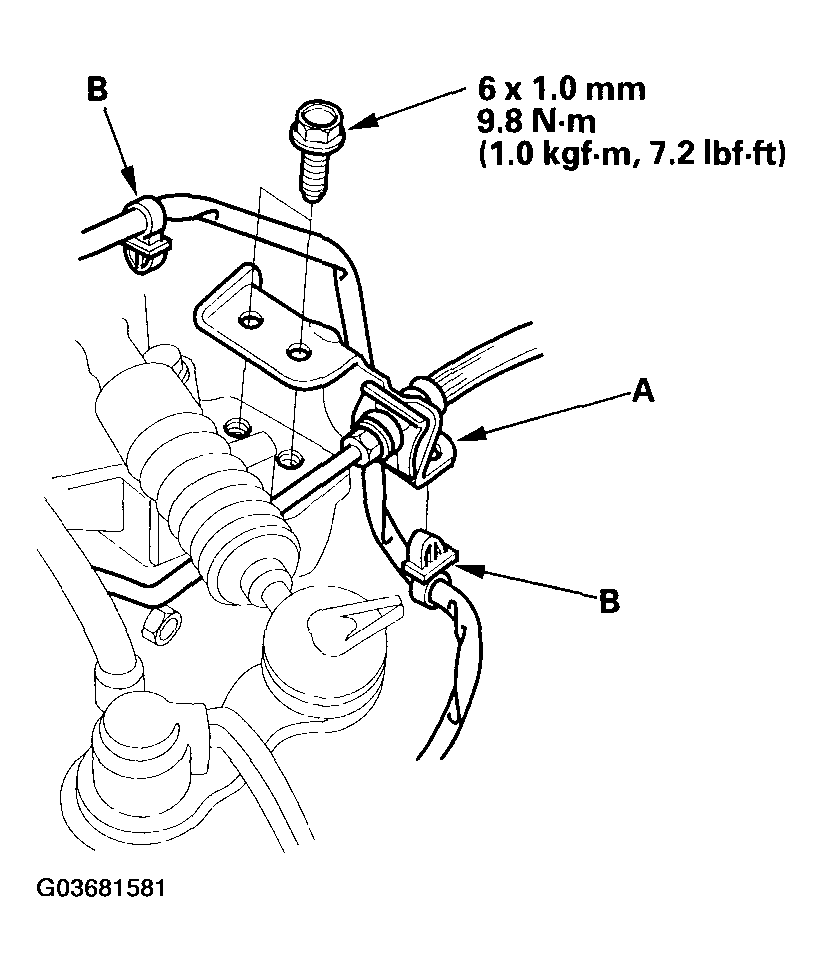

16. Install the clutch line bracket (A) and wire harness clamps (B).
    Fig 12: Identifying Tightening Torque Of Clutch Line Bracket Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

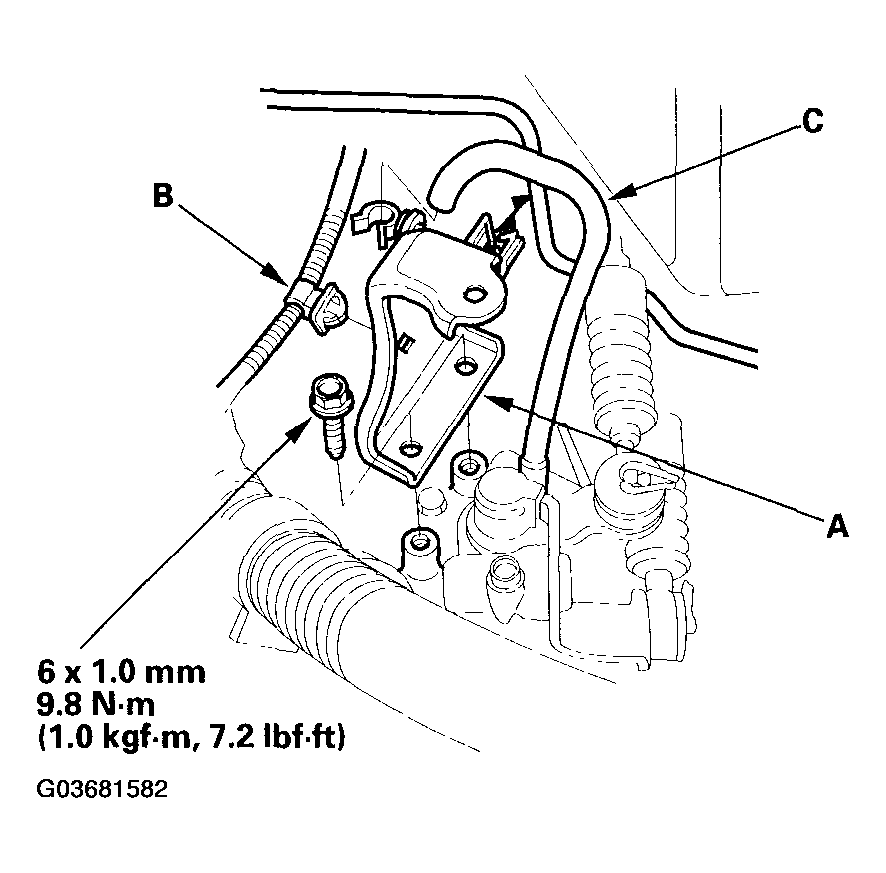

17. Install the air cleaner bracket (A), then install the harness clip (B) and breather tube (C).
    Fig 13: Identifying Tightening Torque Of Air Cleaner Bracket Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

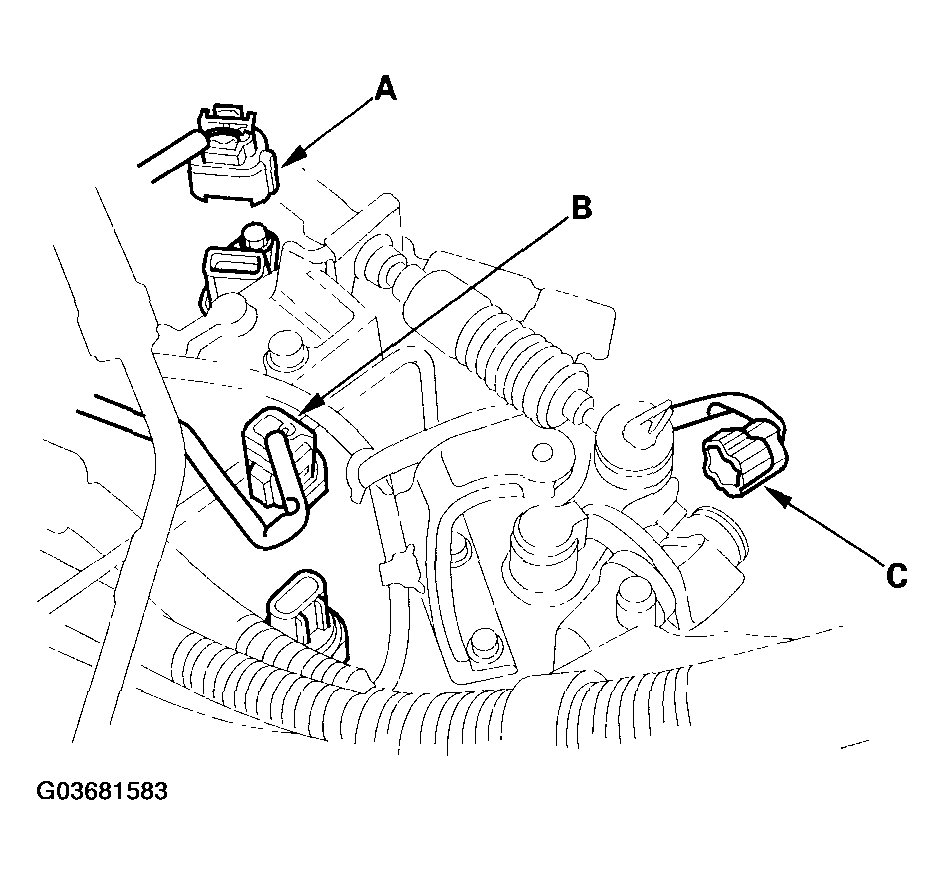

18. Connect the vehicle speed sensor (VSS) (A), backup light switch (B), and neutral position switch (C) connectors.
    Fig 14: Connecting Vehicle Speed Sensor (VSS), Backup Light Switch, And Neutral Position Switch Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

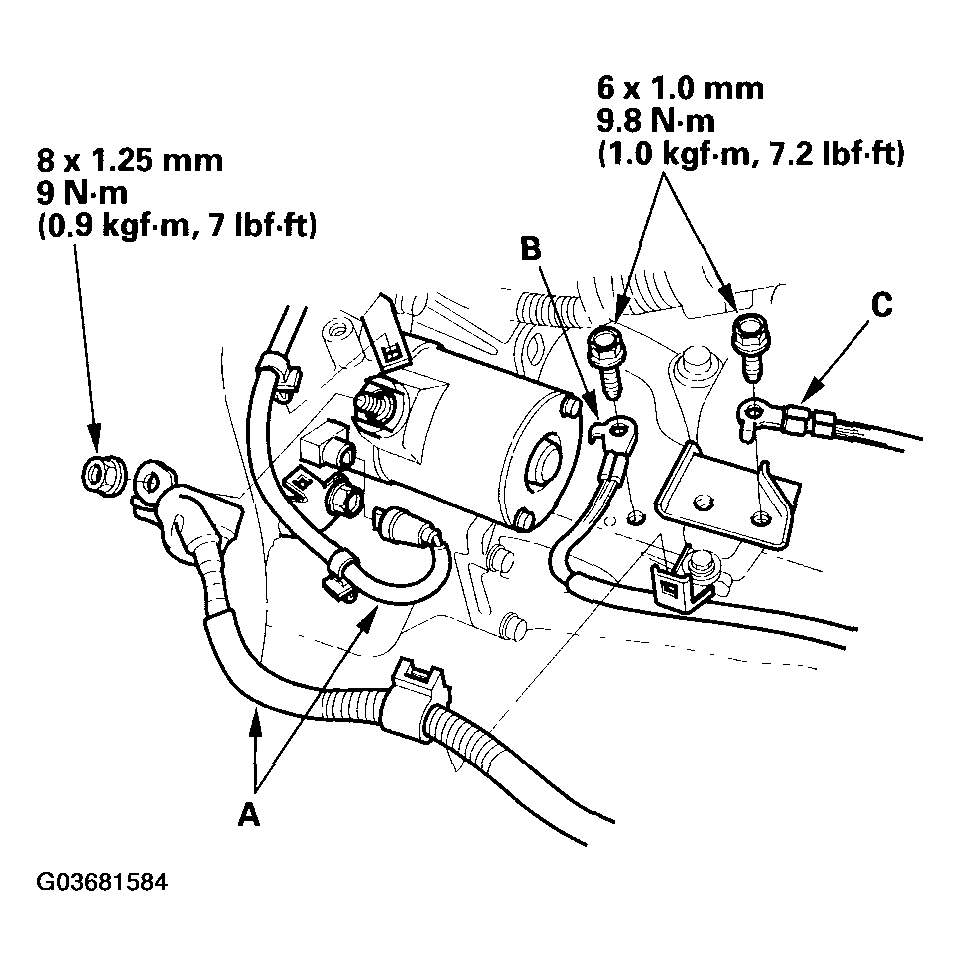

19. Connect the starter motor cables (A), transmission ground cable (B), and engine ground cable (C).
    Fig 15: Identifying Tightening Torque Of Starter Motor, Transmission Ground And Engine Ground Cables Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
20. Refill the transmission fluid (see GEARSHIFT MECHANISM REPLACEMENT ).

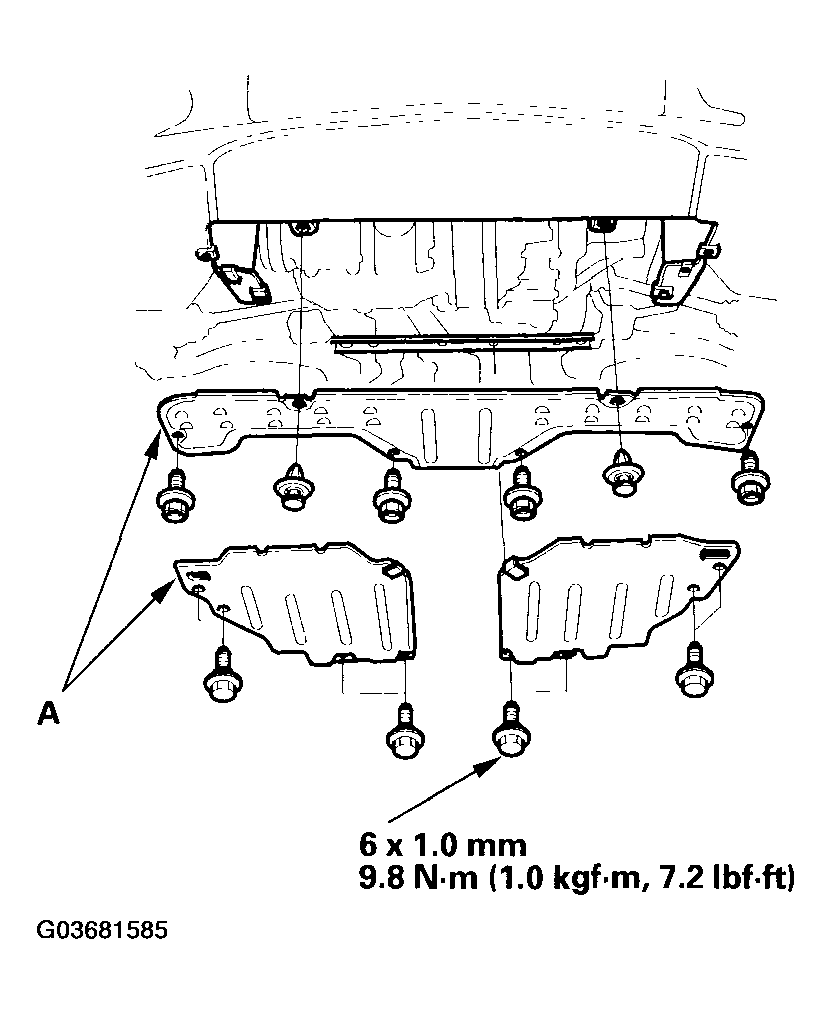

21. Install the splash shields (A).
    Fig 16: Identifying Tightening Torque Of Splash Shield Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the engine cover, intake air duct, and air cleaner housing (see step 35 on ENGINE ASSEMBLY ).
23. Install the battery. Clean the battery posts and cable terminals with sandpaper, then assemble them, and apply grease to prevent corrosion.
24. Turn the battery module switch ON.
25. Check the clutch operation.
26. Check the front wheel alignment (see WHEEL ALIGNMENT ).
27. Enter the radio anti-theft code, then enter the audio presets, and set the clock.
28. Test-drive the vehicle.
