Shift Lock Stop/Shift Lock Stop Cushion Replacement

NOTE: Do not wipe off the special grease applied to the area of the shift lever marked with an asterisk (*) when you disassemble or assemble it.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lever knob and the shift lever knob cover (see SHIFT LEVER KNOB AND SHIFT LEVER KNOB COVER REPLACEMENT  ).
  3. Remove the A/T gear position indicator panel light socket (A) from the indicator panel (B).

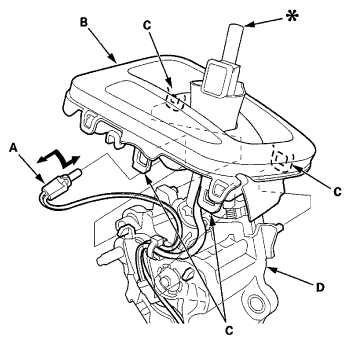

    Fig 1: Locating A/T Gear Position Indicator Panel Light Socket And Indicator Panel
    G06969281Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the A/T gear position indicator panel assembly by expanding the four lock tabs (C) from the shift lever assembly (D).
  5. Remove the harness wire tie (A), and disconnect the D4 switch connector (B).

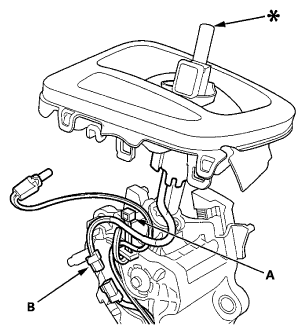

    Fig 2: Locating Harness Wire Tie And D4 Switch Connector
    G06969282Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the A/T gear position indicator panel assembly (A), the shift lever ring (B), and the shift D4 switch (C) from the shift lever assembly.

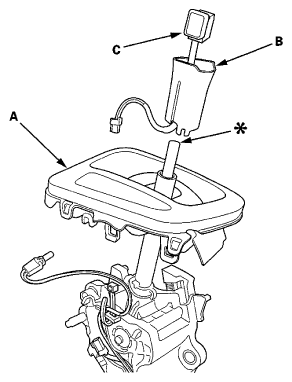

    Fig 3: Locating A/T Gear Position Indicator Panel Assembly, Shift Lever Ring And Shift D4 Switch
    G06969283Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the shift lock release (A) and the release spring (B) by pressing the lock tab (C).

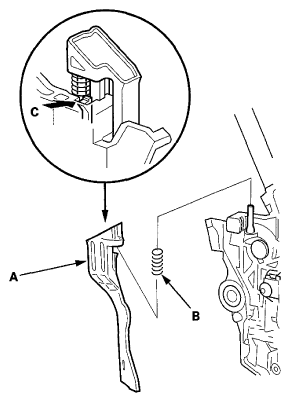

    Fig 4: Locating Shift Lock Release, Release Spring And Lock Tab
    G06969284Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. While releasing the lock tab (A) using a screwdriver, insert a pin (B) into the guide hole (C) and push the shift lock solenoid (D) out.

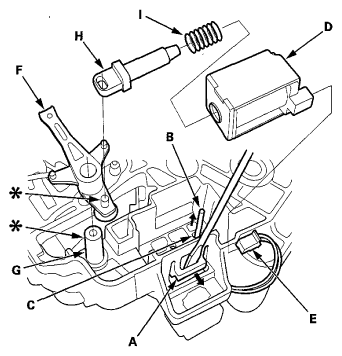

    Fig 5: Releasing Lock Tab Using Screwdriver
    G06969285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Disconnect the shift lock solenoid connector (E).
  10. Remove the shift lock stop/stop cushion (F).
  11. Replace the shift lock stop/stop cushion.
  12. Install the shift lock stop/stop cushion over the mounting pin (G) on the shift lever assembly.
  13. Connect the shift lock solenoid connector.
  14. Assemble the shift lock solenoid, the solenoid plunger (H), and the plunger spring (I).
  15. Install the shift lock solenoid by aligning the joint of the solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.
  16. Install the shift lock release spring and the shift lock release.
  17. Install the A/T gear position indicator panel assembly (A), the shift lever ring (B), and the D4 switch (C) on the shift lever assembly.

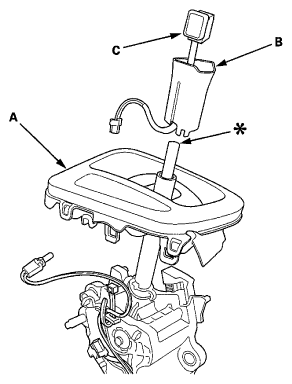

    Fig 6: Locating A/T Gear Position Indicator Panel Assembly, Shift Lever Ring And D4 Switch
    G06969286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Connect the D4 switch connector (A). Route the D4 switch harness (B) and the A/T gear position indicator panel light harness (C) along with the shift lever assembly, and tie the harnesses at the guide (D) with the harness wire tie (E).

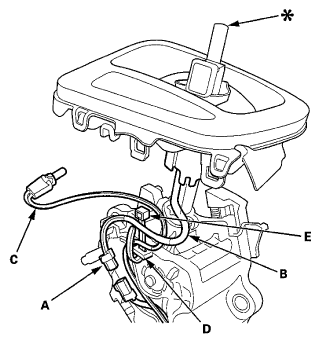

    Fig 7: Locating D4 Switch Connector, D4 Switch Harness, A/T Gear Position Indicator Panel Light Harness And Guide
    G06969287Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install the A/T gear position indicator panel assembly (A) on the shift lever assembly by aligning the four lock tabs (B).

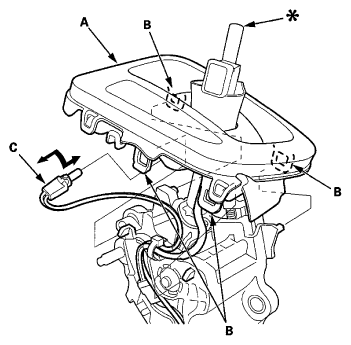

    Fig 8: Locating A/T Gear Position Indicator Panel Assembly And Lock Tabs
    G06969288Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Install the A/T gear position indicator panel light socket (C) in the indicator panel.
  21. Install the shift lever knob and the shift lever knob cover (see SHIFT LEVER KNOB AND SHIFT LEVER KNOB COVER REPLACEMENT  ).
  22. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
