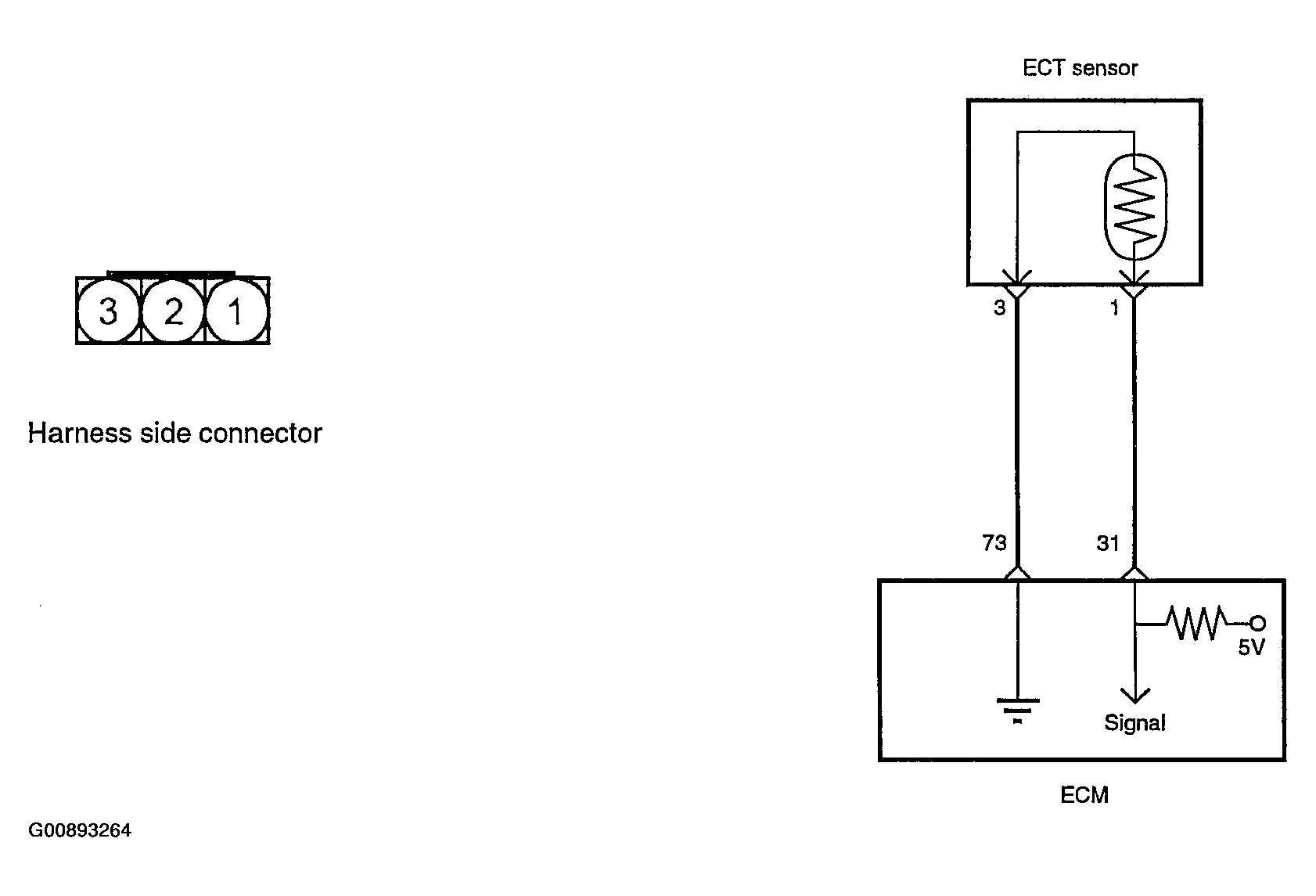

Home › Hyundai › 2004 › Tiburon Base, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (2.0L) › DTC Troubleshooting Procedures › DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem › Schematic Diagram
