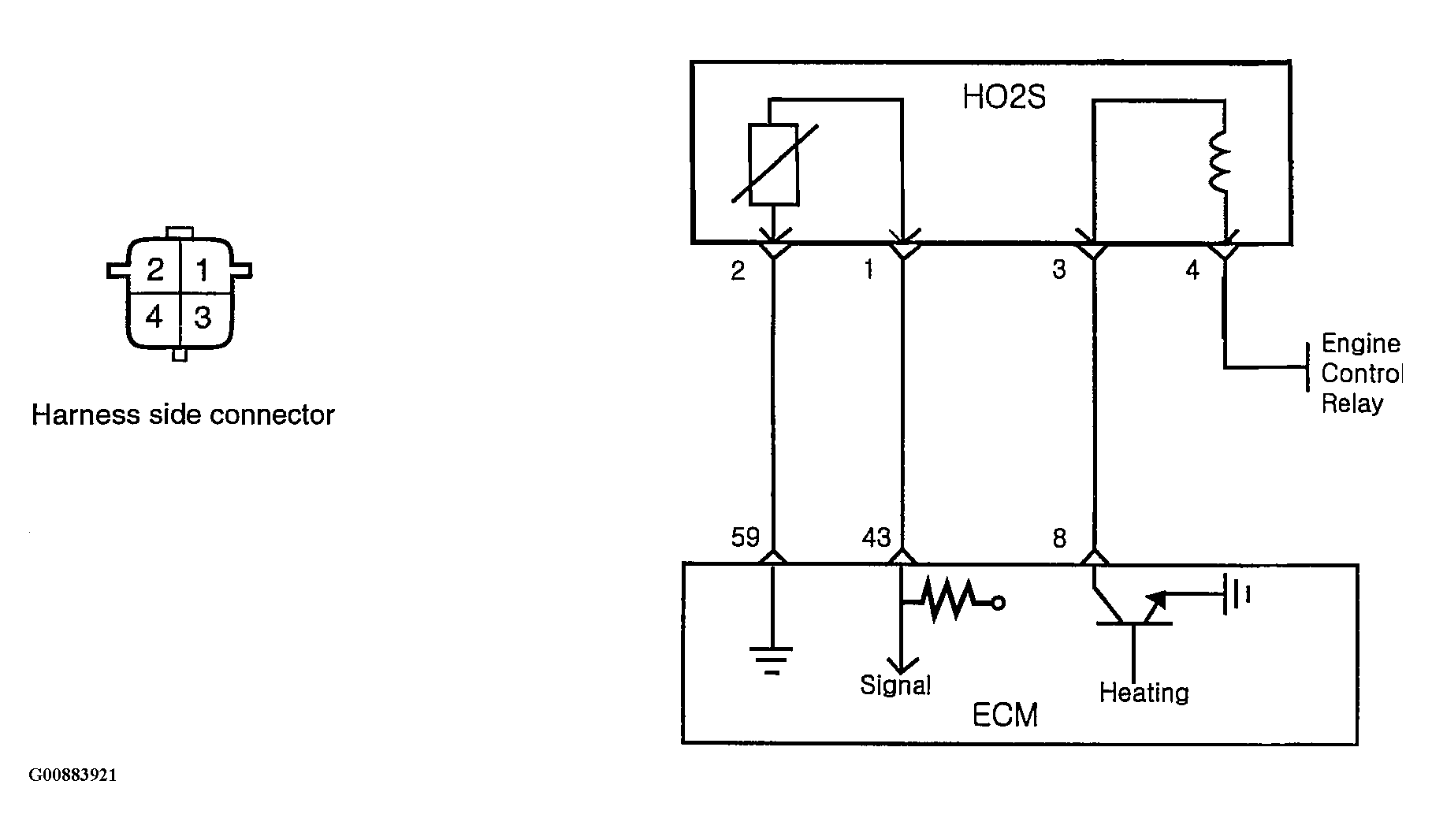

Home › Hyundai › 2004 › Tiburon Base, Standard › Repair and Diagnosis › Engine Performance › Fuel System (2.0L) › DTC Troubleshooting Procedures › DTC P0130: O2 Sensor Circuit Malfunction (Bank 1, Sensor 1) › Schematic Diagram
