Fuel Tank Pressure Sensor (Ftps)
›
Description
›
Schematic Diagram
Schematic Diagram

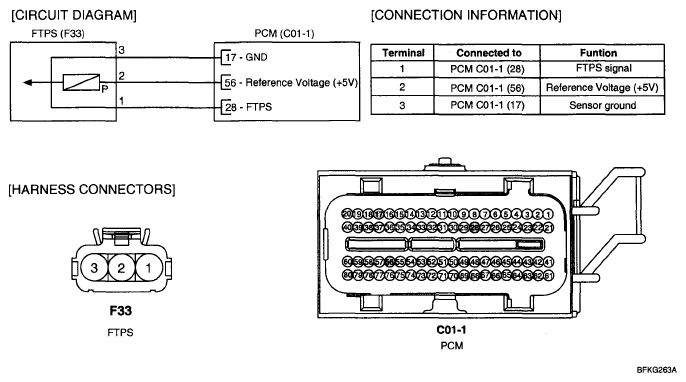

Fig 1: Fuel Tank Pressure Sensor (FTPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
