Components and Components Location: Components

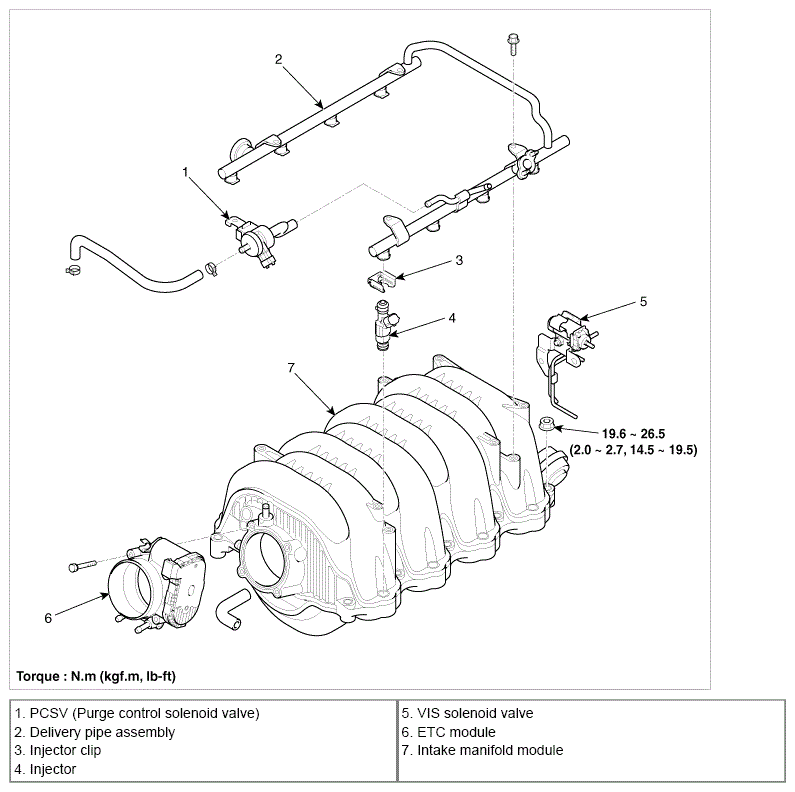

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G08818942Courtesy of HYUNDAI MOTOR AMERICA
