Components And Components Location: Components

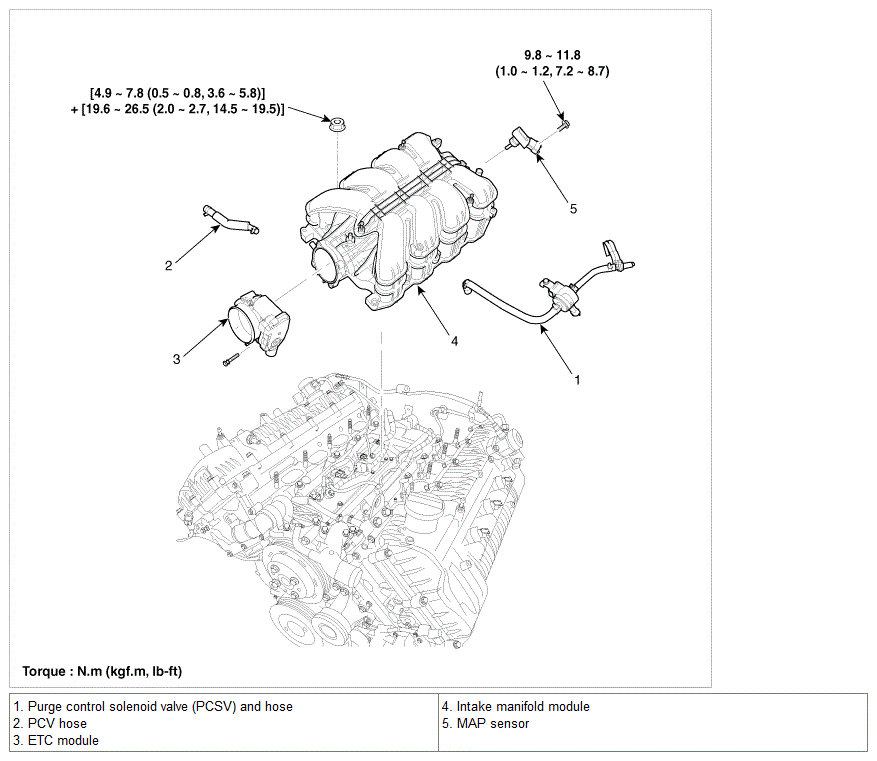

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G08822606Courtesy of HYUNDAI MOTOR AMERICA
