Circuit Diagram

(M/T)

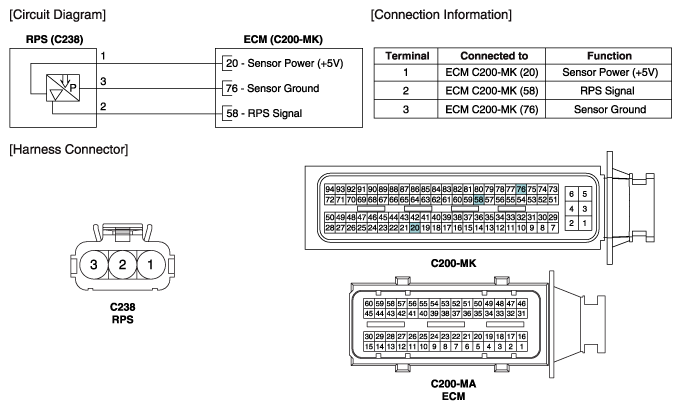

Fig 1: RPS Circuit Diagram (M/T)
G10611505Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

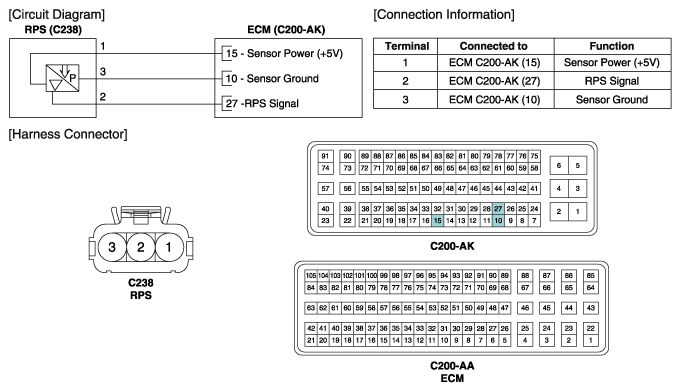

Fig 2: RPS Circuit Diagram (A/T)
G10611506Courtesy of HYUNDAI MOTOR AMERICA
