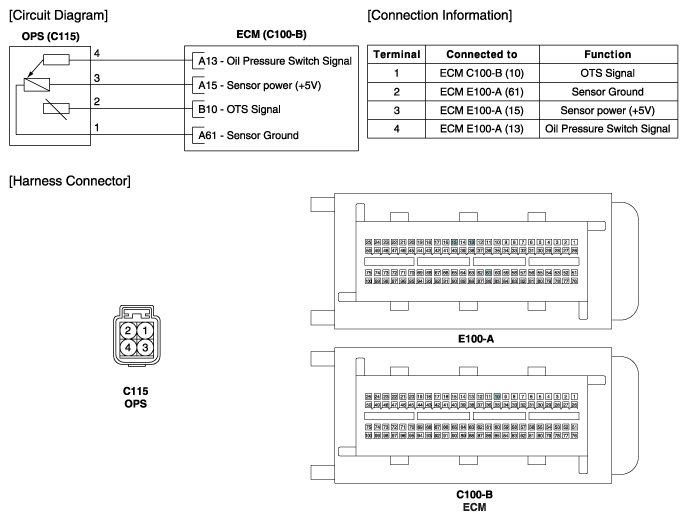

Home › Hyundai › 2016 › Genesis 3.8, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Oil Pressure Sensor (OPS) › Schematic Diagrams › Circuit Diagram
