Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.0L › Oil Pan › Components And Components Location › Components

Components And Components Location: Components

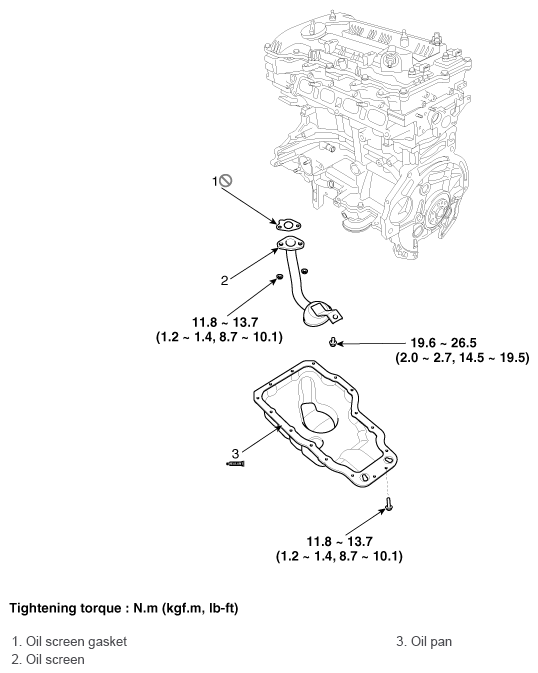

Fig 1: Oil Pan Components With Torque Specification
G12024665Courtesy of HYUNDAI MOTOR AMERICA
